HOMEPRODUCTELECTRONICSR35 GT-R Sub Control System
R35 Sub Control System is an engine management system package based on F-CON iS for NISSAN R35 GT-R.
- DISCONTINUED -
The system includes F-CON iS, OSC for R35, VALCON II and Plug & Play Harness.
- F-CON iS and VALCON II have data for GT600 Sport Package + INTERCOOLER KIT + LEGAMAX Premium MUFFLER (JDM).
- F-CON iS, OSC for R35 and VALCON II have the special logo for R35 Sub Control System.
Functions
- Fuel and ignition control with the piggy back system and valve timing adjustment function with VALCON II.
- With OSC for Ｒ35, fuel setting in close-loop area of stock ECU can be changed.
Features
- With a Plug & Play Harness, all F-CON iS, OSC for R35 and VALCON II are installed without any modification.

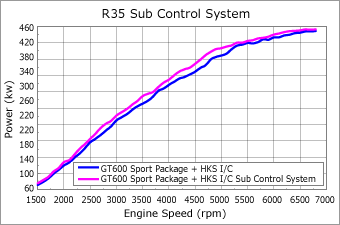

- Engine performance will be enhanced for all rpm range with preprogrammed data for the specification of GT600 Sport Package + INTERCOOLER KIT + LEGAMAX Premium MUFFLER (for JDM vehicle).
Installation
- The Plug & Play Harness is connected between stock ECU and vehicle harness to install F-CON iS, VALCON II and OSC for R35.
Remarks
About the preprogrammed data:
- Although the base data is preprogrammed, fine setting for each vehicle is required.
- Stock air flow meters need to be installed.
- To set higher boost level than R35 GT Package, engine internal parts may need to be changed.
- Boost controller in R35 GT Package is required to increase boost level.
F-CON iS Unit version is Ver.1.22. Use PowerWriter Ver.1.14 or later.
Components
- F-CON iS (w/base data)
- VALCON II (w/base data)
- VALCON II ADAPTER
- OSC
- Plug & Play Harness
