GT SUPERCHARGER Universal Kit

[GT SUPERCHARGER Universal Kit]

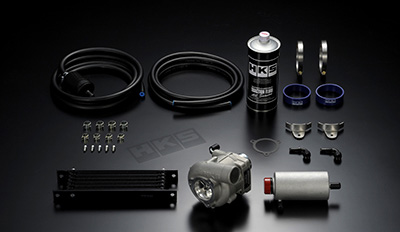

It is a kit that has main unit of GT SUPERCHARGER and the traction oil related parts. Please use this kit for a vehicle that’s not in the Vehicle Specific Kit.


COMPLETE PARTS

●Main unit

●Traction Fluid I 800ml

●Oil cooler

●Hose Assy for Traction Fluid×2

●Oil Tank

●Others


(* Pulley is not included.)

MODEL MAX IMPELLER
SPEED
MAX PRESSURE
RATIO
MAX
FLOW
POWER
RANGE
DRIVE UNIT
RATIO
UNIT
WEIGHT
rpm - m3/min ps - kg
GTS4015HP 110,000 2.6 8.1 100~150 9.875 3.5
GTS7040 110,000 2.5 22 200~400 9.444 4.2
GTS7040L 110,000 2.5 22 150~400 9.444 4.2
GTS8550 100,000 2.6 26 250~500 9.368 5.3
GTS8555 100,000 2.6 28 300~550 9.368 5.3


Other Parts

These are the other supporting parts for installation for GT Supercharger Universal Kit. The parts needed would be different for each vehicle and the also might have to modify the parts.

STD BLOW OFF VALVE


PULLEY Φ85

PULLEY Φ85

PULLEY Φ70

PULLEY Φ70

PULLEY Φ60

PULLEY Φ60


BLOW OFF VALVE FLANGE

BLOW OFF VALVE FLANGE

SUCTION FLANGE

SUCTION FLANGE

Braket GTS8550/7040/4015HP

Braket GTS8550/7040/4015HP
