[HIPERMAX III]
Street sport standard model with new generation ride comfort and driving performance.
The standard model as steet use suspension targeted for sport radial tires. With HKS' single tube technology, driving performance and ride comfort are highly balanced.
HDP (Hiper Digressive Piston) and HLP(Hiper Linear Piston) large capacity pistons enhance driving performance. The newly designed rubber upper mount eliminates noise and improves ride comfort. (Inverted type damper has pillow ball upper only). In addition, pillow ball upper mount is selectable.
* Discontinued.

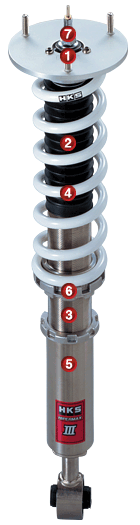

1.Newly designed reinforced rubber upper mount
Reinforced rubber upper mount for street use. It prevents noise and durable. (Pillow ball upper mount is used for some vehicles.)
2.Dust boots for both inverted and normal types
It protects shaft from incoming stones.
3.Single tube type / Ride height adjustable lower bracket
Single tube type for high driving performance and ride height adjustable lower bracket to have best styling. These mechanism enables smooth & comfortable ride as well as ideal styling.
4.φ65 Straight spring
Proper spring rate is selected for each vehicle model. It is strong against performance drop and metal fatigue.
5.Large flow capacity piston
The large flow capacity piston produces linear damping force in proporition to piston speed. It enables natural handling.
6.Aluminume lock nut, ride height nut
Lightweight and anti-corrosion.
7.30 steps damping force adjustable mechanism
30 steps adjustable mechanism enables wide adjustment range.
8. 2 Years/40,000km Limited Warranty
The enhanced durability of suspension components allows 2 years/40,000km warranty.
| Features | For street use. Reinforced rubber upper mount. Special oil. Pillow ball upper mount is selectable. (Pillow upper only for inverted type.) |
| Structure | Single tube type |
| Ride height adjustment mechanism |
Height adjustable lower bracket |
| Damping force adjustment mechanism |
30 steps adjustment function |
| Case | Nickel coating |
| Spring | Straight *Special spring of rear suspension required for some vehicles. |
