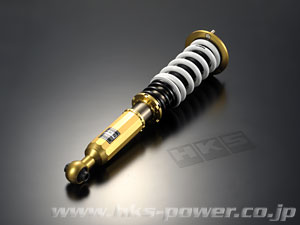

[HIPERMAX M-1]
Magnificent suspension kit designed to combine flexible ride with enhanced handling performance.
HIPERMAX M-1 is newly designed as a magnificent suspension kit combining the flexible ride characteristics with enhanced handling capability on the highway. The vehicle movement with this suspension kit is also flexible on the street. The vehicle height with this suspension kit is arranged to be well in an inconspicuous way.
* Discontinued.

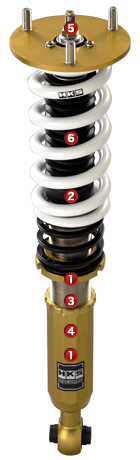

1.Lightweight Components
Polygonal bracket, locknut, and ride height adjuster are made with Aluminum to reduce the weight of the springs. (For the front damper of R35, these parts are made with steal to ensure the rigidity.)
2.New Design M Shaft
M Shaft was newly designed to ensure more flexible ride characteristics. Also, Damper internal oil pressure characteristics were optimized. Precise damping force is chosen from the stroke range to ensure flexible and reliable ride comfort.
3.Mono Tube Design
A mono-tube suspension structure is utilized to ensure high driving performance.
4.Large Flow Amount Piston
Large flow amount pistons generate linear damping force proportional to piston speed. This characteristic can achieve more comfortable handling.
5.30-way Adjustable Dampening
30-way adjustable dampening enables settings for many different driving conditions.
6.Dust Boot
Dust Boots prevents damage to the shaft by pebbles.
*2 years / 40,000km Warranty
Enhanced durability of components enables 2 years/40,000km warranty.
| Features | Highway & Street Use New Design M Shaft, Polygonal Aluminum Bracket, Special Oil. |
| Structure | Single tube type |
| Height adjustment mechanism |
Shock-body Length Adjustable |
| Damping force adjustment mechanism |
30-way Adjustable Dampening |
| Case | Steal x Electroless Nickel Plating |
| Spring | Short Coil Spring |
