- ＜Product Basic Structure＞

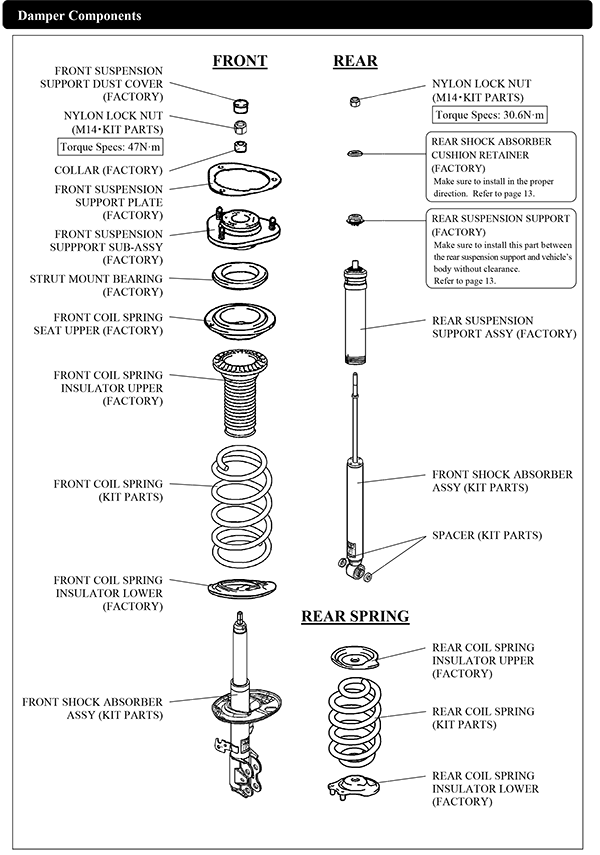

- ●Single Tube Damper Assembly
- ●Special Low-down Style Spring
- ※The stock upper mounts are used.
|
 |
Features
- Utilizing the stock suspension structure for Hipermax G series provides a better durability and ride quality than its original even after lowering vehicle’s height.
- The front stock design inverted mono tube damper delivers high rigidity and reliable handling performance.
- Setting was performed to ensure better ride quality and comfort so a driver won't be tired even in long time driving.
|
 |
Kit Parts |
 |
| VEHICLE |
MODEL |
ENGINE |
YEAR |
SPRING RATE
[N/mm (kgf/mm) ] |
FREE LENGTH(mm) |
VEHICLE'S HEIGHT
Default(High-Low) |
CODE NO. |
UPPER
MOUNT |
UPPER MOUNT
CHANGE BEFORE
SHIPMENT |
SPRING RATE
CHANGE BEFORE
SHIPMENT |
Remarks |
| Noah |
ZRR80W(G)
ZWR80G |
3ZR-FAE
2ZR-FXE |
14/01～ |
F=28(2.9)
R=60(6.1) |
Specially-developed |
F=-30
R=-35 |
80260-AT005 |
F=Stock
R=Stock |
N/A |
F=N/A
R=N/A |
The vehicle data is based on a 2WD gasoline car. |
| Voxy |
| Esquire |
14/10～ |
|
