上質を追い求める人のために チューニングパーツの意義「性能>コスト」と車両の素性を生かす設計「純正形状」の融合。

HIPERMAX G  ハイパーマックスG


  • <Product Basic Structure>
  • ●Single Tube Damper Assembly
  • ●Special Low-down Style Spring
  • ※The stock upper mounts are used.
HIPERMAX G  ハイパーマックスG

Features

  • Utilizing the stock suspension structure for Hipermax G series provides a better durability and ride quality than its original even after lowering vehicle’s height.
  • Compared to the early model, the stock suspension has been softer, but the ride comfort when driving on the street or the driving stability and pleasure on the winding road and under high speed driving may not be satisfactory for a driver.
  • Hipermax G reduced the uncomfortable vibration in low speed range to improve the ride comfort. With the characteristics of the single tube and high rigid inverted structure, the stable maneuverability is also improved.

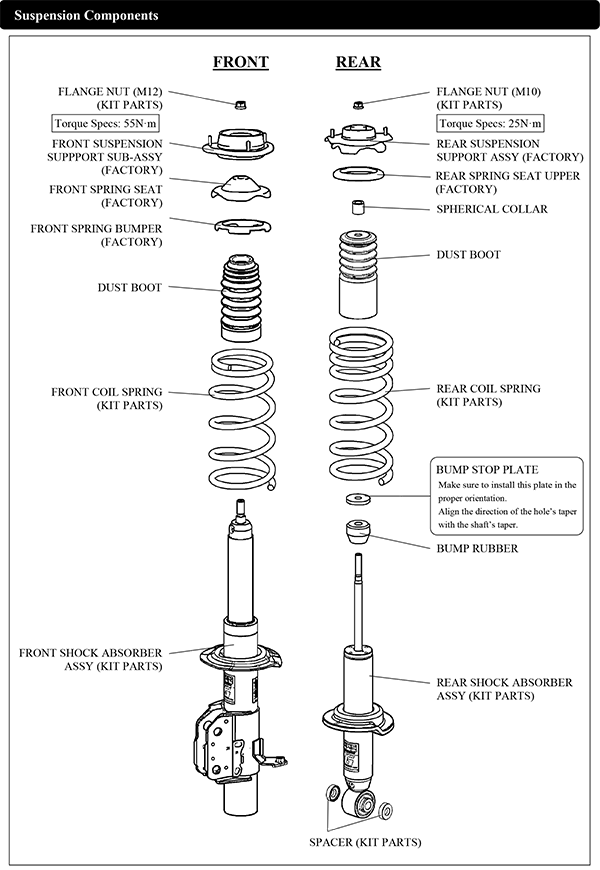

Kit Parts

商品構成図
VEHICLE MODEL ENGINE YEAR SPRING RATE
[N/mm (kgf/mm) ]
FREE LENGTH(mm) VEHICLE'S HEIGHT
Default(High-Low)
CODE NO. UPPER
MOUNT
UPPER MOUNT
CHANGE BEFORE
SHIPMENT
SPRING RATE
CHANGE BEFORE
SHIPMENT
Remarks
86(Late Model)

ZN6

FA20 16/08~ F=28(2.9)
R=45(4.6)
Specially-developed F=-15
R=-16
80260-AT007 F=Stock
R=Stock
N/A F=N/A
R=N/A



BRZ(Late Model) ZC6
