HIPERMAX SERIES OPTION PARTS

[HIPERMAX Series Option Parts]

HIPERMAX Series option parts

Wrench Set (2 pcs)

Universal Bracket
(2 pcs)

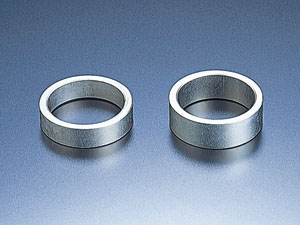

Installation Spacer
(2 pcs)

Spring Set (2 pcs)


Dustboots Set (Black)
(2 pcs)

Dial Set for Inverted Type (Gold) (2 pcs)

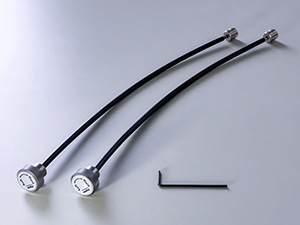

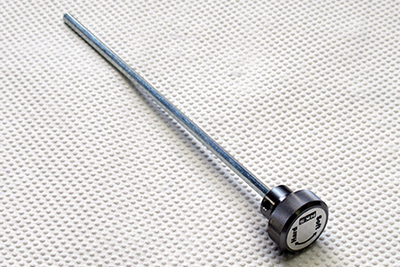

Adjustment Cable Set
(2 pcs)

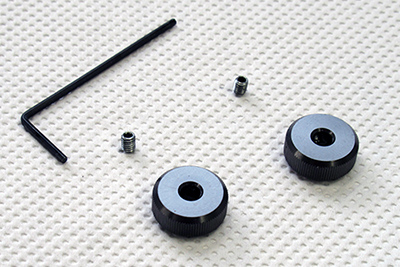

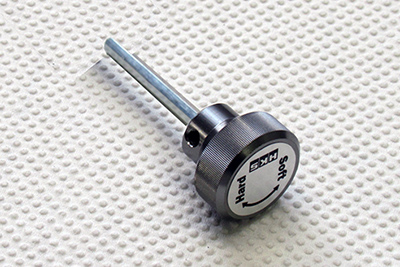

Adjustment Dial (1 pcs)

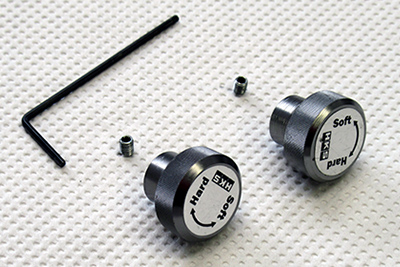

Adjustment Knob Set for Inverted Strut Type
(2 pcs)

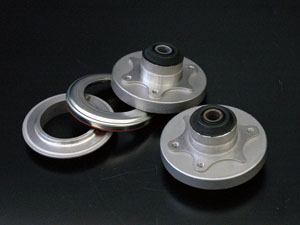

Rubber Upper Bearing Set for Inverted Strut Type (2 pcs)

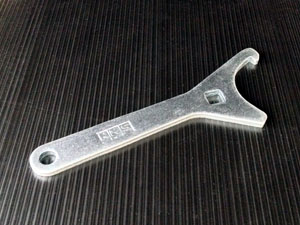

Damper Hook Wrench
(1 pcs)

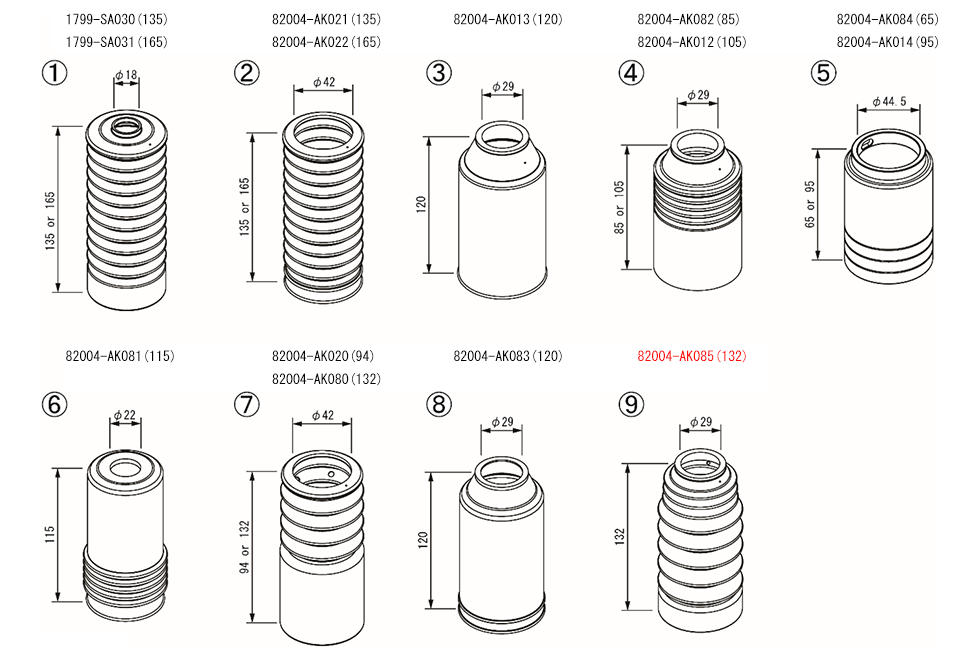

DUST BOOTS SET

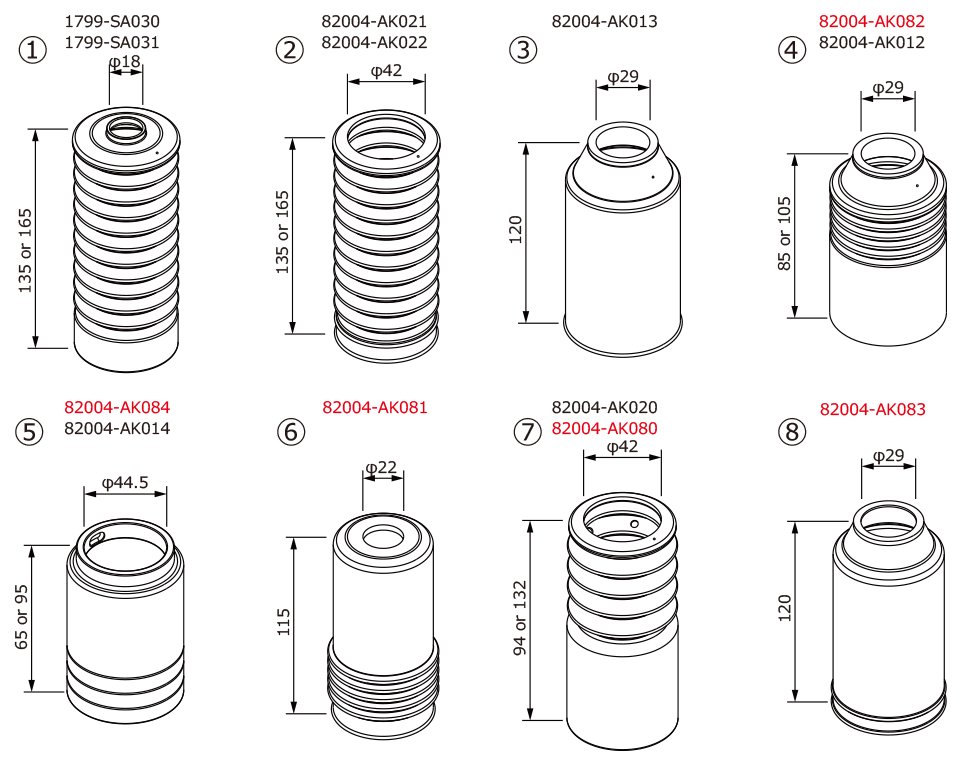

Installation of these dust boots prevents damage to the damper from stepping-stones and enhances durability of the damper.

THRUST WASHER

For easier ride height adjustment of a normal coilover damper, insert this washer between the spring and lower seat.

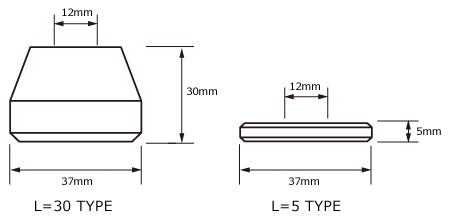

BUMP RUBBER (2 pcs SET)




SPHERICAL BEARING(2 pcs set)

The spherical bearing is press-fit to the spherical body. Use this bearing assembly when a pillow ball of a pillow upper mount is worn out as a repair part. Easy bolt-on installation.

* NOTE :
Select correct one referring to the application chart below. The shape must be the same as the one previously installed.

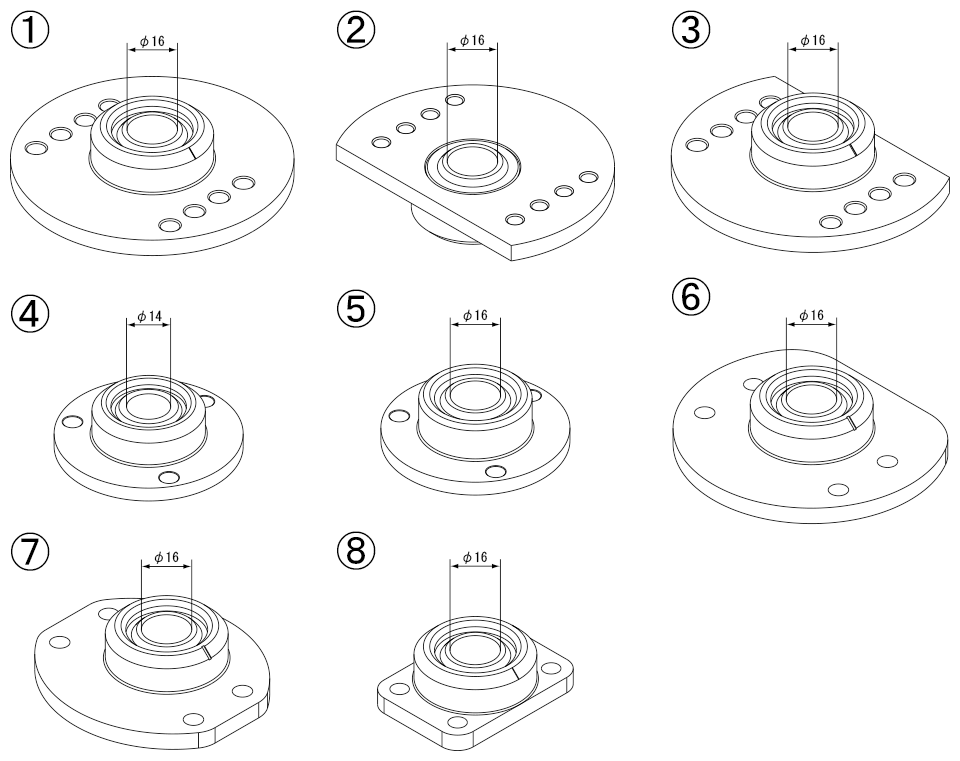

SPERICAL BEARING ASSY Application Chart
  Product Code No. Price Remarks
(1) SPHERICAL Inverted Adjustable type Type1 82004-AK004   Round shape, 2 for 1 set
(2) SPHERICAL Inverted Adjustable type Type2 82004-AK005   Half round shape, M5 8 screw holes, 2 for 1 set
(3) SPHERICAL Inverted Adjustable type Type3 82004-AK006    Half round shape, 8 holes(φ5.5), 2 for 1 set
(4) SPHERICAL Normal Type 82004-AK007    Bearing diameter φ14, 2 for 1 set
(5) SPHERICAL Inverted Fixed Type 82004-AK008    Inverted-type rear damper, bearing diameter φ16, 2 for 1 set
(6) SPHERICAL Inverted Adjustable type Type4 82004-AK009   Square shape, 8 holes(φ5.5), 2 for 1 set

■HIPERMAX MAX IV SP
(1) ZN6(F), CT9A(F), CZ4A(F), GDB(E-G)(F), GRB(F)
(2)
(3) S15(F)
(4) ZN6(R),S15(R),BNR32(F),BNR32(R),BNR34(F),BNR34(R),R35(F),R35(R),Z33(F),Z33(R),
CT9A(R),CZ4A(R),GRB(R),FD3S(F),FD3S(R)
(5) GDB(E-G)(R)
(6)
■HIPERMAX MAX IV GT
(1) ZN6(F),CP9A(F)
(2)
(3)
(4)
(5)
(6)
■HIPERMAX S-Style X
(1)
(2) #CR30W(F),#NH10W(F),AZR60G(F),ZRR70W(F),E52(F)
(3) NCP31(F),QNC21(F),NHW20(F),ZVW30(F),ZVW4#W(F),GSR50W(F),GGH20W(F),C25(F),
RF3(F),RG1(F),RK1(F)
(4) JZS161(F),JZS161(R),JZS171(F),JZS171(R),JZS177(F),JZS177(R),UCF20(F),UCF20(R),
UCF30(F),UCF30(R),GRS18#(F),GRS18#(R)
(5)
(6)
■HIPERMAX D'
(1)
(2)
(3)
(4) JZX100(F),JZX100(R),JZX110(F),JZX110(R),S13(R),S14(R),S15(R)
(5)
(6)
