POWER EDITOR VEHICLE SPECIFIC KIT
COPEN
Explanation of the product Application chart
COPEN LA400K

Code No. 42018-AD001










Power Editor is the next generation boost controller that enables the boost pressure increase of the vehicles equipped with the electriconic actuators.



■Concept and Features

  • Easy plug&play installation to increase boost pressure.
  • Power Editor comes preset with initial data.

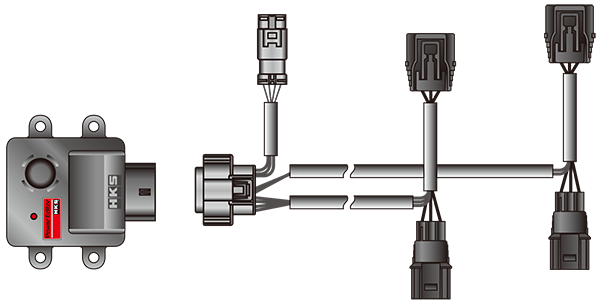

  • Includes by-pass connector to easy revert your vehicle to stock.
  • Easy Writer for Power Editor to edit the data and fine tune boost pressure.





■Easy Writer

  • Easy Writer software is NOT included with the product.
  • Download Easy Writer from HKS website.
  • Please use provided USB cable to connect Power Editor with PC.
    (PC with Windows is require)

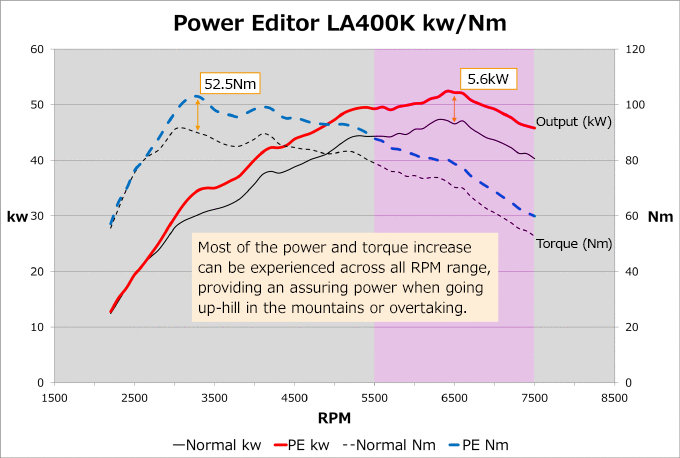

  Stock Power Editor
Power 47.4kW(64.4PS)/6300rpm 52.5kW(71.3PS)/6400rpm
Torque 91.6Nm(9.3kgf・m)/3100rpm 102.9Nm(10.5kgf・m)/3300rpm
Boost 104kPa(1.06kgf/cm2) 110kPa(1.12kgf/cm2)

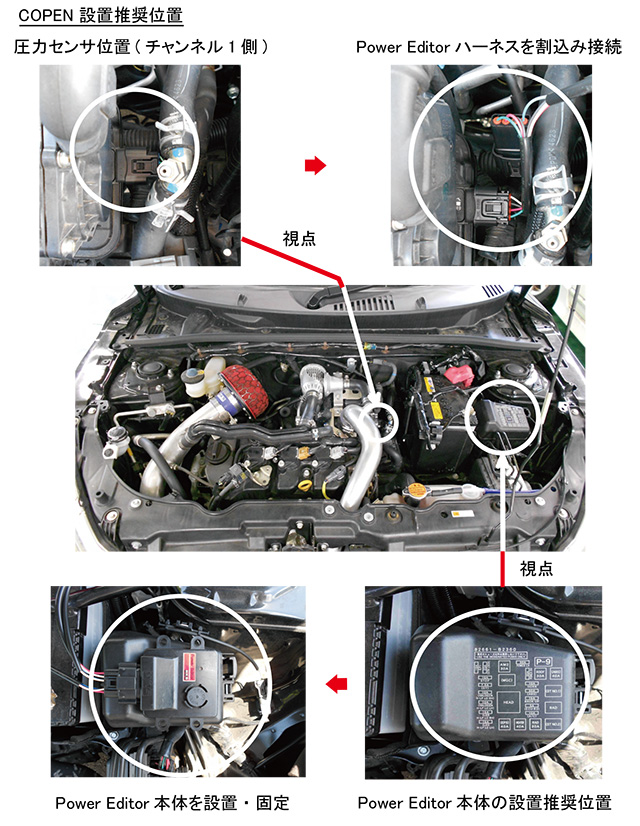

■Recommended Power Editor installation location and Pressure sensor location



■CAUTION

  • Comes preset for Japanese Domestic Market.
  • For ECU with stock data only, reflashed ECU are not supported.





Vehicle Classification Model Engine Model Year Code No. Manual Remarks
COPEN DBA-, 3BA- LA400K KF-VET 14/06 - 42018-AD001 Make to order item
For 5MT.
