POWER EDITOR VEHICLE SPECIFIC KIT
LEVORG
LEVORG VNH

Code No. 42018-AF003





Power Editor is the boost controller that enables the boost pressure increase of the vehicles equipped with electric actuators.












■Outline

  • Easy plug and play installation to increase the boost pressure.
  • Boost pressure increase data is preset to Power Editor.
  • A bypass connector is included. It allows to bypass the unit even after connecting this kit.
  • Easy Writer for Power Editor can edit the preset data.

Note:
Easy Writer is NOT included in the product.

Use provided USB cable to connect to computer.







■Main Function

  • Boost pressure increase for turbo vehicle: Increasing the boost pressure of a stock vehicle.
  • Status indicating LED: Checking the unit status by LED.
  • Edit the boost increase data: Editing the preset data to the user's original data to increase the boost pressure.

Note: PC with Windows is required.




Power Editor用Easy Writer





■Features

  • Install this Power Editor between "pressure sensor" and "pressure sensor harness" can increase the boost pressure.
  • Easy Writer for Power Editor is available to edit the preset data. To edit by Easy Writer, connect Power Editor and PC using the provided USB harness.
  • Using a provided bypass connector instead of the Power Editor to reset the initial data. This can be used to easily check the difference.

Note:
- This product is applicable to a stock vehicles and vehicles equipped with HKS products.
- This product is for a stock ECU data and not available to use with a customized data prepared by a Reflash tool.





■Preset Data

● SUBARU LEVORG (VNH) JDM Spec.

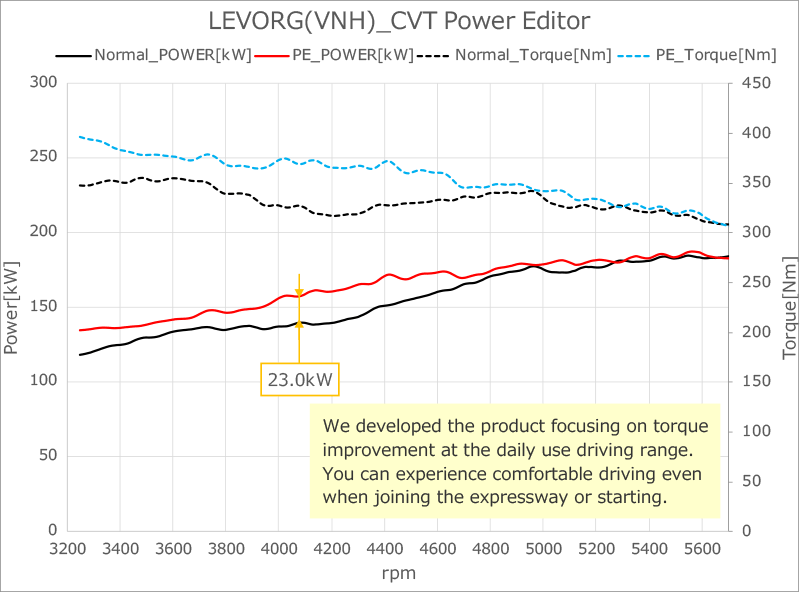

■Performance

  Stock Power Editor
Maximum Variation (Output) - 23.0kW(31.3PS)
Maximum Output 184.8kW (251.3PS)/5550rpm 187.6kW (255.0PS)/5560rpm
Maximum Torque 355.2Nm (36.2kgf・m)/3480rpm 396.8Nm(40.49kgf・m)/3250rpm
Maximum Boost Pressure 102.1kPa(1.04kgf/cm2) 137.3kPa(1.40kgf/cm2)









Vehicle Classification Model Engine Model Year Code No. Manual Remarks
LEVORG VNH FA24(TURBO) 21/11 - 42018-AF003
