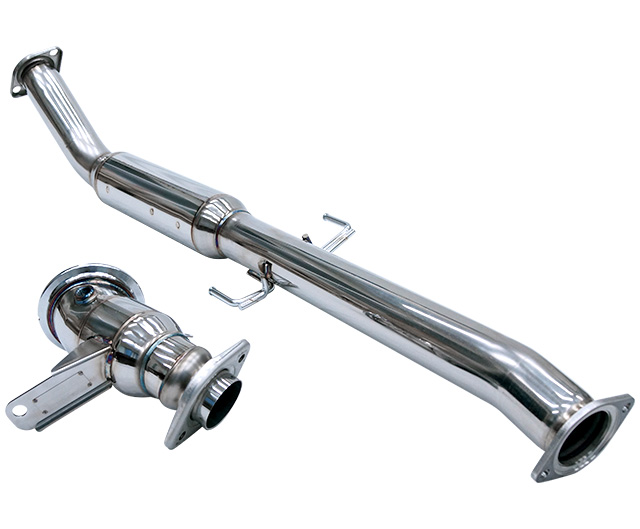

METAL CATALYZER
GR YARIS
GR YARIS GXPA16

Code No. 33005-AT011





Achieves both high exhaust purification performance and significant improvement in exhaust efficiency!







COMPARISON





■Features

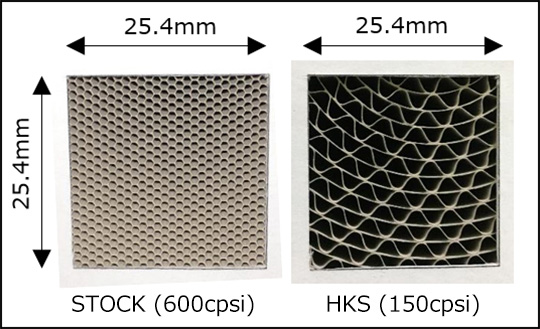

  • Metal catalytic converter has lower exhaust resistance and higher durability by using a low-density metal cell as opposed to the stock ceramic catalyst with a high density cell.
  • Both the first and second catalytic converter have 150-cell metal core, which significantly reduces exhaust resistance.
  • The catalytic converter has minimum size cell with an optimized ratio of precious metals to ensure both purification performance and exhaust pressure reduction, and has obtained an exhaust gas certificate from a third-party organization in Japan.
  • The first catalytic converter can be fitted with a stock heat shield to prevent heat damage*.
  • The pipe diameter is enlarged to D75mm (compared to the stock D70mm).
  • Buffed and polished, all welding was done by TIG welding for best aesthetic appearance.

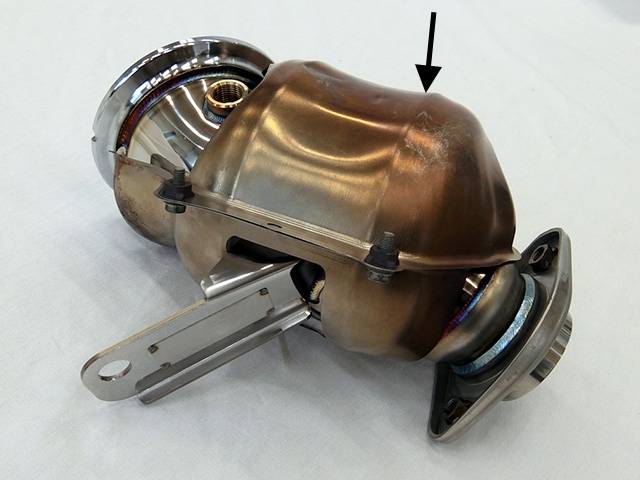

※Can be fitted with a stock heat shield!



  STOCK HKS
1st CAT [cpsi] 600 150
2nd CAT [cpsi] 300 150
Max. Pipe Diameter [mm] 70 74.7
Revving Sound Level [dB] 79 80
Idling Sound Level [dB] 59 59









Output Power and Output Torque



  Max. Output Power
[kW/rpm]
Max. Output Torque
[Nm/rpm]
純正触媒+純正マフラー 204.2/5800 389.5/4300
“METAL CATALYZER” + Stock Exhaust 212.0/5700 409.0/4400
“METAL CATALYZER” + “STM” 218.0/5700 420.3/4300

*NOTE: STM=HKS “Super Turbo Muffler” exhaust (No. 31029-AT006)
*NOTE: Graphs and numerical values are the result of in-house measurements.
 They may vary depending on the vehicle and measuring equipment.

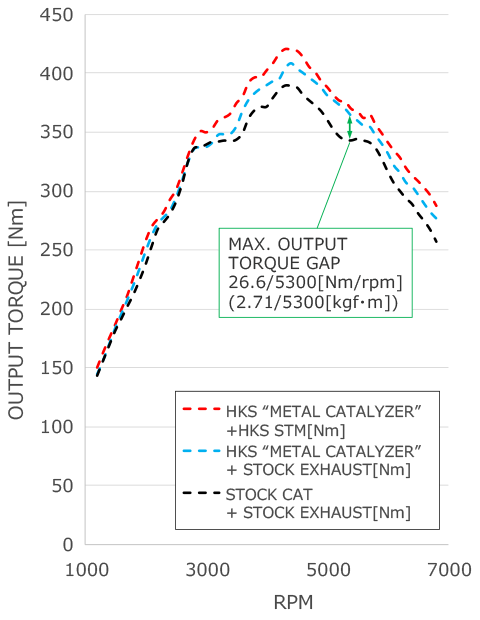

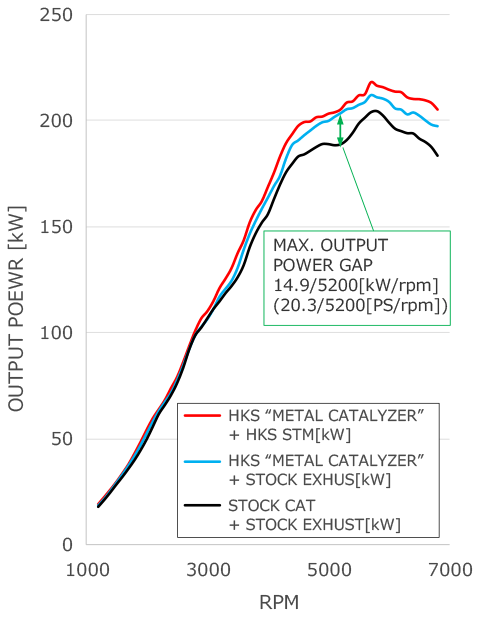

  • The graphs and tables above summarize the measured output of various combinations of catalytic converters and exhausts.
  • Replacement of the catalytic converter alone results in an increase in maximum output power of 7.8[kW] (10.6[PS]) and maximum output torque of 19.5[Nm] (1.99[kgf-m]).
    Max. Output Power Gap:14.9[kW](20.3[PS])/5200[rpm]
    Max. Output Torque Gap :26.6[Nm](2.71[kgf・m])/5300[rpm]
  • Performance gains of 13.8[kW] (18.8[PS]) and 30.8[Nm] (3.14[kgf-m]) in max. output power and torque are achieved when this product is installed with “Super Turbo Muffler” (31029-AT006).





  Revving Sound Level
[dB]
Idling Sound Leve
[dB]
Stock CAT + Stock Exhaust 79 59
“METAL CATALYZER” + Stock Exhaust 80 59
“METAL CATALYZER” + “STM” 88 68

*NOTE: STM=HKS “Super Turbo Muffler” exhaust (No. 31029-AT006)
*NOTE: Graphs and numerical values are the result of in-house measurements.
 They may vary depending on the vehicle and measuring equipment.





  • As for the volume of sound, replacing only the catalytic converter does not make much difference in terms of numerical values, but the sound color will change to a higher pitch.

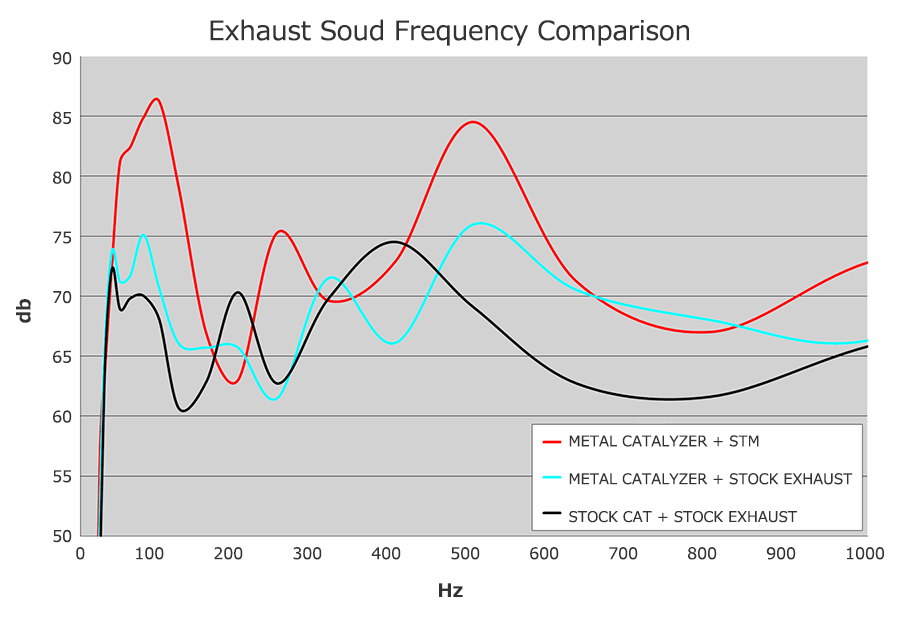

  • In the comparison of frequencies when measuring proximity exhaust noise, the stock catalytic converter peaks at 400Hz, but the HKS METAL CATALYZER peaks at 500Hz, which means HKS catalytic converter produce a higher exhaust sound than the stock catalytic converter.
  • When this product is installed in combination with the Super Turbo Muffler (31029-AT006), the proximity exhaust noise level is 88dB, which is well within the Japanese inspection standard value of 96dB.
  • The sound characteristics are more emphasized at 500 Hz, and at the lower frequencies below 200 Hz, resulting in a more powerful exhaust sound.









Vehicle Classification Model Engine Model Year Pipe Size Code No. Manual Remarks
GR YARIS 4BA- GXPA16 G16E-GTS 20/09 -24/03 φ75 33005-AT011 • An RC-grade vehicle with standard 17-inch tires does not comply with Japanese car inspection regulations.
• Overseas models: The vehicle with the OPF is not confirmed.
• GRMN YARIS does not comply with Japanese car inspection regulations.
• Not compatible with the model made after March 2024.
