MAX IV SP ROADSTER
Explanation of the product Application chart

ROADSTER ND5RC
MAX IV SP Code No. 80250-AZ002




▲The above photo is an item for ND5RC.

The sport model to have a comfortable drive even in the winding road.



Application   Specification
Engine P5-VP,P5-VPR
Model Year 15/05 -
Remarks Remarks: Developed based on Special Package with a manual transmission.

  FRONT REAR
Damping force adjustment 30 steps 30 steps
Base valve - -
Height adjustable lower bracket
Upper mount Spherical bearing Spherical bearing
Inverted/Normal type Normal Normal
Damper/Spring layout Coilover Coilover
Spring rate change at factory Possible Possible
Damping force adjustment with wire -
Helper spring
(Spring rate N/mm)
- ○ ( 19.8 )


Ride Height mm
  Factory *2 Test data Adjustable range
High - Low *3
Drivable range
High - Low *4
FRONT Ride height *1 610 605 655 ~ 568 655 ~ 596
Against stock -45 -50 0 ~ -87 0 ~ -59
REAR Ride height *1 618 613 658 ~ 563 658 ~ 596
Against stock -40 -45 0 ~ -95 0 ~ -62
*1. Height from road surface to fender arch.
*2. Height at factory is the data tested at HKS with the setting of Full Kit. (HKS' recommended setting.)
*3. Adjustable range (However, the lowest value may not be road legal.
Even within the adjustable range, car body, arm etc. may contact. In such case, it will be hard to drive.
Damper oil leakage or any other problems caused by low ride height setting from the factory setting will void the warranty of the product.)
*4. Drivable range that there is no contact of car body or arms etc. (However, change of tire/wheel size may cause a problem.)
Caution). Actual data depends on each vehicle.


Kit information
Spring of Full Kit
  F R
Spring rate N/mm(kgf/mm) 78 ( 8 ) 59 ( 6 )
Free height (mm) 200 200
Spring type Straight Straight
Recommended range to change spring rate N/mm(kgf/mm) ±20 ( 2 ) ±20 ( 2 )
Specification of damper
  F R
Damping force (Rebound/Damping)N* 850 / 400 400 / 350
Default position of dial 15 15
Remaining damper stroke (Rebound/Damping)mm 30 / 75 70 / 55
* The value of the damping force is at piston speed of 0.1m/sec.
Setting data
  F R
Default Test Drivable limit
High *
Drivable limit
Low *
Default Test Drivable limit
High *
Drivable limit
Low *
Length of
case (mm)
338 334 370 330 350 345 386 330
Spring
Set length(mm)
194 196 264
Length to ride hight
adjuster (mm)
30 26 62 20 78 73 114 58
Lever ratio 1.40 1.10
* Refer to the above explanation *3 of ride height information for drivable high and low limitations.


Test vehicle information
  F R
Vehicle weight kg - -
Tire size (Air pressure) kPa 195 / 50 - 16 ( 198 ) 195 / 50 - 16 ( 198 )
Wheel size 6.5 JJ × 16 inset 45 6.5 JJ × 16 inset 45
Alignment
(Toe/Camber)
Test data +0 mm / -1°18' +0 mm / -2°36'
Standard value IN 1.6 ± 2 mm / -0°30' ± 45' IN 3 ± 2 mm / -1°23' ± 45'
* Test data at HKS.

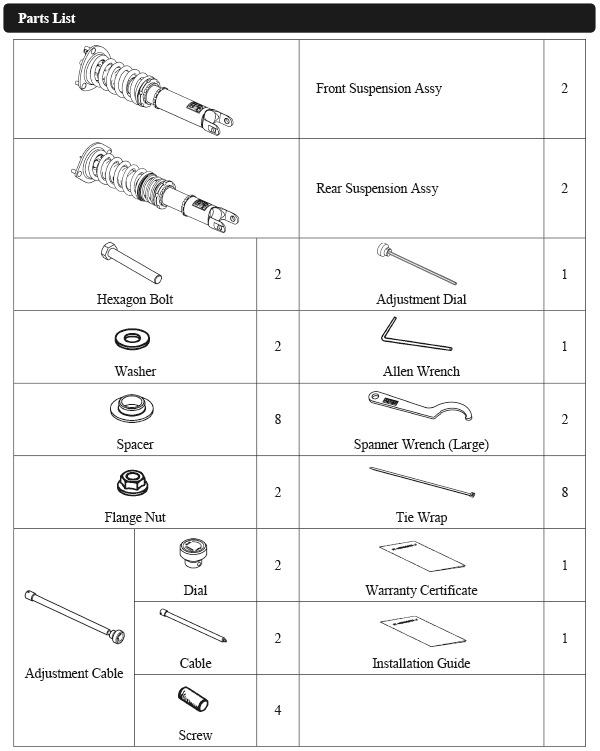

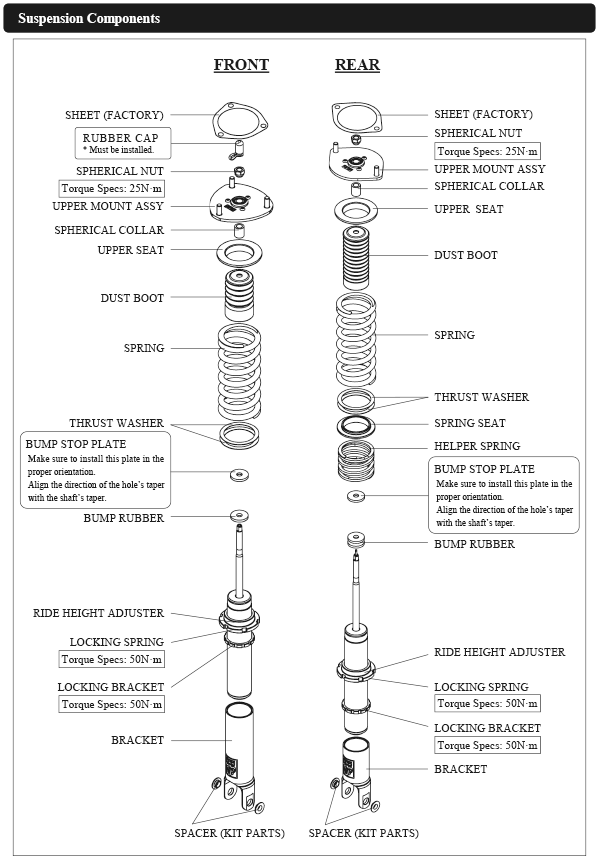

Parts List * It may be changed without prior notice.


Point
Ground Clearance: 98mm
The spring rate and dampening force were selected by placing priority on handling under sports driving and upgrading the factory setting. This product generates the gradual movement without being too peaky with the load control range especially for FR. Its supple movement stimulates tire grip and smooth riding that provides sufficient comfort for daily driving.
