S-Style L PRIUS
Explanation of the product Application chart

PRIUS ZVW55
S-Style L Code No. 80130-AT113




▲The above photo is an item for ZVW30.

Awesome control and comfort ride on the street for a sporty drive. The new Max IV sporty suspension.



Application   Specification
Engine 2ZR-FXE(2ZR-1NM)
Model Year 15/12 -
Remarks

  FRONT REAR
Damping force adjustment - -
Base valve - -
Height adjustable lower bracket
Upper mount
Inverted/Normal type Inverted Normal
Damper/Spring layout Coilover Separated
Spring rate change at factory Possible Possible
Damping force adjustment with wire -
Helper spring
(Spring rate N/mm)
- -


Ride Height mm
  Factory *2 Test data Adjustable range
High - Low *3
Drivable range
High - Low *4
FRONT Ride height *1 662 697 ~ 632 697 ~ 632
Against stock -35 0 ~ -65 0 ~ -65
REAR Ride height *1 641 651 673 ~ 622(612) 673 ~ 622(612)
Against stock -45 -35 -13 ~ -64(-74) -13 ~ -64(-74)
*1. Height from road surface to fender arch.
*2. Height at factory is the data tested at HKS with the setting of Full Kit. (HKS' recommended setting.)
*3. Adjustable range (However, the lowest value may not be road legal.
Even within the adjustable range, car body, arm etc. may contact. In such case, it will be hard to drive.
Damper oil leakage or any other problems caused by low ride height setting from the factory setting will void the warranty of the product.)
*4. Drivable range that there is no contact of car body or arms etc. (However, change of tire/wheel size may cause a problem.)
Caution). Actual data depends on each vehicle.


Kit information
Spring of Full Kit
  F R
Spring rate N/mm(kgf/mm) 39 ( 4.0 ) 39 ( 4.0 )
Free height (mm) 220 250
Spring type Straight Barrel type Straight Barrel type
Recommended range to change spring rate N/mm(kgf/mm) +1 ( 1 ) +1 ( 1 )
Specification of damper
  F R
Damping force (Rebound/Damping)N* 324 / 137 326 / 137
Default position of dial - -
Remaining damper stroke (Rebound/Damping)mm 72 / 54 61 / 75
* The value of the damping force is at piston speed of 0.1m/sec.
Setting data
  F R
Default Test Drivable limit
High *
Drivable limit
Low *
Default Test Drivable limit
High *
Drivable limit
Low *
Length of
case (mm)
291 326 264 282 297 275
Spring
Set length(mm)
197 197 200 - - - -
Length to ride hight
adjuster (mm)
30 65 0 43 50 68 28(20)
Lever ratio 1.00 1.275(spg) , 1.294(dmp)
* Refer to the above explanation *3 of ride height information for drivable high and low limitations.


Test vehicle information
  F R
Vehicle weight kg - -
Tire size (Air pressure) kPa 225 / 35 - 19 ( 260 ) 225 / 35 - 19 ( 250 )
Wheel size 8.0J × 19 8.0 J × 19
Alignment
(Toe/Camber)
Test data in 1 mm / -0°45' in 2 mm / -2°10'
Standard value in 3 mm 0 mm / -0°10' ± 0°45' in 4 mm 0 mm / -1°10' ± 0°45'
* Test data at HKS.

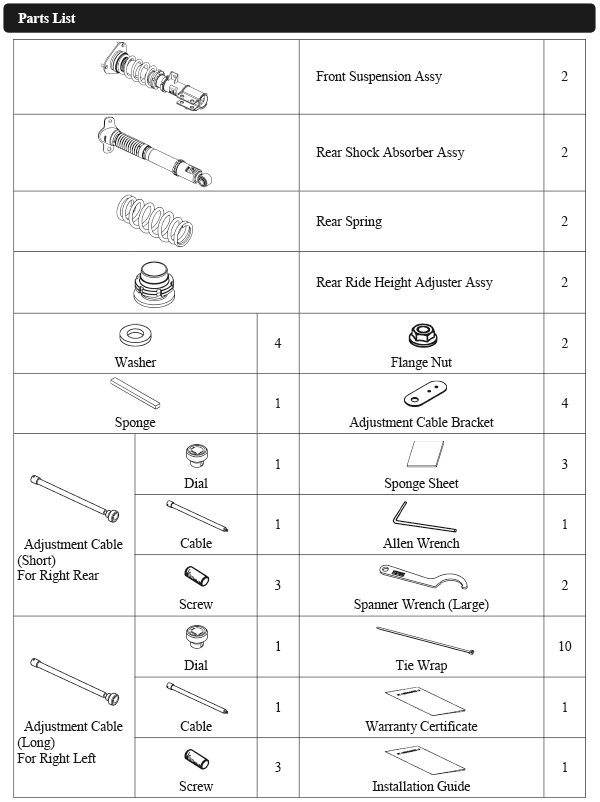

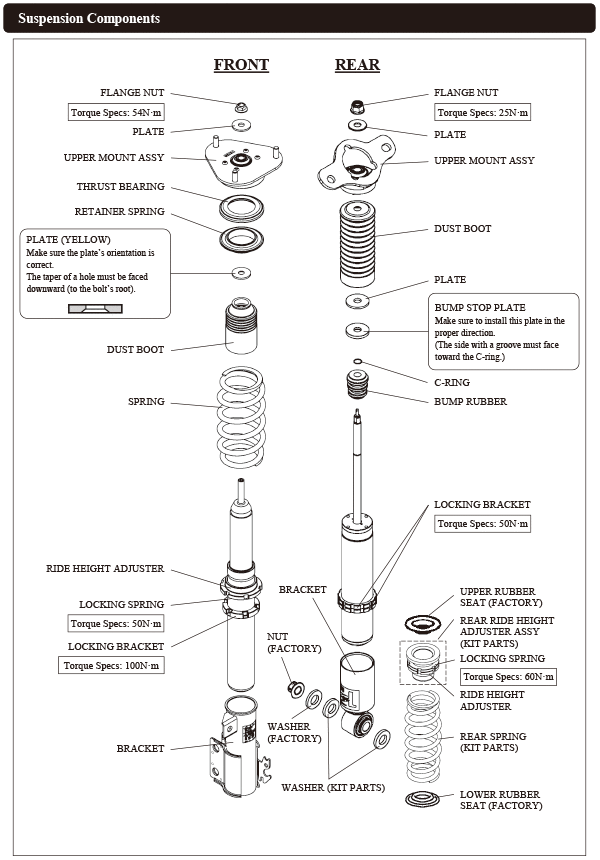

Parts List * It may be changed without prior notice.
