AIR INTAKE DUCT
BRZ
Explanation of the product Application chart
BRZ ZD8

Code No. 70999-AT003





Reduce air intake resistance by replacing duct with a much larger opening









  • A one-piece molded construction without internal seams was adopted, to reduce intake resistance.

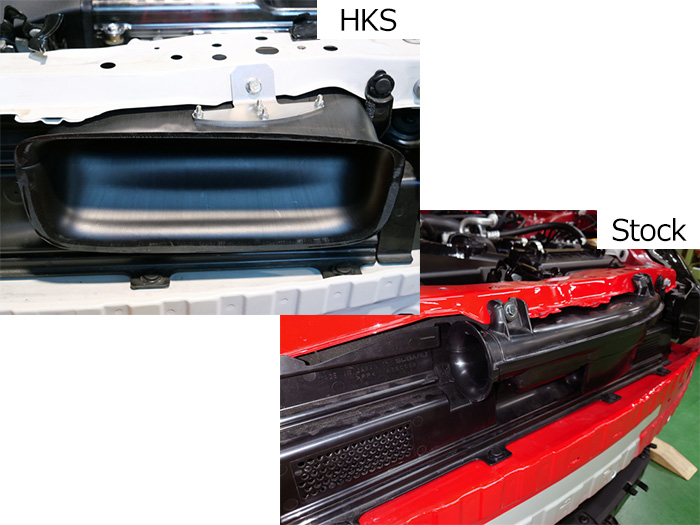

  • Aiming to reduce resistance at maximum flow rate, the narrowest section diameter is D87.5mm, while the factory diameter is D50mm.
  • Due to the same layout as the factory unit, it does not absorb rainwater and can be used safely on the street.

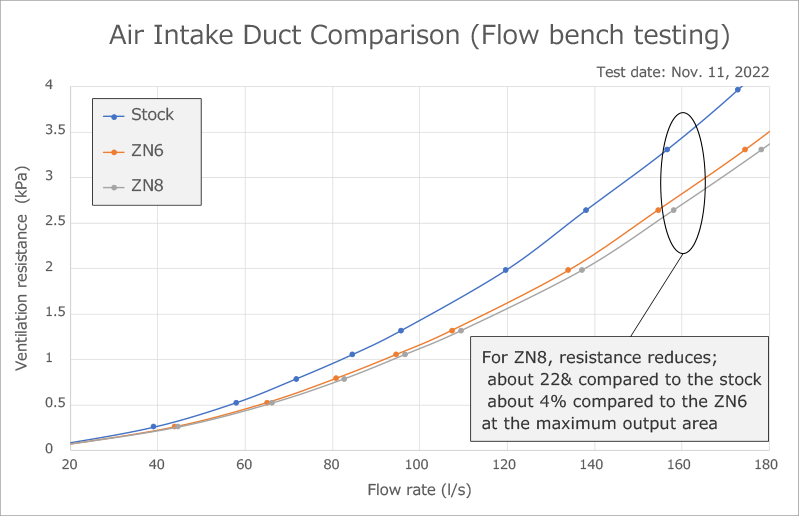

■Intake Duct Flow Bench Comparison

*HKS in-house data





Vehicle Model Engine Model Year Code No. Manual Remarks
BRZ ZD8 FA24 21/08 - 70999-AT003 Installation time: 2.0h
