Hi-Power SPEC-L LEVORG Explanation of the product Application chart

LEVORG DBA-VMG
Code No. 31019-AF031







Cert. No. JQR20152197

Vehicle LEVORG
Model VMG
Engine FA20(TURBO)
Model Year 14/06 -
Shape of muffler HP(SUS)
(Hi-Power SPEC-L)
Main material S304(*2)
Diameter of tip 94 LR
Diameter of center pipe 50×2(*3)
Close noise level Stock 74
HKS 77
About road clearance(*4) Clearance 180mm

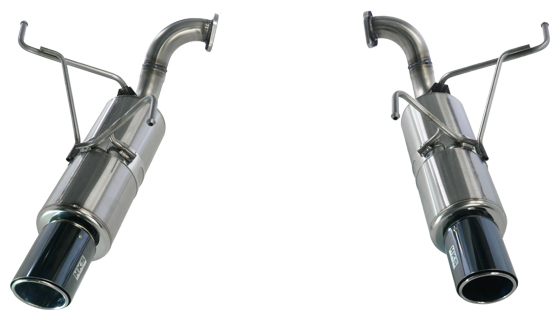

Portion of the kit Main silencer
Remarks Ground clearanhce Only rear part. Weight: Stock 13.6Kg HKS:6.4Kg (47% of stock weight)
Product Weight 6.4kg





Remarks

Only rear part. Weight: Stock 13.6Kg HKS:6.4Kg (47% of stock weight)



About HKS muffler

*1: About silencer shell type of Silent Hi-Power
TYPE-S/Oval silencer for noise reduction.
TYPE-H/Round silencer for performance.

*2: Main material in the component figure.

: SUS304/High quality stainless steel.
: SUH409/Stainless steel commonly used for stock exhaust.

*3: About center pipe
Diameter of center pipe is the portion that has the largest diameter. (Excluding silencer and tip.) It is the condition with stock suspension.

*4: Minimum road clearance between HKS muffler (Any parts included in the kit) and road surface. Therefore, it may be different from actual road clearance of the vehicle.
The data is basically the condition with stock suspension. However, please understand that some items have data with low down spring or ride height adjustable suspension kit.

Caution: Hook, bracket, stay may be changed without prior notice.

★ Exhaust noise level at idle.
