LEGAMAX Premium HIACE Explanation of the product Application chart

HIACE LDF-KDH201V
Code No. 31021-AT002







Cert. No. JQR10161070

Vehicle HIACE
Model KDH201V
Engine 1KD-FTV
Model Year 10/07 -

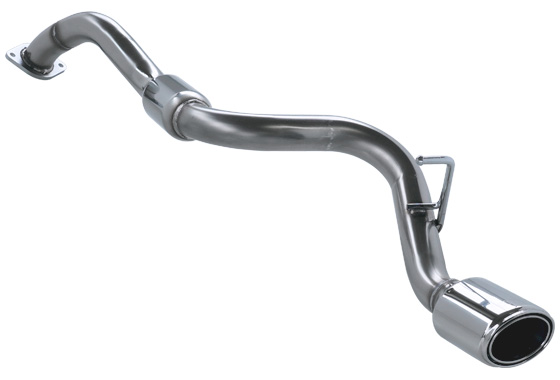

Shape of muffler N-2 (LEGAMAX Premium)
Main material S304(*2)
Diameter of tip 123OVAL LR
Diameter of center pipe 60(*3)
Close noise level Stock 75
HKS 76
About road clearance(*4) Clearance 195mm
Portion of the kit Stock CAT
Remarks
Product Weight 4.5kg





Remarks



About HKS muffler

*1: About silencer shell type of Silent Hi-Power
TYPE-S/Oval silencer for noise reduction.
TYPE-H/Round silencer for performance.

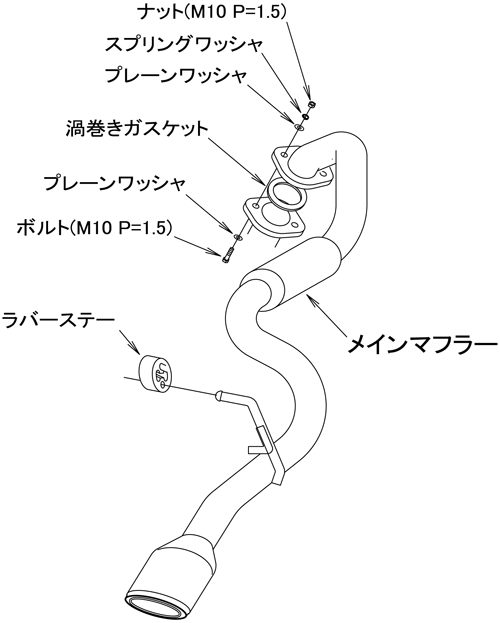

*2: Main material in the component figure.

: SUS304/High quality stainless steel.
: SUH409/Stainless steel commonly used for stock exhaust.

*3: About center pipe
Diameter of center pipe is the portion that has the largest diameter. (Excluding silencer and tip.) It is the condition with stock suspension.

*4: Minimum road clearance between HKS muffler (Any parts included in the kit) and road surface. Therefore, it may be different from actual road clearance of the vehicle.
The data is basically the condition with stock suspension. However, please understand that some items have data with low down spring or ride height adjustable suspension kit.

Caution: Hook, bracket, stay may be changed without prior notice.

★ Exhaust noise level at idle.
