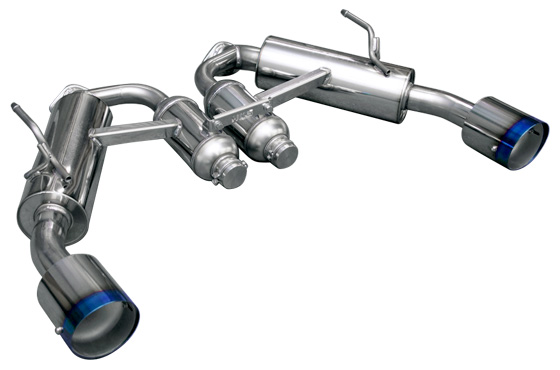

FULL DUAL Q50 Explanation of the product Application chart

Q50 HNV37
Code No. 32009-BN005







Cert. No.

Vehicle Q50
Model HNV37
Engine VQ37VHR
Model Year 13/08 -
Shape of muffler HP(Titan) (FULL DUAL)
Main material S304(*2)
Diameter of tip φ119 x L140 Ti Tip
Diameter of center pipe φ60.5(*3)
Close noise level Stock 68
HKS 86
About road clearance(*4) Clearance

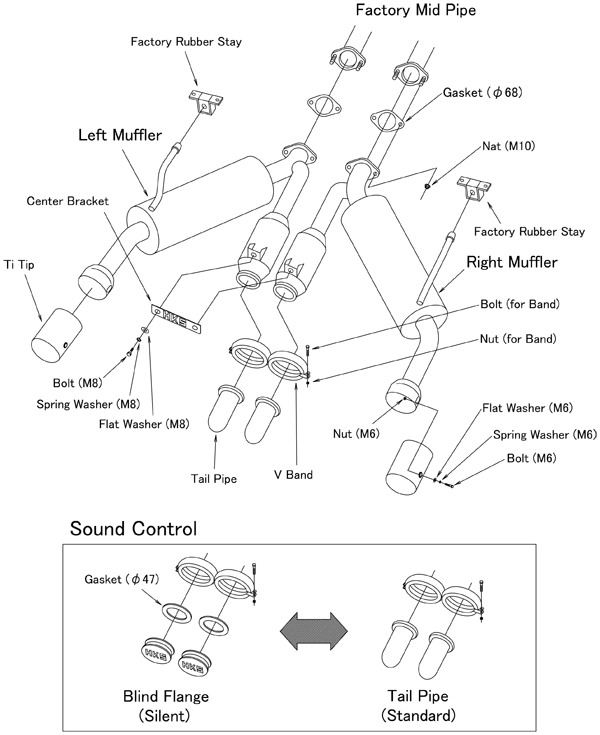

Portion of the kit
Remarks
Product Weight





Remarks

・The ground clearance remains the same after installing this product. ・Noise level with a cap: 87dB (63dB) ・With the provided cap, it can change the exhaust sound quiet.



About HKS muffler

*1: About silencer shell type of Silent Hi-Power
TYPE-S/Oval silencer for noise reduction.
TYPE-H/Round silencer for performance.

*2: Main material in the component figure.

: SUS304/High quality stainless steel.
: SUH409/Stainless steel commonly used for stock exhaust.

*3: About center pipe
Diameter of center pipe is the portion that has the largest diameter. (Excluding silencer and tip.) It is the condition with stock suspension.

*4: Minimum road clearance between HKS muffler (Any parts included in the kit) and road surface. Therefore, it may be different from actual road clearance of the vehicle.
The data is basically the condition with stock suspension. However, please understand that some items have data with low down spring or ride height adjustable suspension kit.

Caution: Hook, bracket, stay may be changed without prior notice.

★ Exhaust noise level at idle.



[ CLOSE ]
