Hi-Power Muffler FIT Explanation of the product Application chart

FIT GK5
Code No. 32003-CH002





Cert. No.

Vehicle FIT
Model GK5
Engine L15B
Model Year 14/01 -
Shape of muffler HP(TYPE-H)
(Hi-Power Muffler)
Main material S304(*2)
Diameter of tip φ94
Diameter of center pipe φ50(*3)
Close noise level Stock 80
HKS 91
About road clearance(*4) Clearance

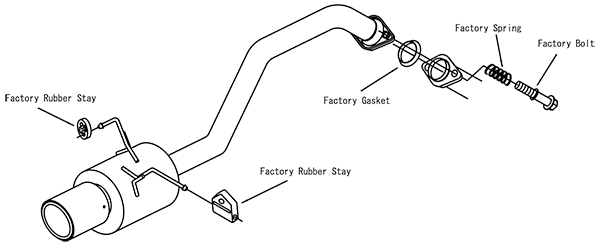

Portion of the kit
Remarks
Product Weight





Remarks

Carbon tail



About HKS muffler

*1: About silencer shell type of Silent Hi-Power
TYPE-S/Oval silencer for noise reduction.
TYPE-H/Round silencer for performance.

*2: Main material in the component figure.

: SUS304/High quality stainless steel.
: SUH409/Stainless steel commonly used for stock exhaust.

*3: About center pipe
Diameter of center pipe is the portion that has the largest diameter. (Excluding silencer and tip.) It is the condition with stock suspension.

*4: Minimum road clearance between HKS muffler (Any parts included in the kit) and road surface. Therefore, it may be different from actual road clearance of the vehicle.
The data is basically the condition with stock suspension. However, please understand that some items have data with low down spring or ride height adjustable suspension kit.

Caution: Hook, bracket, stay may be changed without prior notice.

★ Exhaust noise level at idle.
