LEGAMAX Premium 86 Explanation of the product Application chart

86 DBA-ZN6
Code No. 32018-AT058



A standard sports muffler with a balance of good looks and power
A big diameter slotted tale makes look 86/BRZ sporty.
Muffler restriction, low end torque and accelerator response is improved by 20% compared to the stock.
While minimizing an excessive sound inside the car, a muffler produces a beautiful sound at high revolutions.
Will make your daily driver more comfortable and fun to drive.




Cert. No. JQR10161203

Vehicle 86
Model ZN6
Engine FA20
Model Year 16/08 -
Shape of muffler SSR(Titan)
(LEGAMAX Premium)
Main material S304(*2)
Diameter of tip 124 L&R
Diameter of center pipe 60-54×2(*3)
Close noise level Stock 83
HKS L90 R88
About road clearance(*4) Clearance 165mm

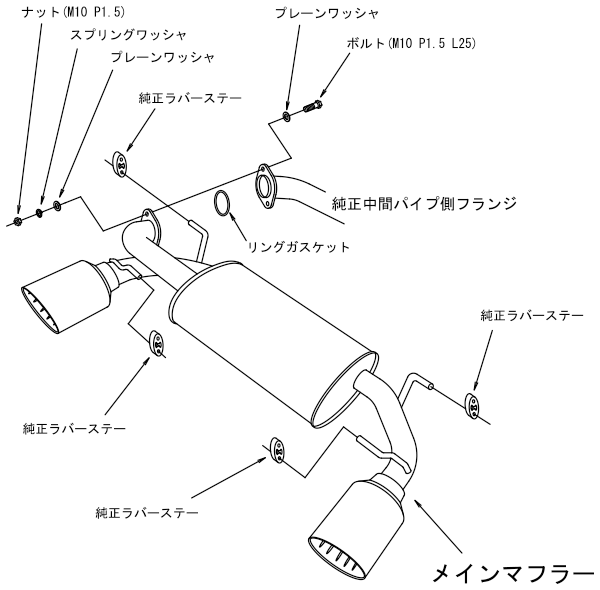

Portion of the kit Main shell
Remarks The minimal ground clearance at the lowest point (original mid pipe) is 130mm
Product Weight 10.5kg





Remarks

Main muffler only, compatible with late model only



About HKS muffler

*1: About silencer shell type of Silent Hi-Power
TYPE-S/Oval silencer for noise reduction.
TYPE-H/Round silencer for performance.

*2: Main material in the component figure.

: SUS304/High quality stainless steel.
: SUH409/Stainless steel commonly used for stock exhaust.

*3: About center pipe
Diameter of center pipe is the portion that has the largest diameter. (Excluding silencer and tip.) It is the condition with stock suspension.

*4: Minimum road clearance between HKS muffler (Any parts included in the kit) and road surface. Therefore, it may be different from actual road clearance of the vehicle.
The data is basically the condition with stock suspension. However, please understand that some items have data with low down spring or ride height adjustable suspension kit.

Caution: Hook, bracket, stay may be changed without prior notice.

★ Exhaust noise level at idle.
