silent Hi-Power
CALDINA
CALDINA LA-, ABA-ST246W

Code No. 31019-AT013

*Discontinued.









Cert. No. 03S03723
Vehicle CALDINA
Model ST246W
Engine 3S-GTE
Model Year 02/09 - 07/06
Shape of muffler HP (TYPE-H)
(silent Hi-Power)
Main material S304
Diameter of tip 94
Diameter of center pipe 65 (*1)
Close noise level Stock 83
HKS 91
About road clearance(*2) Clearance 195mm

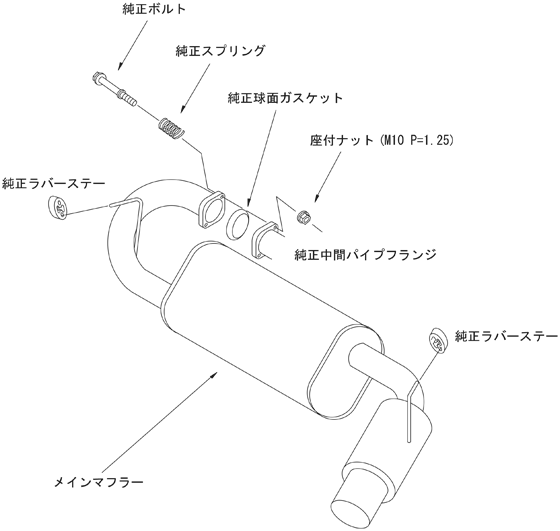

Portion of the kit Main silencer
Remarks
Product Weight 10kg
Remarks

* Discontinued.  For grade "GT-Four". Not tested for "HOT IMPACT Ver."/"COOL STYLISH Ver.". Fits to stock rear under spoiler.



About HKS muffler

*1: About center pipe
Diameter of center pipe is the portion that has the largest diameter. (Excluding silencer and tip.) It is the condition with stock suspension.

*2: Minimum road clearance between HKS muffler (Any parts included in the kit) and road surface. Therefore, it may be different from actual road clearance of the vehicle.
The data is basically the condition with stock suspension. However, please understand that some items have data with low down spring or ride height adjustable suspension kit.

Caution: Hook, bracket, stay may be changed without prior notice.

★ Exhaust noise level at idle.
