SUPERCHARGER UPGRADE KIT 86 Explanation of the product Application chart
86 ZN6

Code No. 12002-KK001







GT SUPERCHARGER for TOYOTA 86/SCION FR-S and SUBARU BRZ -Ver.3-

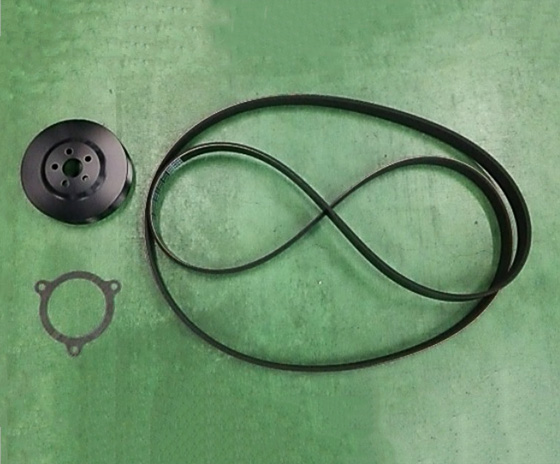

PULLEY UPGRADE KIT









This kit improves the engine output better than the base kit when using with E85.





■Features

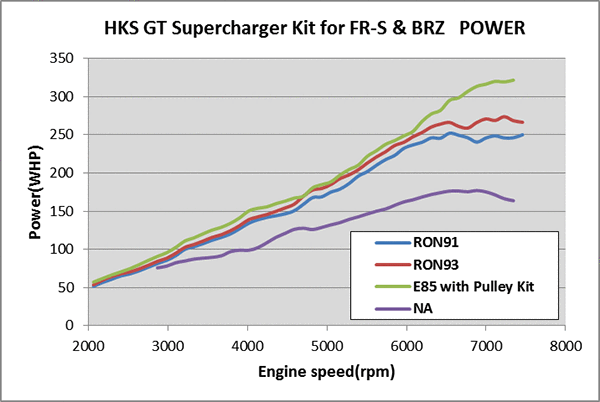

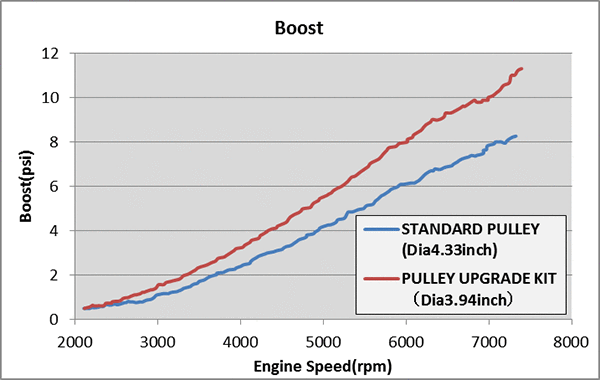

  • Additional installation of a small diameter pulley to Supercharger Kit Ver.3, which is best match with 91 octane gasoline, upgrades the fuel parts with E85 and leads to +90% more power compared to the stock.
    HKS S/C RON91: RON91 gasoline spec. 255HP (+80HP of the stock)
    HKS S/C E85: E85 fuel +PULLEY UPGRADE KIT + Fuel Pump + Injector. 320HP (+150HP of the stock)
    ※Pulley Upgrade Kit, fuel pump, and injector are available separately.
  • This kit is designed exclusively as the optional part for 12001-KT003. If E85 or racing fuel is not used, the output may be lowered than the one with the standard pulley size.







Vehicle Model Engine Model Year Code No. Price Remarks
86 ZN6 FA20 12/04- 12002-KK001 ・This product is the option part for GT SUPERCHARGER SYSTEM ZN6/ZC6 FA20 Ver.3(12001-KT003). ・Compatibility of the vehicle with an AT transmission has not been confirmed.
