WASTEGATE SERIES TURBO LESS KIT GT-R Explanation of the product Application chart
GT-R R35

Code No. 14020-AN007







SET UP KIT for new symmetry turbo set “GT900(GTII7467)” designed for R35 GT-R are newly released.

This kit was designed to utilize the symmetry turbine layout, which is considered ideal, so the overwhelming high performance is expected.



※This is a photo of GT1000 Full Turbine Kit. Set Up Kit does not include turbo units.





【Features】
  • This product is a set up kit for the symmetry turbine set of GT900.
  • Use in combining this product with the symmetry turbine set works as a full turbine kit.



  • To provide effective intake and exhaust performance, the suction pipe and chamber pipe were originally designed for this product.
  • The exhaust manifold is made with heat-resisting steel, which quality was proved by GT800. High durability against heat and vibration is guaranteed.
  • GTII Wastegate was selected because of its compact size, light weight, and reliable boost control.







【Performance】

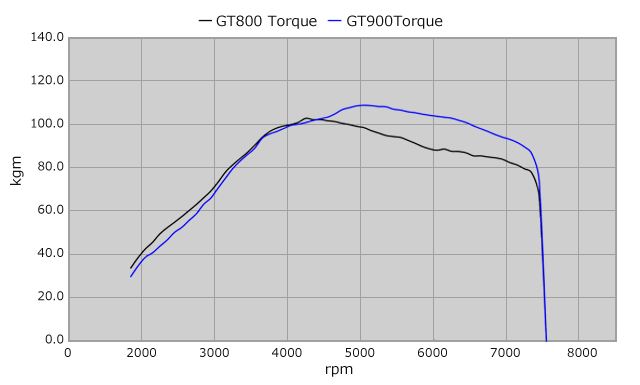

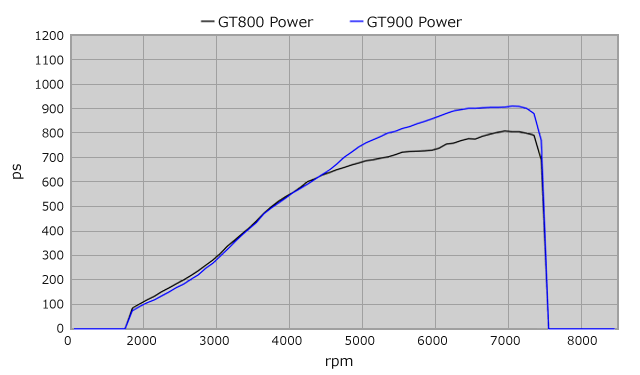

  Output Torque
GT900 Racing SPEC 910ps/7000rpm 102.6kg-m/4700rpm

※Some one-off parts are included.



【Main Kit Parts】
Main Kit Parts
Exhaust Manifold Heat-resistant Cast, 52mm Pipe
Wastegate HKS GTII φ50
Front Pipe SUS304 φ70→φ75
Suction Pipe AL buffed pipe φ70
Other Short Parts

※It is recommended to use HKS Racing Suction Reloaded.



Test Vehicle Spec.(GT900)
HKS GT900 (GTII7467) HKS F-CON V Pro
HKS GT900 Set UP Kit HKS High-flow Surge Tank
HKS STEP2 Piston + Con'rod HKS Intercooler
HKS Camshaft HKS 860cc Injector





【Notes for Installation】
  • The engine must be removed in order to install this product.
  • This kit does NOT include the symmetry turbine set, fuel pump, injectors, F-CON, EVC, and engine parts
  • The factory boost setting of the Wastegate is approximately 90-100kPa.
  • Modification of the stock water pipe is required.
  • Modification of T/C heat insulator is required.
  • This product is for a race use. HKS is not responsible for any damage of the engine and/or transmission caused by use of this product.
  • CAT must be removed in order to install this product; therefore, the vehicle with this product cannot drive in a public road.
  • The warranty of the vehicle from a dealer may be void after installing this product.
  • The symmetry turbo set is not included in this product.



Vehicle Model Engine Model Year Type Turbo Kit Turbine Size Boost Pressure Code No. Price Remarks
GT-R R35 VR38DETT 07/12- GTII-FTK GTII 7467 88.3kpa~98.1kpa(0.9~1.0kgf/cm2) 14020-AN007
