WASTEGATE SERIES TURBO LESS KIT
GT-R
Explanation of the product Application chart
GT-R R35

Code No. 14020-AN008

*Discontinued.

SET UP KIT for new symmetry turbo set “GT1000＋(GTII8267)” designed for R35 GT-R are newly released.
This kit was designed to utilize the symmetry turbine layout, which is considered ideal, so the overwhelming high performance is expected.






※This is a photo of GT1000 Full Turbine Kit. Set Up Kit does not include turbo units.





【Features】

  • This product is a set up kit for the symmetry turbine set of GT1000 and GT1000+.
  • Use in combining this product with the symmetry turbine set works as a full turbine kit.
  • To provide effective intake and exhaust performance, the suction pipe and chamber pipe were originally designed for this product.
  • The exhaust manifold is made with heat-resisting steel, which quality was proved by GT1000. High durability against heat and vibration is guaranteed.
  • GTII Wastegate was selected because of its compact size, light weight, and reliable boost control.

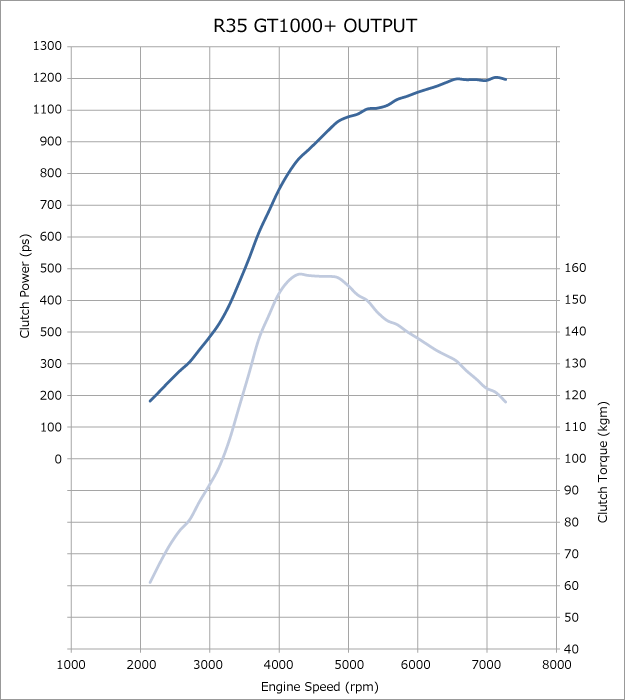

【Performance】

  Output Torque
GT1000+ Racing SPEC 1204ps/7410rpm 151.0kg-m/4560rpm
GT1000 Racing SPEC 1005ps/6700rpm 128.6kg-m/3870rpm

※Tests were conducted using R35 GT-R GT1000+.  VR4.3L Kit and some one-off products were installed to the test vehicle.





【Main Kit Parts】

Main Kit Parts
Exhaust Manifold Heat-resistant Cast, 52mm Pipe
Wastegate HKS GTII φ50
Front Pipe SUS304 φ70→φ75
Suction Pipe AL buffed pipe φ70
Other Short Parts

※It is recommended to use HKS Racing Suction Reloaded.





【Notes for Installation】

  • he engine must be removed in order to install this product.
  • This kit does NOT include the symmetry turbine set, fuel pump, injectors, F-CON, EVC, and engine parts
  • The factory boost setting of the Wastegate is approximately 90-100kPa.
  • Modification of the stock water pipe is required.
  • Modification of T/C heat insulator is required.
  • This product is for a race use. HKS is not responsible for any damage of the engine and/or transmission caused by use of this product.
  • CAT must be removed in order to install this product; therefore, the vehicle with this product cannot drive in a public road.
  • The warranty of the vehicle from a dealer may be void after installing this product.
  • The symmetry turbo set is not included in this product.





Vehicle Model Engine Model Year Type Turbo Kit Turbine Size Boost Pressure Code No. Manual Remarks
GT-R R35 VR38DETT 07/12 - GTII-FTK GTII 7867(GT1000)/GTII 8267(GT1000+) 88.3kpa～98.1kpa (0.9～1.0kgf/cm2) 14020-AN008 * Discontinued.
