Flat torque characteristics over a wide rpm range, giving great strength from low air flow area to stability in the peak boost range. Overcome any corner with a natural and versatile power delivery, especially from corner apex to exit.
Revive a classic with a new secret force!
Application
Engine: SR20DET
Model: S15/S14
Year: 1993/10 - 2002/8
GT III-RS
Price：¥237,600
Product Features
Recent requirements towards fuel efficiency and emissions control have accelerated the development of turbo technology and these advancements have been adapted for tuning.
High efficiency MHI CHRA with HKS designed housings which utilize know how built up over many years and latest fluid analysis produces a high efficiency unit with high boost at low air flow ranges whilst preventing surging is realized.

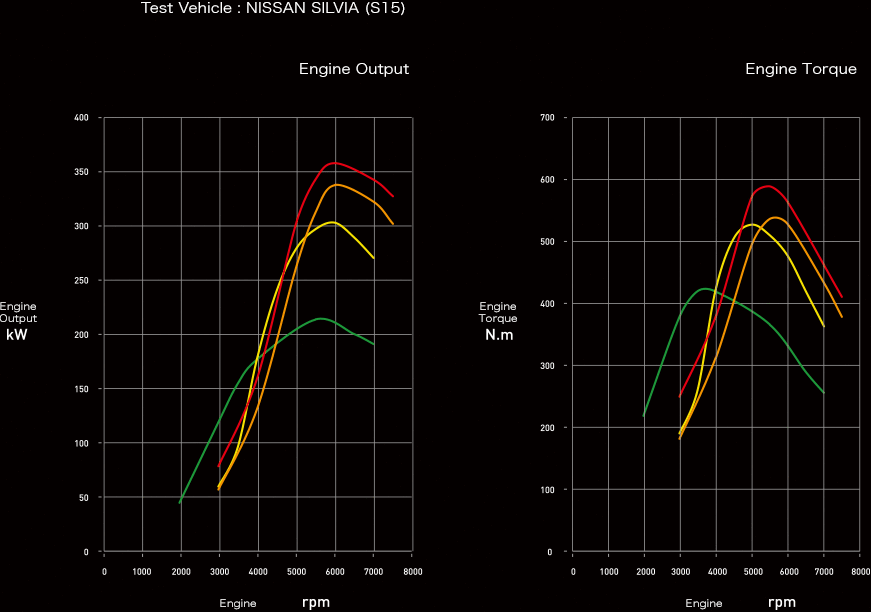

Power Graphs
※These are the results of the in-house testing.
DATA
| STEP | Tuning Level | Boost Setting (kPa) |
Engine Output kW (ps)/rpm |
Engine Torque N-m (kgf-m)/rpm |
|
|---|---|---|---|---|---|
| NORMAL | － | 183 (250) /6400 | 274 (28.0) /4800 | ||
| STEP-1 | － | Intake + Exhausts + Racing Plug + Engine Management | 110 | 213 (290) /5500 (+40PS) |
422 (43.1) /3800 (+15.1kgf-m) |
| STEP-2 | － | STEP-1+GTIII-RS+Exhaust+Engine+Cooling+Fuel | 147 | 301 (410) /5900 (+160PS) |
525 (53.6) /5000 (+25.6kgf-m) |
| STEP-3 | － | STEP-2+GTII 7460+Engine | 147 | 338 (460) /6000 (+210PS) |
530 (54.0) /5500 (+26.0kgf-m) |
| STEP-4 | － | STEP-3+SR20DET 2.2L Kit STEP2 | 147 | 355 (482) /6000 (+232PS) |
590 (60.1) /5500 (+32.1kgf-m) |
※These are the results of the in-house testing. The results may be different depending on the measurement instruments or vehicle's individual differences.
SILVIA (GF-S15) STEP UP MENU
| Menu | Product | Code No. | Price | Remarks |
|---|---|---|---|---|
| STEP-1 | ||||
| Intake | Racing Suction | 70020-AN101 | ¥52,000 | |
| Exhaust | Super Turbo Muffler | 31029-AN004 | ¥111,000 | |
| Metal Catalyzer | 33005-AN001 | ¥78,000 | ||
| Ignition | Super Fire Racing M40i | 50003-M40I | ¥8,800 | ※For 4 plugs. |
| Engine Management |
EVC6-IR2.4 | 45003-AK012 | ¥65,000 | |
| F-CON iS | 42011-AK003 | ¥70,000 | ※Available only from Power Writer Shops. Setting with a vehicle is required. | |
| F-CON iS Harness NP5-4 | 4202-RN020 | ¥25,000 | ||
| Fuel | Large Capacity Injector 555cc | 1402-RN008 | ¥80,000 | ※For 4 injectors |
| STEP-2 | ||||
| Turbo | GT-III RS | 11004-AN013 | ¥220,000 | ※For a vehicle registered after Oct., 2000, a factory oil return hose (15198-69F00) is required. |
| Exhaust | Stainless Exhaust Manifold | 1419-RN006 | ¥102,000 | |
| Engine Management |
F-CON V Pro Ver3.4 | 42012-AK007 | ¥140,000 | ※Available only from Power Writer Shops. Setting with a vehicle is required. |
| F-CON V Pro Ver.3.4 + PowerWriter Set | 42016-AK002 | ¥200,000 | ※Setting with a vehicle is required. | |
| Pressure Sensor Super Wide Range | 4299-RA008 | ¥20,000 | ||
| Intake Air Temperature Sensor | 4603-RA001 | ¥6,300 | ||
| Press. Sensor + Intake Air Temp. Sensor Harness | 4299-RA016 | 3,500 | ||
| Engine | Stopper Type Head Gasket 1.2mm | 2301-RN039 | ¥20,000 | ※Select one from these 2 gaskets. |
| Stopper Type Head Gasket 1.6mm | 23001-AN001 | ¥22,000 | ||
| Camshaft STEP1 IN256° | 22002-AN023 | ¥19,000 | ||
| Camshaft STEP1 EX256° | 22002-AN024 | ¥19,000 | ||
| Cam Sprocket SR20 EX AL | 2203-RN010 | ¥20,000 | ||
| Piston Kit, Nickle Plating | 2103-RN024 | ¥108,000 | ※For the factory size Φ86-Φ22. | |
| SR20DET H-beam Con'rod Set | 23004-AN001 | ¥160,000 | ※For the factory size Φ22 | |
| Cooling | Intercooler Kit S-type | 13001-AN012 | ¥98,000 | ※Modification of bumper is required. |
| Oil Cooler Kit R-type | 15004-AN019 | ¥102,000 | ※Locate in the inside of the left fender | |
| Fuel | Fuel Regulator, Adjustable Type | 1407-RA015 | ¥15,000 | |
| Large Capacity Injector 740cc | 1402-RN009 | ¥80,000 | ※For 4 injectors. | |
| STEP-3 | ||||
| Turbo | S15/S14 GTII 7460 FULL TURBINE KIT | 11003-AN012 | ¥350,000 | ※Discontinued. ※GTII8262 is available as an option. ※For a race use; Ex. bypass pipe releases the pressurized air. |
| Engine | Camshaft STEP2 IN264° | 22002-AN026 | ¥21,000 | |
| Camshaft STEP2 EX264° | 22002-AN027 | ¥21,000 | ※Select one from these 2 camshafts. | |
| Camshaft STEP2 EX272° | 22002-AN030 | ¥21,000 | ||
| Valve Spring | 22001-AN002 | ¥20,000 | ||
| STEP-4 | ||||
| Engine | SR20DET 2.2L KIT STEP1 | 21004-AN015 | ¥368,000 | ※Select one from these 2 kits. ※Removal of the engine and modification are not included in the installation time. |
| SR20DET 2.2L KIT STEP2 | 21004-AN001 | ¥386,000 | ||
| Cylinder Liner | 2399-RN001 | ¥40,000 | ※Required for 21004-AN001. Recommended for 21004-AN015. | |
| Exhaust | ||||
| silent Hi-Power | 31019-AN017 | ¥72,000 | ||
| SUSPENSION | ||||
| HIPERMAX D' NOB | 80015-AN103 | ¥233,000 | ||
| HIPERMAX MAX IV SP | 80250-AN002 | ¥212,000 | ||
| HIPERMAX MAX IV GT | 80230-AN002 | ¥202,000 | ||
| POWER TRAIN | ||||
| LA Clutch Single | 26010-AN001 | ¥148,000 | ||
※The products listed above are subject to change without notice.
※Standard Installation Time is only for reference.
