Functional and stylish body parts makes the Type-R even racer.
Concept
Functional and stylish body parts makes the Type-R even racer.
- Functional and stylish body parts makes the Type-R even racer, and supports every stage from the street to the race track.
- Stylish form with CFD analysis and 3D CAD modeling improves driving stability performance.
Styling
Front Bumper Spoiler
- It inherits the HKS' past time attack machines and gives a powerful impression.
- CFRP barge panels are attached at both ends for ideal rectification and a racing look.
- 45 mm extended width, giving extra presence.

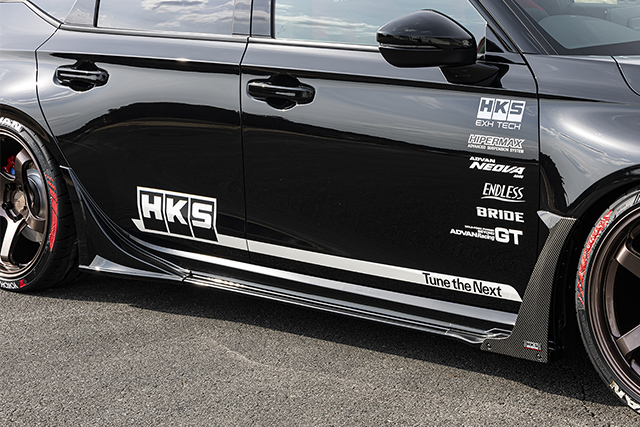

Side Skirt
- Set of simplified front and rear split-type side skirts to match with the stock body shape.
- While keeping the concept of simplicity in the design, the rear of the vehicle has been given a powerful shape to give it strength without sacrificing the press line of the stock body
- CFRP barge panel, the identity of HKS body kit, gives the vehicle a racing look.

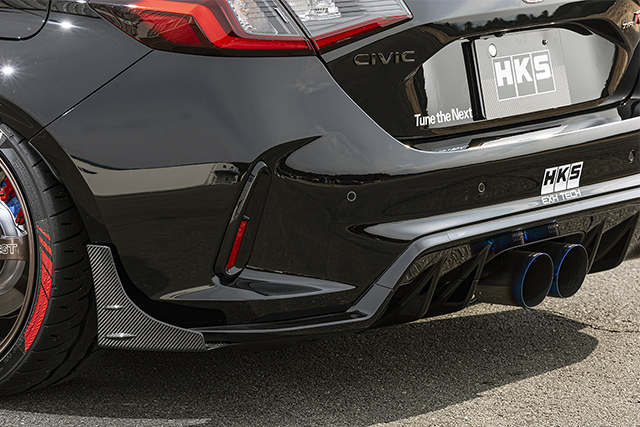

Rear Bumper Spoiler
- Simplified rear bumper spoiler is designed to match with the stock body shape.
- While the concept is simplicity, the use of CFRP gives it a powerful atmosphere.

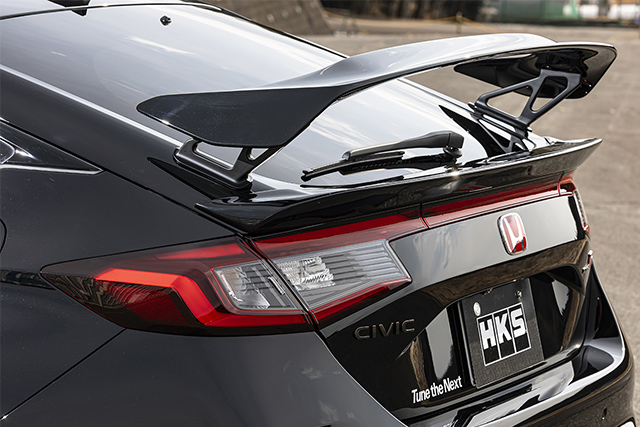

Duck Tail
- Duck tail generates a rectification effect on the upper surface of the body at high speeds, and together with the rectification effect on the lower surface of the body, improves the downforce. This improves the traction and the driving stability.
Materials
Functionality
●CFD Analysis
- Using advanced HKS aerodynamic technology, CFD (Computational Fluid Dynamics) analysis was performed on the stock Civic Type R to determine the optimal aero part design.
*HONDA CIVIC TYPE-R stock body CFD analysis
●Improved aerodynamics achieved with the HKS ducktail
- Improved Downforce: Airflow is streamlined and directed upward to generate downforce, enhancing high-speed stability.
- Reduced Drag: Airflow from the roof to the rear is guided smoothly to minimize air resistance.
- Enhanced Straight-Line Stability: Rear airflow is channeled upward to suppress vortex formation, reducing turbulence and improving straight-line stability.
*HKS Body Kit TYPE-S Duck Tail not installed
*HKS Body Kit TYPE-S Duck Tail installed
Functionality and Fitment
●Design using 3D scanning and 3D-CAD
- By combining CFD analysis, we have designed optimal aero parts.
- Using 3D scanning and 3D CAD, we pursued high-precision fitting based on the actual vehicle.
*HKS BODY KIT TYPE-S 3D scan and 3D-CAD
●DTesting at FUJI SPEEDWAY
- Real-world testing was conducted based on CFD analysis and 3D CAD design.
- FUJI SPEEDWAY was selected as the test course for its high-speed demands, with repeated verification performed at speeds over 220 km/h.
- Aerodynamic balance and mounting strength of the four components—front spoiler, side skirts, rear spoiler, and ducktail—were thoroughly validated.
●Why HKS Chooses Fuji Speedway
With its 1.5 km long straight and technical corners, Fuji Speedway is ideal for testing aero performance at speeds nearing 300 km/h. It allows HKS to verify both high-speed stability and cornering balance, proving the performance and strength of the BODY KIT TYPE-S under extreme conditions.
Estimated Installation Time
| Code No. | Product Name | Installation Time |
|---|---|---|
| 53004-AH001 | Front Bumper Spoiler | Approx. 3hrs |
| 53004-AH002 | Side Skirt | Approx. 3hrs |
| 53004-AH003 | Rear Bumper Spoiler | Approx. 1.5hrs |
| 53004-AH004 | Duck Tail | Approx. 1hrs |
