A function-focused body kit designed to elevate the driving experience of the GR Corolla Gen 2

Concept of the Kit

A function-focused body kit designed to elevate the driving experience of the GR Corolla Gen 2

• A newly developed front spoiler specifically designed for the GR Corolla Gen 2 (facelift model).
• Redesigned to complement the GEN2 front fascia and updated vehicle dynamics, this front spoiler carries over the racing-inspired character of the existing BODY KIT TYPE-S, while enhancing the bolder, more aggressive presence unique to the facelift model and improving overall driving stability.
• Developed using aerodynamic analysis and 3D CAD modeling, the front spoiler integrates practical aerodynamics into a sleek and stylish form. It enhances front-end stability at high speeds, delivering confident and stable performance across a wide range of driving conditions—from daily use to spirited sports driving.
• Extensive real-world testing at Fuji Speedway, including repeated runs at speeds exceeding 200 km/h, was conducted to validate performance. Through rigorous testing under high-load conditions, the product achieves a high level of strength, durability, and reliability.
• The side skirts, rear bumper spoiler, and rear wing share the same design as the GEN1 kit, while the front spoiler is developed exclusively for GEN2. This approach ensures a well-balanced overall design and a high level of visual and functional integration with the vehicle.

Styling

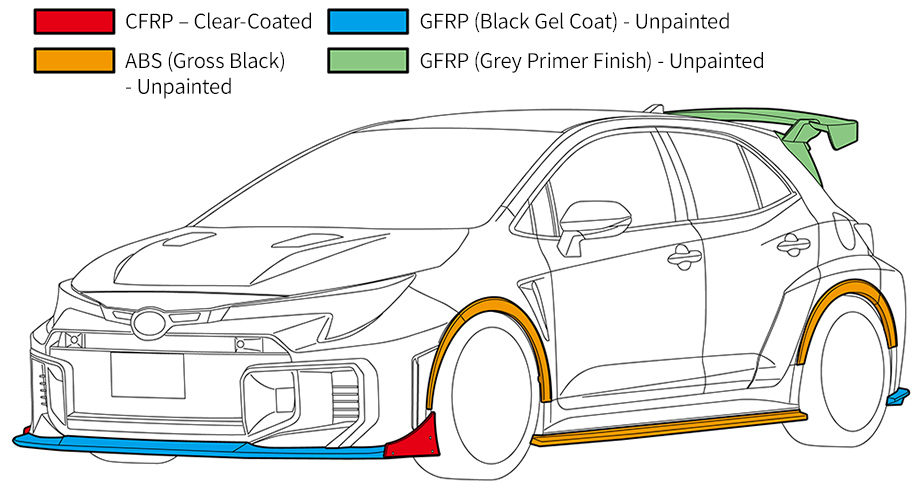

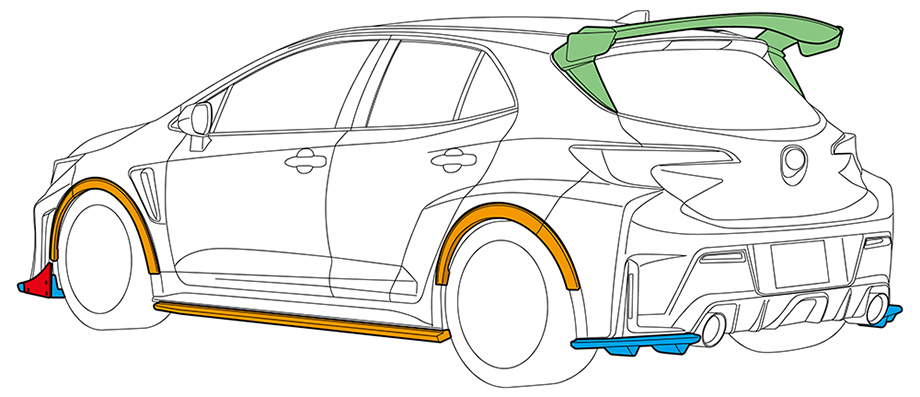

Materials

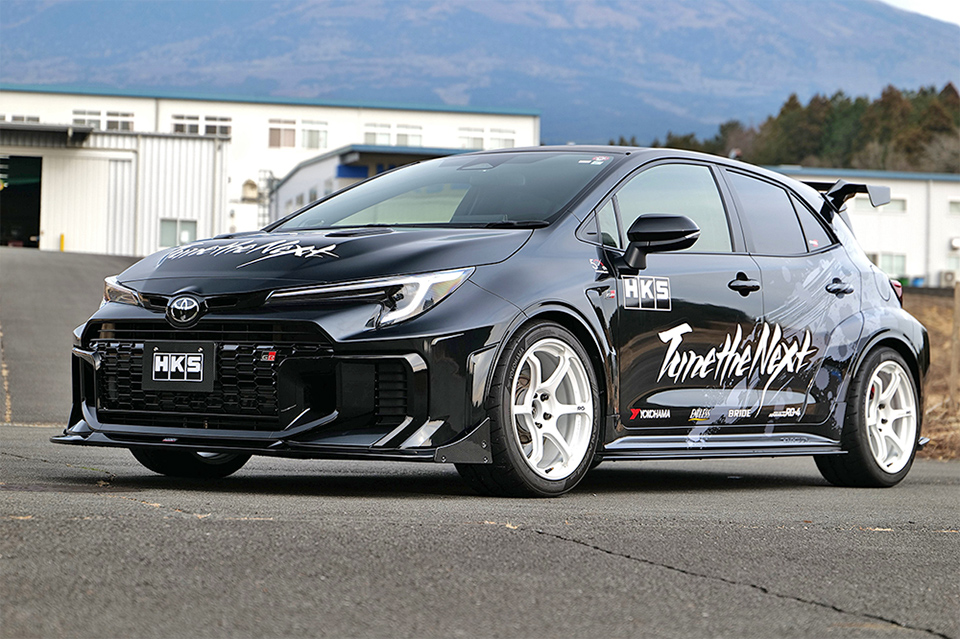

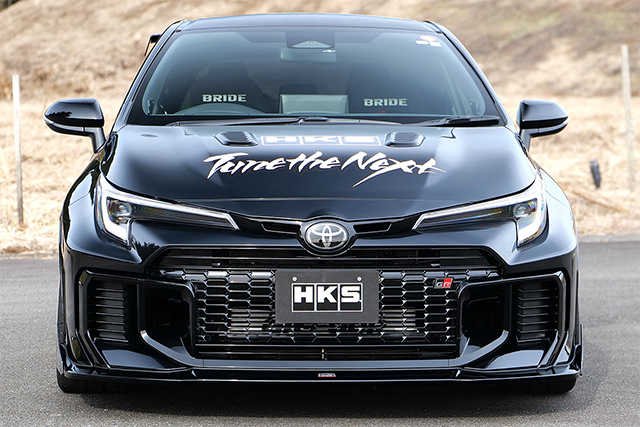

Front Bumper Spoiler

• Inheriting the look of successive HKS time attack machines, it gives the GR Corolla a powerful impression.

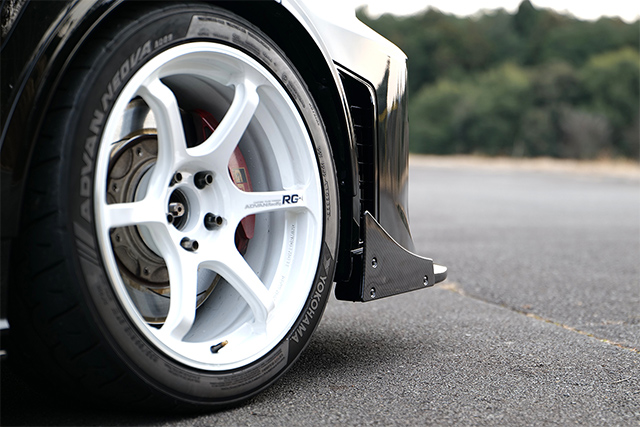

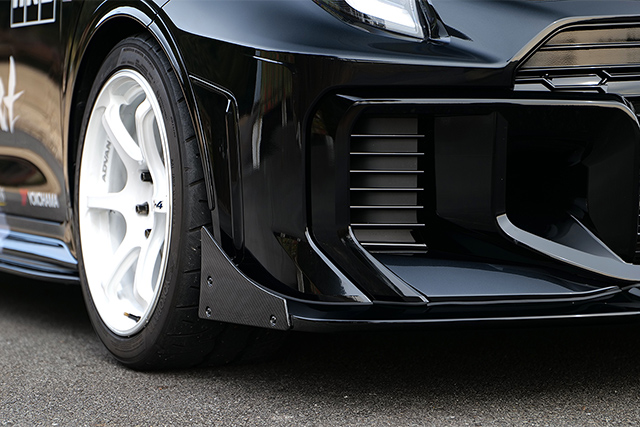

• Carbon fiber barge panels are attached to both ends, providing ideal airflow streamlining and a subtle racing look.
• With an additional 45mm extension, the GR Corolla looks even more powerful.

Side Skirt

• Simple side skirts are designed to balance with the stock body design.
• While the concept is simplicity, the front is stylish so that the balance can be seen when standing next to the vehicle.
• The rear area is shaped to affix the HKS emblem.

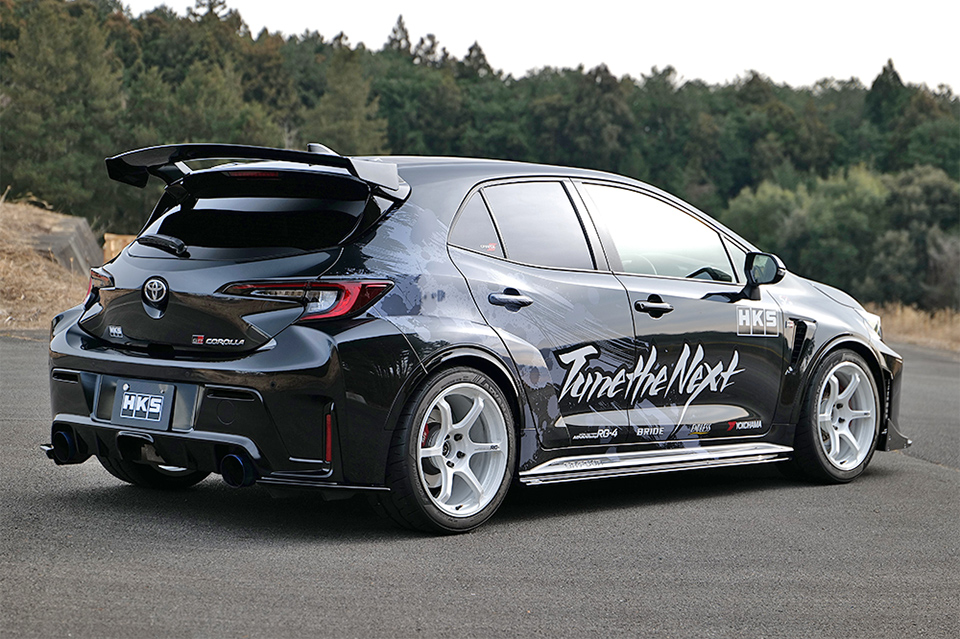

Rear Spoiler

Wing Rear

●Performance

• In terms of performance, various positions and angles were considered and selected using CFD analysis to ensure that the air passing through the roof could be effectively directed under the wing.
• Smoke was used in a wind tunnel test to confirm that the wing shape was in line with the design intent.

●On-Track Validation (With / Without BODY KIT) at Fuji Speedway

• The performance differences with and without the BODY KIT can be clearly experienced.
• Braking stability is significantly improved.
• Understeer is reduced, and its onset becomes more progressive and controllable.
• Rear-end stability is enhanced.
• Vehicle behavior near the limit becomes smoother and more predictable, making the car easier to drive at high speeds.
• Repeated high-speed testing at speeds exceeding 200 km/h was conducted to ensure sufficient strength and durability.

●Estimated Installation Time

Product Code	Product	Time
53004-AT043	Front Bumper Spoiler	Approximately 2 hours
53004-AT032	Side Skirt	Approximately 3 hours
53004-AT033	Rear Spoiler	Approximately 1 hours
53004-AT034	Wing Rear	Approximately 2 hours

*Painting is required separately.

GR COROLLA Fender Molding

Body parts that combine beauty and functionality

[Concept]　Body parts that combine beauty and functionality

• Prevents wider tires/wheels from protruding out of the body.
• By splitting parts for both front and rear bumpers and fenders, it will not affect the ease of maintenance.
• Adding a touch of dress-up.
• By attaching it to a standard vehicle, it creates a sense of width.
• Designed for everyday use, this dress-up part complies with Japanese domestic safety standards, with a design that adds 8mm on each side.

[Styling]

[Material]

●Installation Time

Product	Time
Molding Fender	Approximately 1 hour

*Separate painting is required.
