ENGINE BLOCK COMPONENTS

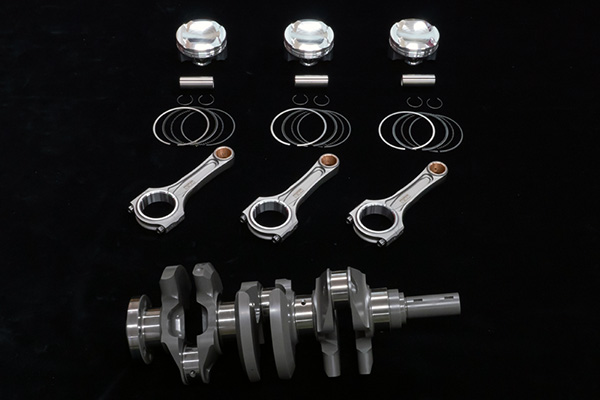

【Capacity Upgrade Kit G16E 1.75L KIT LOW-COMP STEP3】
A capacity upgrade kit for G16E-GTS has been newly added. Boost pressure can be built up from low rotation speeds even with large-capacity turbines.
Features

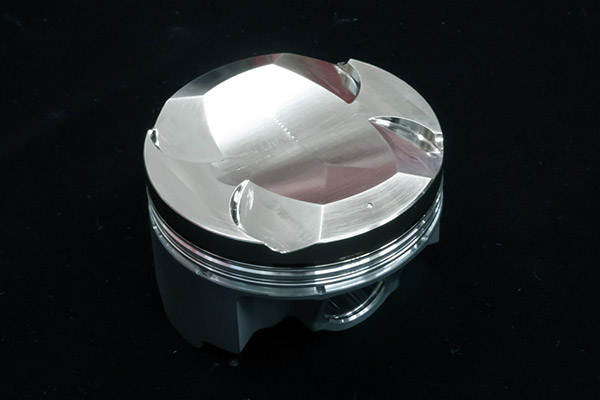

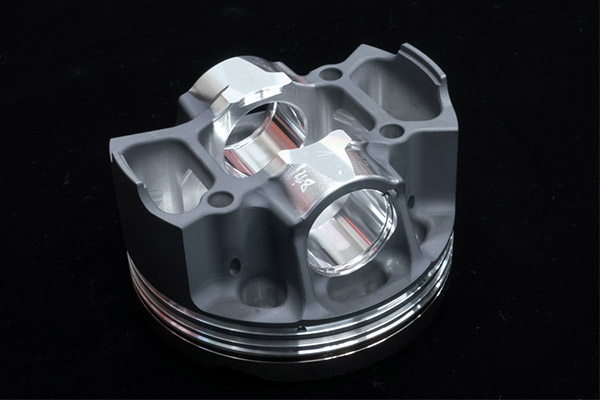

■Piston
Basic diameter: dia. 88 / Piston weight: 314g
- High temperature resistance A2618 material is used for thinner wall thickness and lighter weight.
- The billet processing reduces waste parts and achieves the lightest weight possible.
- The bridge-shaped structure increases the rigidity and allows weight reduction.
- Leads the cooling oil from the 3 oil jets to the proper location for effective cooling.
- Two-layer coating improves anti-seizing and reduces friction.
- Shortening the piston pin reduces the weight of the piston pin boss section.
- Dedicated pins with appropriate wall thickness are set to reduce weight.
- TOP RING improves the durability by titanium coating.

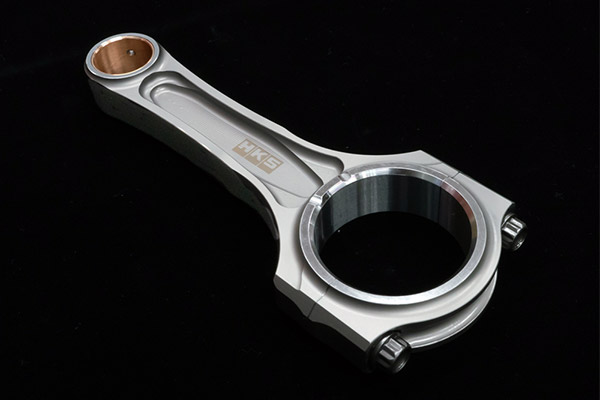

■Connecting Rod
- Uses machined nickel chrome alloy I-beam connecting rods.
- 25% stronger than the stock product.
- Compatible with a dia. 24 mm piston pin.
- The surface is finished with a WPC treatment to improve durability.

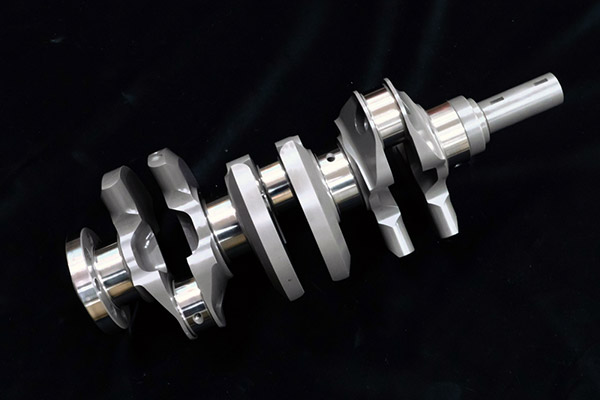

■Crankshaft
- Chrome steel-made full counter crankshaft.
- Inertia weight has been reduced by efficient counterweight placement and lighter pin parts.
- The balancer shaft was removed to improve response.
- 50% of the balance rate suppresses the vibrations unique to a three-cylinder engine.

Specification
純正 | HKS 1.75 LC S3 KIT | |||
---|---|---|---|---|
Bore | 87.5mm | 88.0mm | ||
Stroke | 89.7mm | 95.7 | ||
Displacement | 1,618cm3 | 1,746cm3 | ||
Compression Ratio | t=0.69 | Stock | 10.5 | 10.2 |
t=0.8 (0.79) | 23002-AT003 | - | 10.1 | |
23002-AT007 (S/C Pro) | ||||
t=1.0 (1.04) | 23002-AT006 | - | 9.9 | |
23002-AT008 (S/C Pro) |
Note
The stock balancer shaft cannot be used.
