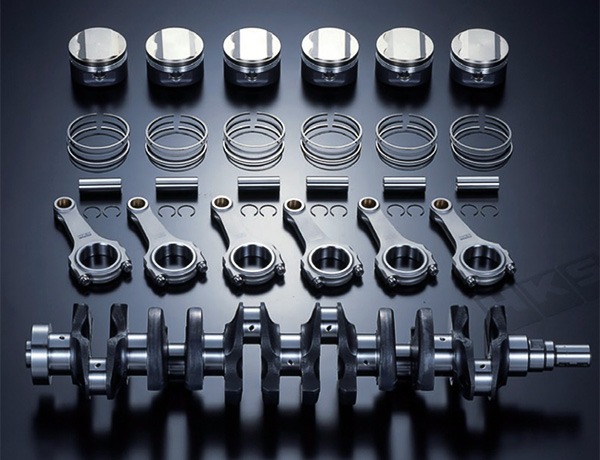

CAPACITY UPGRADE KIT RB26 2.8L STEP2 BCD

Based on the 2.8L STEP2 kit and upgraded with lightweight, high-rigidity forged "BCD" pistons.

BCD = A bridge design is a truss structure that is employed at the back of the piston to enhance the rigidity of the piston.

Specifications

  HKS 2.8L KIT Stock
Bore 87.0mm 86.0mm
Stroke 77.7mm 73.7mm
Compression Ration (t=1.2) 8.7 -

Max RPM

9,000rpm 7,600rpm
Displacement 2,771cc 2,568cc

Features

1. Piston Kit, Piston weight: 334g Piston Pin weight: 97g

  • Lightweight A2618 aluminum alloy billet piston with high temperature strength
  • Bridge design improves structural rigidity.
  • Profile optimization has shortened the Piston skirt height and reduced weight.
  • Short piston pit with lightweight boss part.
  • 2 layers of molybdenum coating to eliminate friction and improve initial functionality of the whole system.

2. Crankshaft Stroke 77.7 mm

  • Billet full counter crankshaft
  • Counterweights are efficiently located to decrease overall weight and improve overall balance.
  • Response is improved by reducing the weight of the pin journal and the center section by cutting the core of the pin journal to reduce the weight.

3. Connecting rods

  • Nickel Chrome Steel Billet H-Beam Connecting rods.
  • WPC treatment to improve strength

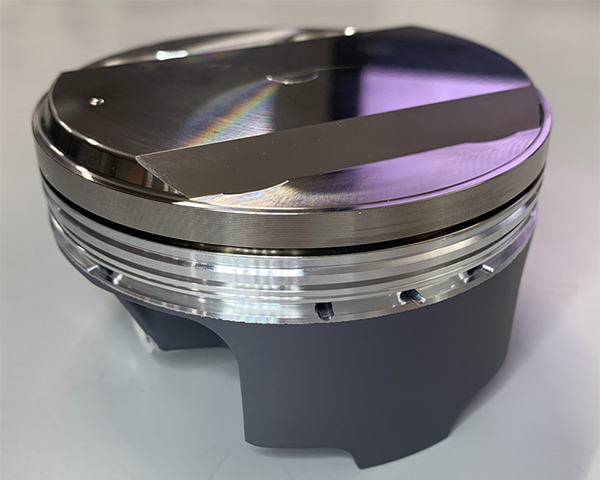

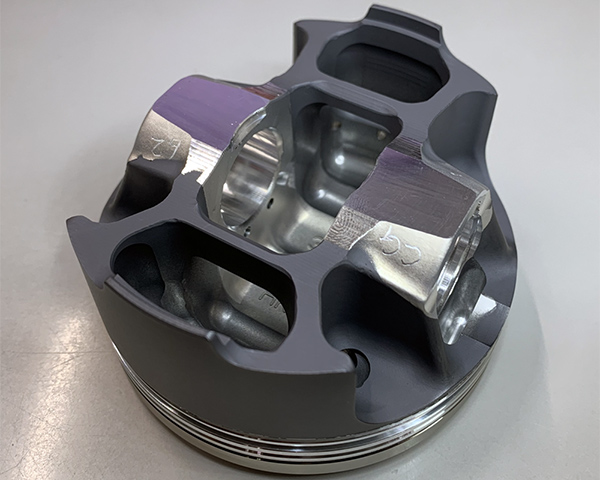

Highly rigid, lightweight piston with bridge design

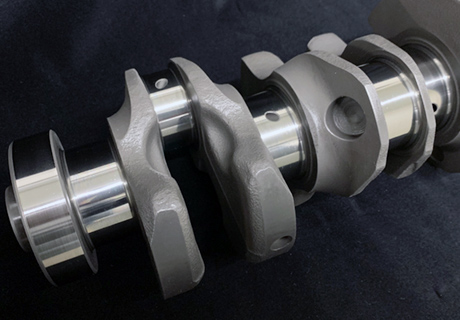

Billet full counter crankshaft

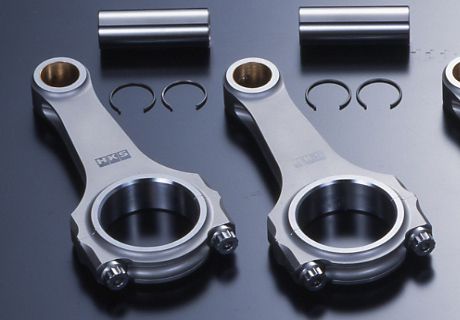

Nickel Chrome Steel Billet H-Beam Connecting rods.
