HKS COMPLETE ENGINES

COMPLETE ENGINE

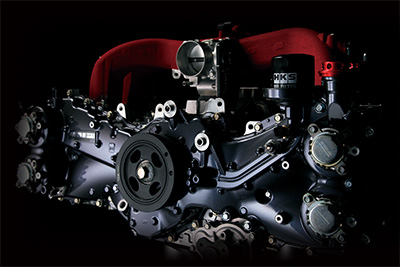

FA20 2.2L complete engine build with forced induction in mind. STEP 1 to 3 is available with a variety of specifications.

  • Oil jets were added for piston cooling
  • 0.5 oversize bore to improve cylinder accuracy. Adopt special low compression piston to match it
  • ARP Strengthened Main Bolts
  • Forged I-Beam Connecting Rods (STEP1) and Forged Crankshaft
  • ACL Connecting Rod Bearings
  • Grommet Gasket for improved combustion chamber sealing
  • High Angle Camshafts to boost high end performance
  • Strengthened close block (STEP2/3)
  • Billet I-Beam Connecting Rods (STEP2/3)
  • Oversize Head Bolts (STEP2/3)
  • Berylium-Free Copper valve seat and phosphor bronze guides to improve heat dissipation (STEP2/3)
  • Hand ported and polished intake and exhaust ports (STEP2/3)
  • Welded water jacket holes and strengthened engine head (STEP3)

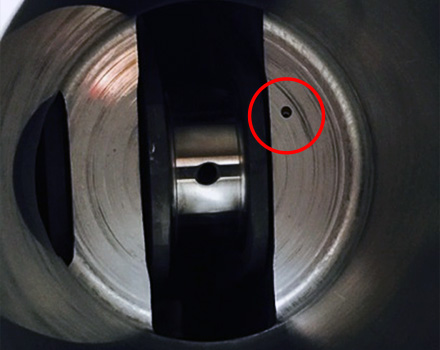

  • Added Oil Jets

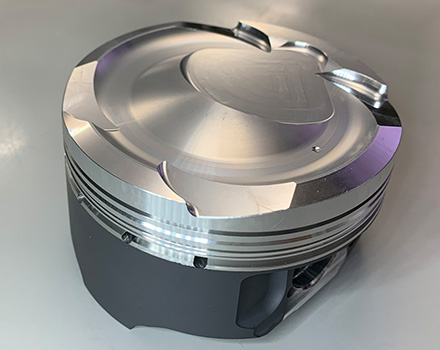

  • 0.5 oversize low compression pistons.

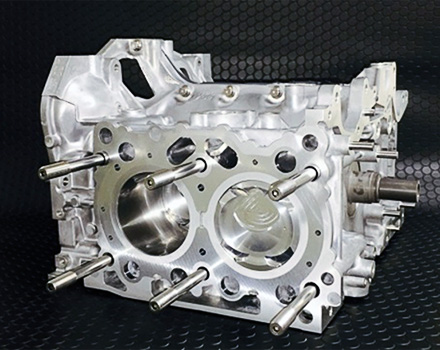

  • Closed deck with strengthened head bolts

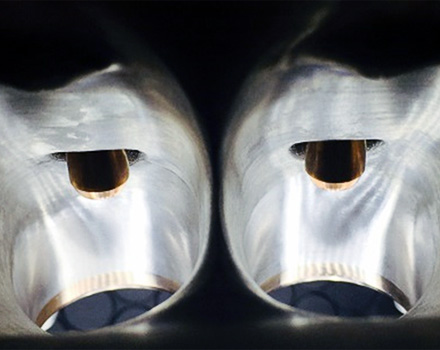

  • Modified valve set and guides, and polished intake/exhaust

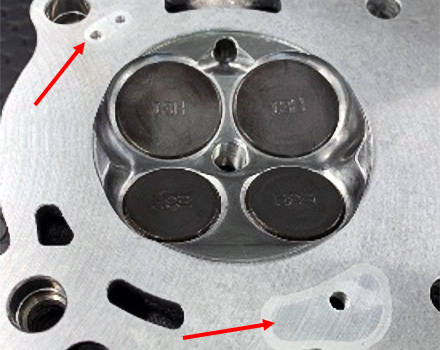

  • High Precision Laser welded water jacket holes

Specifications

  HKS 2.2L KIT Stock
Bore 86.5mm 86.0mm
Stroke 90.0mm 86.0mm
Compression (t=0.84) 10.4 -
Displacement 2,116cc 1,998cc

COMPLETE ENGINE FA20 2.2L

    STEP1 STEP2 STEP3
Engine Head
Modifications
Welded Water Jacket Holes
Berylium-Free Copper Valve Seat
and Phosphor Bronze guides

Ported and polished
intake and exhaust

Polished combustion chamber
Engine Block
Modifications
Closed Deck
Added Oil Jets
0.5 Oversize boring
Polished deck surface
Main Bolts Strengthened ARP Strengthened ARP Strengthened ARP
Oil Jets One for each cylinder One for each cylinder One for each cylinder
Piston HKS Forged Low Comp 0.5
Oversize Piston
HKS Forged Low Comp 0.5
Oversize Piston
HKS Forged Low Comp 0.5
Oversize Piston
Conrod HKS Forged I-Beam Conrod HKS Forged I-Beam Conrod HKS Billet I-Beam Conrod
Crankshaft HKS Forged HKS Forged HKS Forged
Main Bearing Stock + WPC Stock + WPC Stock + WPC
Conrod Bearing ACL ACL ACL
Head Stud Strengthened ARP Strengthened ARP 1/2” Strengthened ARP 1/2”
Head Gasket Grommet Type (t=0.84) Grommet Type (t=0.84) Grommet Type (t=0.84)
Camshaft IN 260° / EX 266° IN 260° / EX 266° IN 260° / EX 266°
