HKS COMPLETE ENGINES

COMPLETE ENGINE

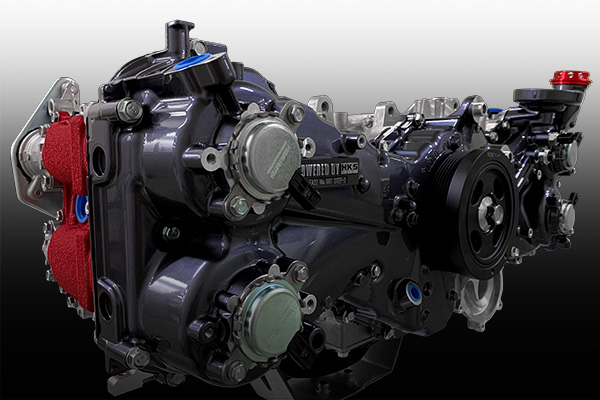

HIGH-COMP complete engine handcrafted by the artisans with high-skills in FA20 2.1L kit for NA & SUPERCHARGER users

  • More durable benefit from forged High Comp piston
  • Withstand more torque by forged I-Beam connecting rod
  • Stroke and strength increased by forged crankshaft
  • Superior resistance connecting rod bearing
  • Prevent gasket failure with strengthened bolts and metal gasket

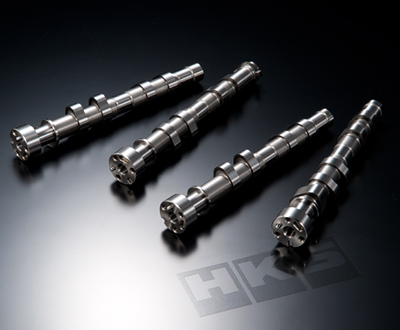

  • High RPM revving up improved by IN 260°/EX 266° camshafts
  • Built with strengthened parts targeting torque up to 600 N-m

* HKS Racing Pro 10W50 engine oil is recommended

  • Wide angel crankshaft for revving up in high RPM

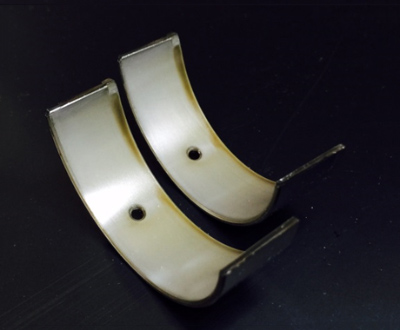

  • Strengthened connecting rod bearing able to withstand high torque

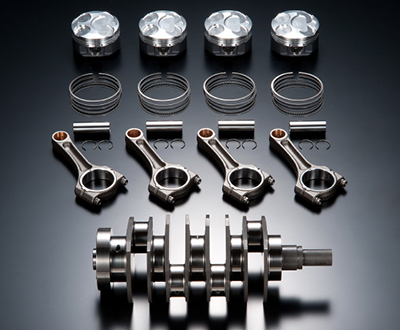

  • Forged High Comp Piston・Forged I-Beam Connecting Rod・Forged Crankshaft

Engine Specifications

  HKS C/E FA20 2.1L STEP0 Stock
Bore 86.0mm 86.0mm
Stroke 90.0mm 86.0mm
Compression (t=0.7) 12.0 -
Capacity 2,091cc 1,998cc

COMPLETE ENGINE FA20 2.1L STEP0

Main Bolt ARP
Oil Jet 1 pc for each cylinder
Piston HKS Forged High Comp φ86
Connecting Rod HKS Forged I-beam
Crankshaft HKS Forged
Main Bearing FACTORY + WPC*
Connecting Rod Bearing ACL
Head Stud ARP
Head Gasket HKS stopper type (t=0.7)
Camshaft HKS IN 260°, EX 266°

* WPC = Wide Peening and Cleaning
