ENGINE BLOCK COMPONENTS

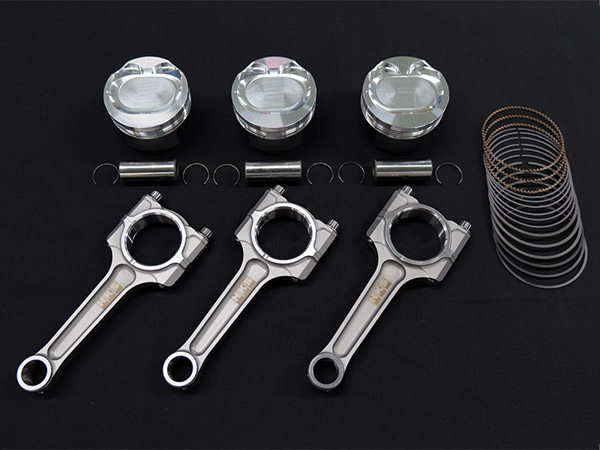

BCD PISTON + CONROD KIT S07A STEP3 Φ64

The enhanced piston and connecting rod correspond to the high supercharging pressure and output for the S07A engine.

Feature

■Piston Kit

  • It achieves lightweight by allowing the wall thinner by adopting the A2618 material with high-temperature strength.
  • The lightweight comes from eliminating waste material by billet manufacturing.
  • Rigidity has been structurally improved by adopting the bridge structure. As a result, the product achieves a perfect balance between lightweight and rigidity.
  • The crown-shaped surface has the same shape as the OEM one.
  • It also achieves improved anti-seizure properties and reduced friction by adopting a 2-layer coating.

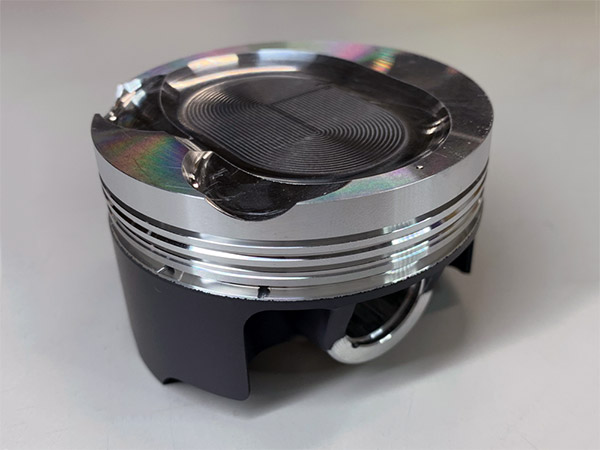

The surface has the same crown shape as the OEM one.

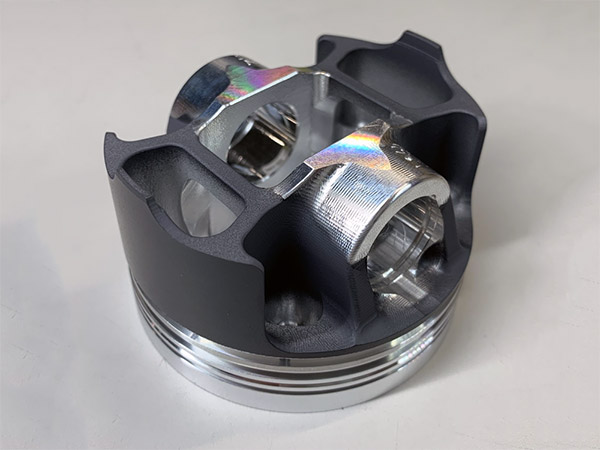

Achieve balance between lightweight and rigidity thanks to a bridge structure.

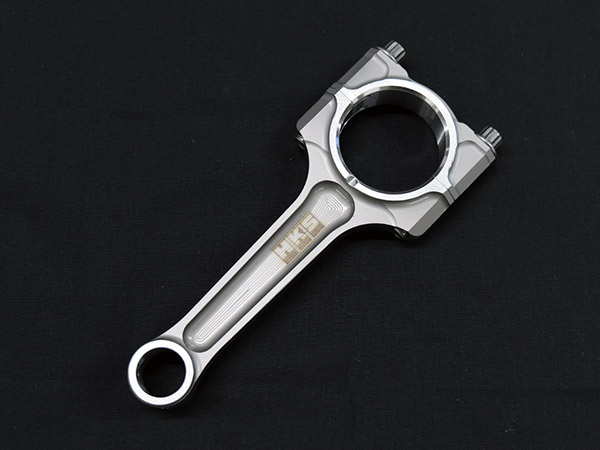

■Connecting Rod

  • Billet chrome steel I-beam connecting rod. It increased the strength by approximately 74% against the OEM product.
  • Applying the WPC treatment on the surface to improve the fatigue strength.

Attention

Vertical vibration has been increased a little due to the weight being different between the OEM and HKS products.

Specification

  OEM HKS KIT
Bore 64.0 mm 64.0 mm
Stroke 68.2 mm 68.2 mm
Compression Ratio
(t=0.55)
9.2 9.5
Displacement 658 cc 658 cc

* It is possible to change the compression ratio by using the HKS metal head gasket (sold separately).
