ENGINE BLOCK COMPONENTS

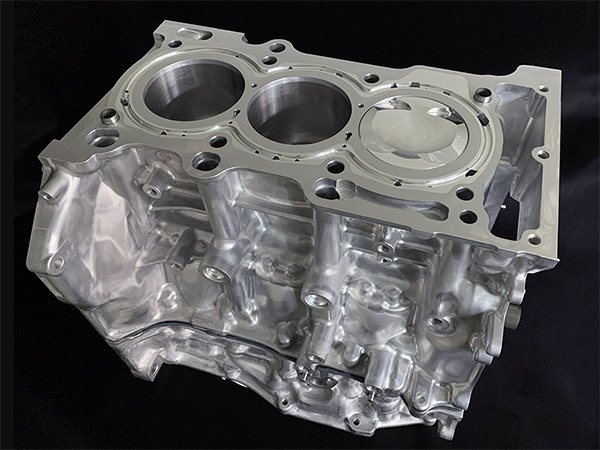

SHORT BLOCK G16E 1.75L LOW-COMP STEP3 CLOSED-DECK SHORT BLOCK G16E 1.75L LOW-COMP STEP3 CLOSED-DECK

A new low-compression specification G16E 1.75L short block is now available!
Featuring a closed-deck design, consistent with the popular HIGH-COMP version.

  • Pleased to announce the release a short block assembled with the BCD Piston Full Kit G16E 1.75L LOW-COMP STEP3.

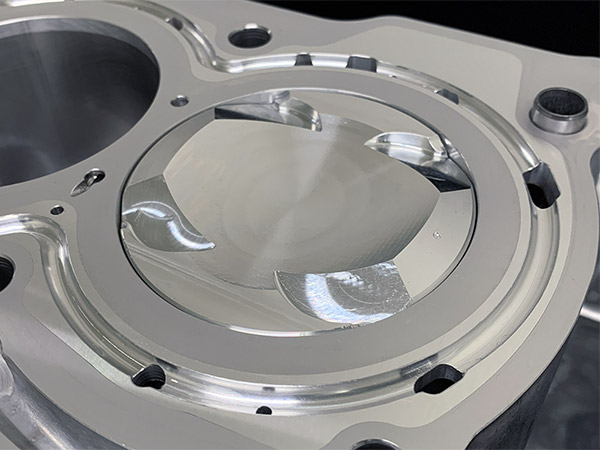

  • The closed-deck design was adopted to minimize cylinder deformation and to accommodate high combustion pressure.
  • The flow of cooling water changes when the deck is closed, but we have optimized it by machining the water jackets.
  • Additional cooling water jacket have been added to Cylinder No.2, intended for use with the "Grommet Head Gasket SUPER COOLING Pro".
  • The deck surface has been machined to improve flatness.
  • Boring has been performed to improve the cylindricity of the cylinder. After processing, the main gallery is thoroughly cleaned to reduce the risk of trouble.
  • The pistons feature a “BCD (bridge construction)” design, achieving both lightweight performance and high rigidity.
  • A machined I-Beam STEP3 connecting rod is utilized. Achieving a 25% increase in strength compared to OEM and improving a higher torque capacity.
  • The crankshaft is machined from chrome steel. The inertia weight has been reduced by efficiently positioning the counterweight and reducing the weight of the pin.
  • The main bearings and connecting rod bearings are made of highly durable materials.

Note: Stock balance shafts cannot be used with this setup.

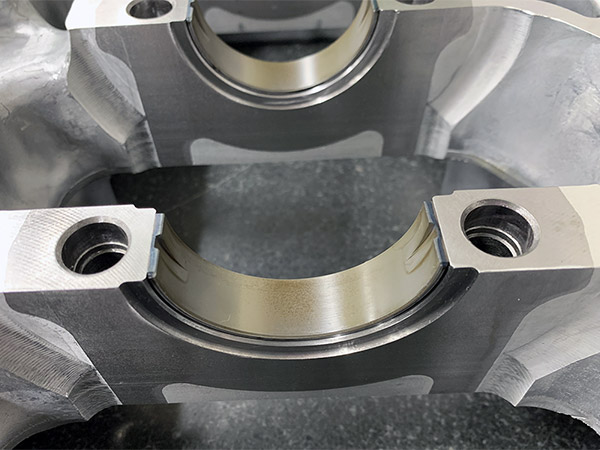

Main bearings with excellent load capacity

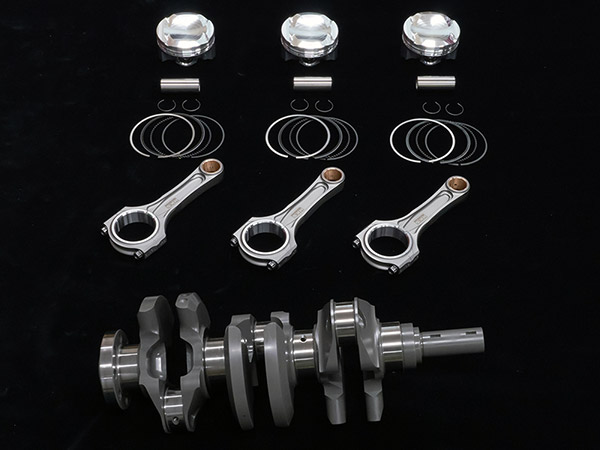

BCD Piston Full Kit G16E 1.75L LC STEP3

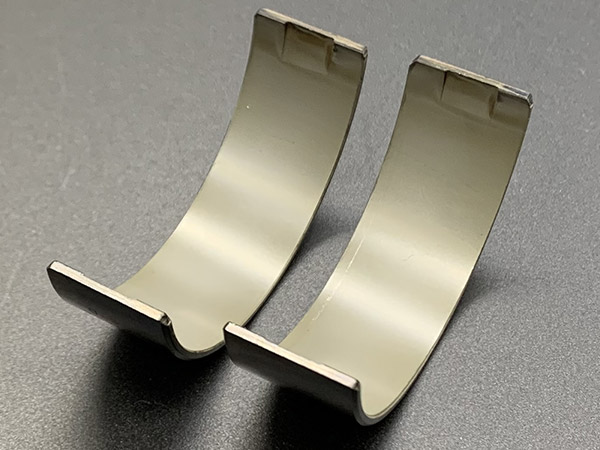

  • Connecting rod Bearings with excellent load-bearing capacity

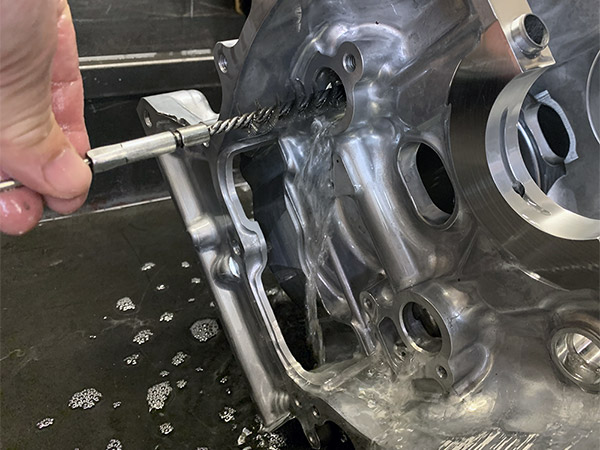

  • Main gallery thoroughly cleaned

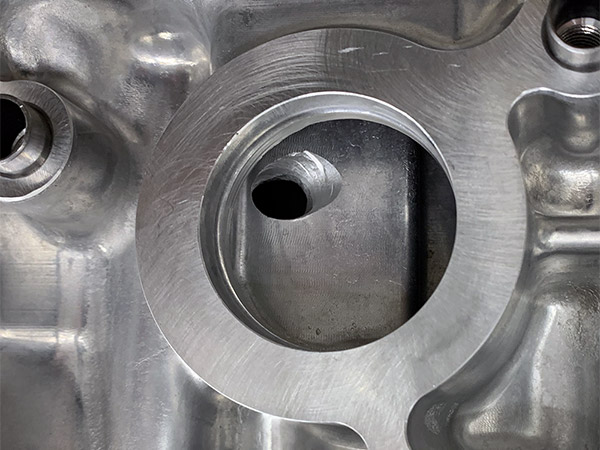

  • Additional cooling channels are add to optimize the closed deck's cooling flow.

SHORT BLOCK G16E 1.75L LC STEP3 CLOSED-DECK

Piston HKS machined low comp (BCD)
Conrod STEP 3: HKS high-strength machined I-Beam
Crankshaft HKS machined full counter
Main Bearing ACL
Conrod Bearing ACL

*We recommend using HKS Racing Pro 10W50 engine oil.

Specs

  HKS 1.75L LC KIT Stock
Bore 88.0mm 87.5mm
Stroke 95.7mm 89.7mm
Capacity 1,746cc 1,618cc

When using this short block, we recommend using it in conjunction with the following products

GROMMET HEAD GASKET KIT SUPER COOLING Pro

*The compression ratio is a reference value when this short block is used.

Engine Thickness (mm) Compression Ratio Bore Code No. Package Size (mm) Remarks
G16E-GTS 0.8 11.6 Φ89変形 23002-AT007 505×225×16
1.0 11.3 Φ89変形 23002-AT008 505×225×16

HEAD STUDS KIT Pro

Product Engine Capacity (ml) Code No. Package Size (mm) Remarks
HEAD STUDS KIT Pro G16E-GTS G16E-GTS 1746 22999-AT001 206×136×75
