ENGINE BLOCK COMPONENTS

SHORT BLOCK EJ20 2.2L

A short block that including the EJ20 2.2L Capacity Upgrade kit

  • Installed the Capacity Upgrade Kit EJ20 2.2L to a brand-new block cylinder.
  • Inside of the cylinder block is provided with clearance for installing the capacity upgrade kit.
  • Providing 0.5mm oversized boring processing using dummy head jig for improving cylinder accuracy.
  • The top surface of the right/left deck is polished.

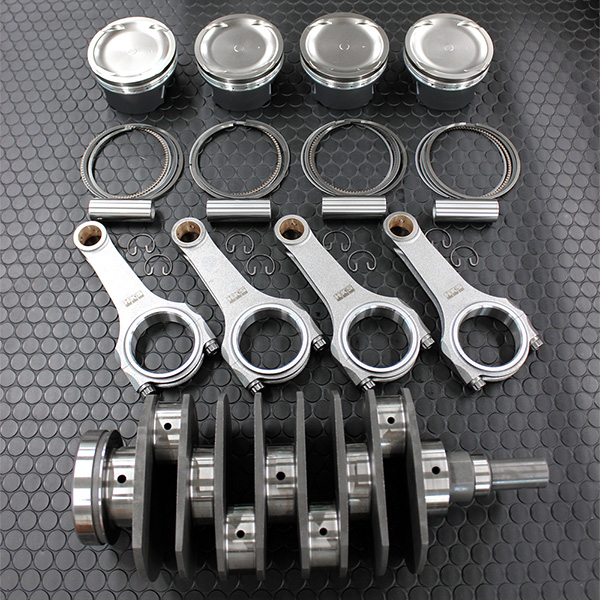

EJ20 2.2L Capacity Upgrade kit installed

Special Forged Piston

  • Top surface > Ni plating
  • Piston skirt > OBER COAT®
  • Special piston ring

Connecting Rod

  • Billet H-beam

Billet Special Crankshaft

  • All billet
  • Full counterweight

Specifications

  HKS 2.2L KIT Stock
Bore 92.5mm 92.0mm
Stroke 79.0mm 75.0mm
Compression Ratio (t=0.7) 8.34 -
Displacement 2,124cc 1,994cc

SHORT BLOCK EJ20 2.2L

Block Modifications Connecting rod side clearance
0.5 mm oversize boring
Deck surface polish
Main Bolt SUBARU product
Piston HKS forged piston 0.5 mm oversize
Connecting Rod HKS billet H-beam
Crankshaft HKS billet
Main Bearing ACL
Connecting Rod Bearing SUBARU product
SHORT BLOCK
