ENGINE BLOCK COMPONENTS

SHORT BLOCK FA20 2.2L

【SHORT BLOCK FA20 2.2L】

Short block built with FA20 2.2L LOW COMP KIT essential for high power turbo engine. Closed deck design significantly improved strength from open deck.

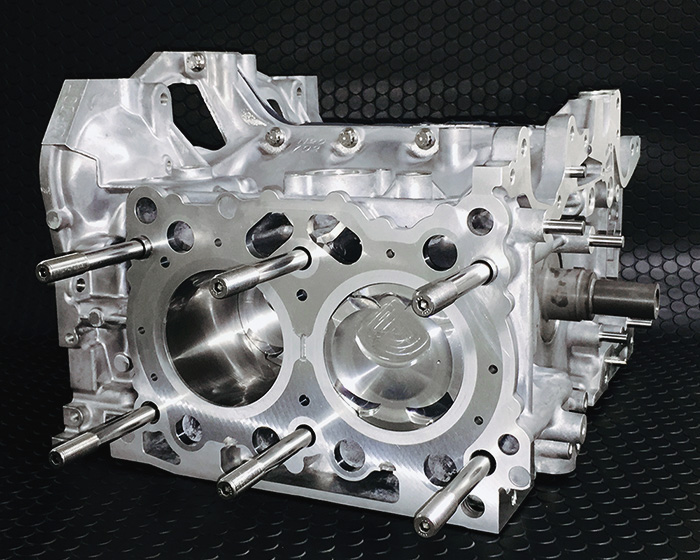

Closed decking machining (by new genuine block)

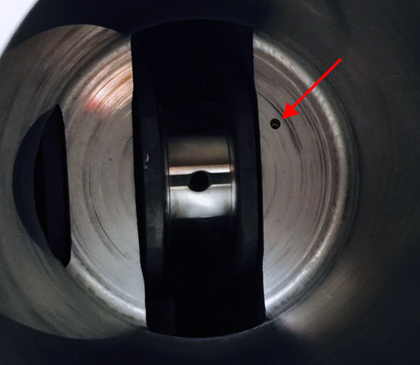

Additional oil jets for cooling down piston
0.5mm oversize boring
Flat grinding deck finish
Strengthened cylinder bolts
0.5mm oversize LOW COMP pistons
Head bolt diameter-enlarged for improved heat transfer
*HKS grommet gasket sold separately is recommended for enlarging the hole in head side

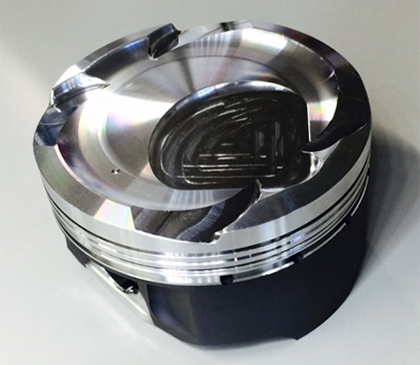

Piston coated by two-layer molybdenum for less friction.

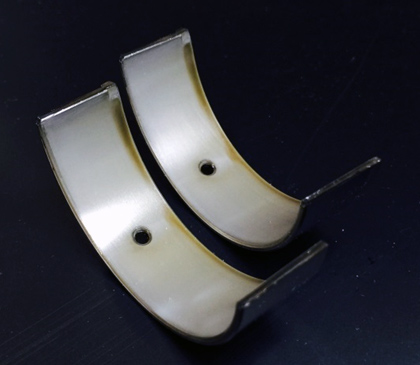

Specially selected rod bearings which is durable to withstand high torque
Additional oil jets for cooling down piston

Specifications

	HKS 2.2L KIT	Stock
Bore	86.5mm	86.0mm
Stroke	90.0mm	86.0mm
Compression (t=0.84)	10.4	-
Compression (t=1.24)	10.5	-
Displacement	2,116cc	1,998cc

SHORT BLOCK FA20 2.2L

Block Modifications	Closed Deck
	Added Oil Jets
	0.5 Oversize boring
	Flat grinding deck
Main Bolts	Strengthened ARP
Oil Jets	One for each cylinder

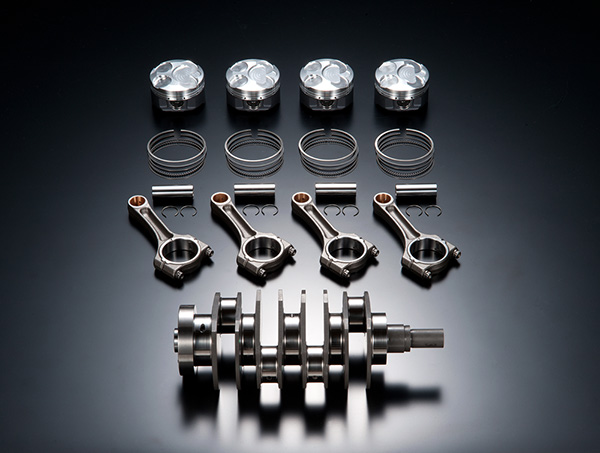

Piston	HKS Forged Low Comp 0.5 O/S
Connecting Rod	HKS Forged H-beam
Crankshaft	HKS Forged
Main Bearing	Stock + WPC
Connecting Rod Bearing	ACL
Head Stud	ARP 1/2” Strengthened Bolts (Accessory)
