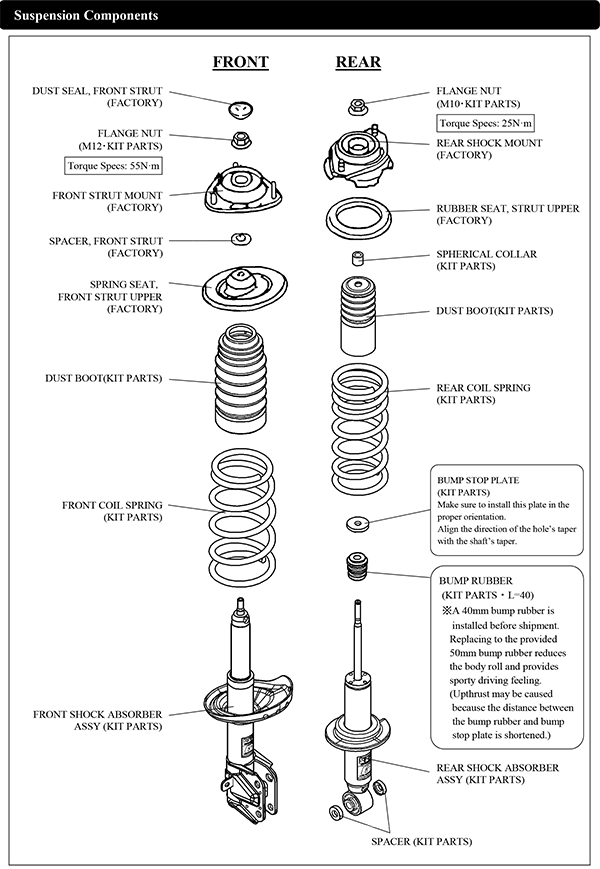

- ＜Product Basic Structure＞
- ●Single Tube Damper Assembly
- ●Special Low-down Style Spring
- ※The stock upper mounts are used.
|
 |
Features
- Stock damper’s long stroke and front offset springs are utilized to deliver better ride performance.
- Similarly to Hipermax series, the front inverted damper delivers higher rigidity.
- The vehicle height is lowered casually to addresses the ease of driving and usability in daily use even with the optional aero parts.
|
 |
Kit Parts |
 |
| VEHICLE |
MODEL |
ENGINE |
YEAR |
SPRING RATE
[N/mm (kgf/mm) ] |
FREE LENGTH(mm) |
VEHICLE'S HEIGHT
Default(High-Low) |
CODE NO. |
UPPER
MOUNT |
UPPER MOUNT
CHANGE BEFORE
SHIPMENT |
SPRING RATE
CHANGE BEFORE
SHIPMENT |
Remarks |
| LEVORG |
VMG
VM4 |
FA20
FB16 |
14/6～ |
F=29(3.0)
R=67(6.8) |
FIXED |
F=-8/R=-7(VMG)
F=-5/R=-4(VM4) |
80260-AF003 |
F=Stock
R=Stock |
N/A |
F=N/A
R=N/A |
|
|
