- ＜Product Basic Structure＞
- ●Single Tube Damper Assembly
- ●Special Low-down Style Spring
- ※The stock upper mounts are used.
|
 |
Features
- Maintaining the stock (genuine) design structure enables “high ride quality” and “adequate low-down” to be implemented together.
- The front stock design inverted mono tube damper delivers high rigidity and reliable handling performance for a heavyweight minivan.
- The long stroke that was difficult in a conventional shock absorber has been realized. The stable driving is possible while preventing the wheels of the vehicle from levitating.
- This product was designed exclusively for 4WD model to focusing on higher ride quality with heave vehicle body weight.
- "Made in Japan" manufacturing quality is guaranteed by high quality components machined and finished within HKS’ ISO-certified facilities.
|
 |

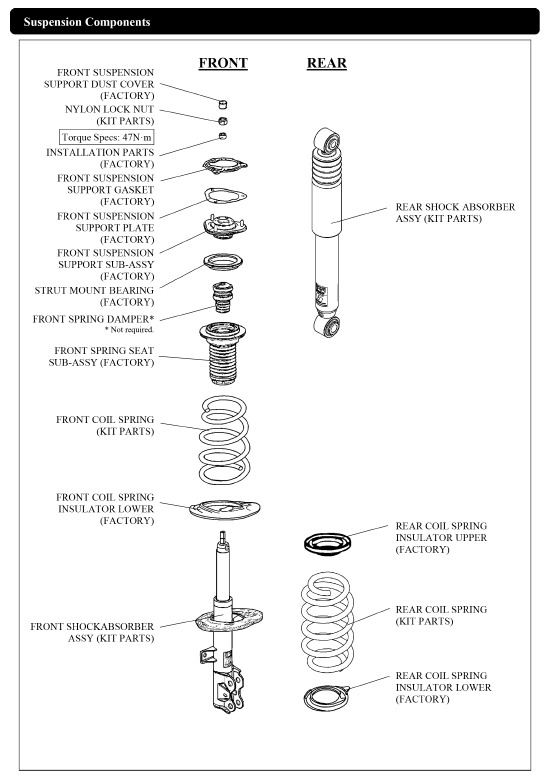

Kit Parts |
 |
| VEHICLE |
MODEL |
ENGINE |
YEAR |
SPRING RATE
[N/mm (kgf/mm) ] |
FREE LENGTH
(mm) |
VEHICLE'S
HEIGHT Default
(High-Low) |
CODE NO. |
UPPER
MOUNT |
UPPER MOUNT
CHANGE BEFORE
SHIPMENT |
SPRING RATE
CHANGE BEFORE
SHIPMENT |
Remarks |
ALPHARD
VELLFIRE |
AYH30W
AGH35W
GGH35W |
2AR-FXE
2AR-FE
2GR-FE |
15/01- |
F=29(3.0)
R=60(6.1) |
Specially-developed |
F=-35
R=-38 |
80260-AT002 |
F=Stock
R=Stock |
N/A |
F=N/A
R=N/A |
・Not compatible with a vehicle equipped with the side lift-up seat.
・The vehicle height data is based on a hybrid model (AYH30W). |
|
