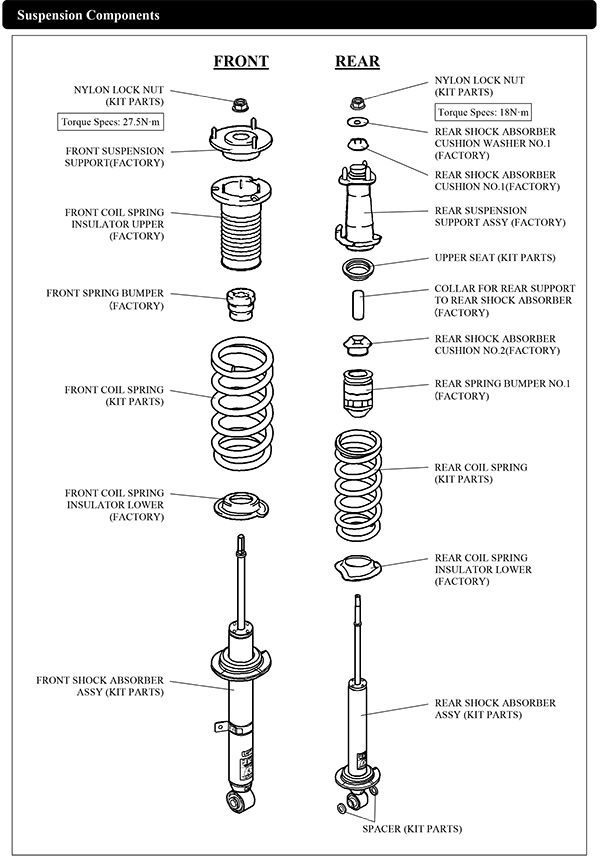

- <Product Basic Structure>
- ●Single Tube Damper Assembly
- ●Special Low-down Style Spring
- ※The stock upper mounts are used.
|
 |
Features
- Utilizing the stock suspension structure for Hipermax G series provides a better durability and ride quality than its original even after lowering vehicle’s height. Stock's instability feeling is eliminated to deliver reliable driving even in cornering.
- Damper setting was performed with the best spring rate to ensure better ride quality and comfort so a driver won't be tired even in long time driving.
- The excessive body roll of a vehicle during cornering and unstable driving in high speed driving are reduced to deliver a well-balanced ride quality and handling.
|
 |
Kit Parts |
 |
VEHICLE |
MODEL |
ENGINE |
YEAR |
SPRING RATE
[N/mm (kgf/mm) ] |
FREE LENGTH
(mm) |
VEHICLE'S HEIGHT
Default(High-Low) |
CODE NO. |
UPPER
MOUNT |
UPPER MOUNT
CHANGE BEFORE
SHIPMENT |
SPRING RATE
CHANGE BEFORE
SHIPMENT |
CROWN |
GRS214 |
2GR-FSE |
12/12~ |
F=57(5.8)
R=56(5.7) |
SPECIAL |
F=-19/R=-16 |
80260-AT008 |
F=Stock
R=Stock |
N/A |
F=N/A
R=N/A |
ARS210 |
8AR-FTS |
15/10~ |
F=-20/R=-21 |
Remarks |
※After installation of this product, the irradiation range of a millimeter wave radar and monocular camera may become narrow, and malfunction of TSSP may be caused due to displacement of the alignment’s center. |
|
