- ＜Product Basic Structure＞
- ●Single Tube Damper Assembly
- ●Special Low-down Style Spring
- ※The stock upper mounts are used.
|
 |
Features
- Utilizing its advantage as a stock suspension structure and long stroke shaft enable to provide stable and supple driving even after lowering vehicle’s height.
- The spring rate is reduced to improve stock's rough driving feeling and upgrade it to high quality.
- This product improves the performance at cornering and reduce the instability and unnecessary movement.
|
 |

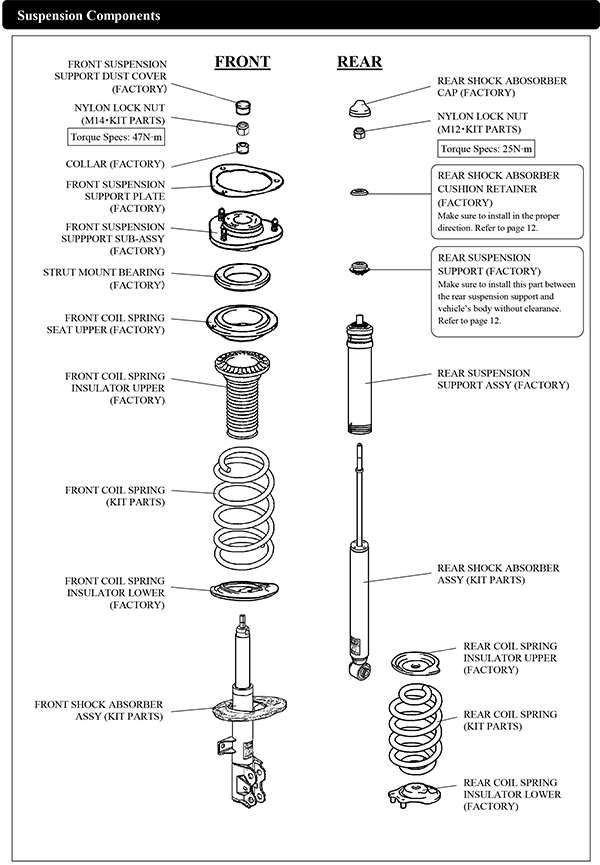

Kit Parts |
 |
| VEHICLE |
MODEL |
ENGINE |
YEAR |
SPRING RATE
[N/mm (kgf/mm) ] |
FREE LENGTH(mm) |
VEHICLE'S HEIGHT
Default(High-Low) |
CODE NO. |
UPPER
MOUNT |
UPPER MOUNT
CHANGE BEFORE
SHIPMENT |
SPRING RATE
CHANGE BEFORE
SHIPMENT |
Remarks |
| ESTIMA |
GSR50W |
2GR-FE |
06/01～ |
F=29(3.0)
R=72(7.3) |
Specially-developed |
F=-40/R=-35 |
80260-AT009 |
F=Stock
R=Stock |
N/A |
F=N/A
R=N/A |
For 2WD. Not compatible with 4WD and hybrid model. |
| ACR50W |
2AZ-FE |
F=-26/R=-27 |
|
