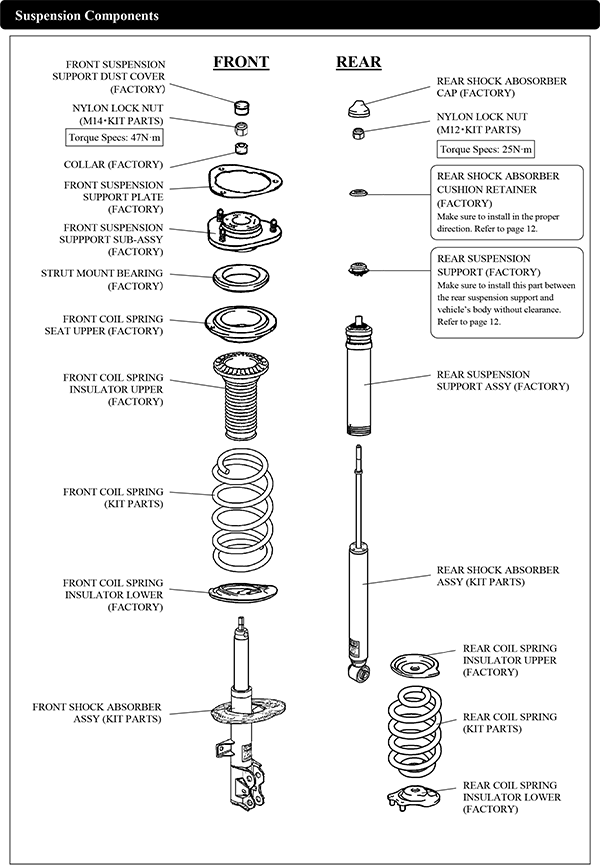

- <Product Basic Structure>
- ●Single Tube Damper Assembly
- ●Special Low-down Style Spring
- ※The stock upper mounts are used.
|
 |
Features
- Utilizing the stock suspension structure for Hipermax G series provides a better durability and ride quality than its original even after lowering vehicle’s height.
- The lack of handling and comfortable feeling in stock suspension is firmly controlled in this damper. non-adjustable spring and damper combination technique provides the pleasure in driving.
- It is recommended for those who want to low down the car and close the gap of the fender a bit more than stock but also without giving up the riding comfort and reliability.
|
 |
Kit Parts |
 |
VEHICLE |
MODEL |
ENGINE |
YEAR |
SPRING RATE
[N/mm (kgf/mm) ] |
FREE LENGTH(mm) |
VEHICLE'S HEIGHT
Default(High-Low) |
CODE NO. |
UPPER
MOUNT |
UPPER MOUNT
CHANGE BEFORE
SHIPMENT |
SPRING RATE
CHANGE BEFORE
SHIPMENT |
Remarks |
Alphard
Vellfire |
GGH20W |
2GR-FE |
08/05~
15/1 |
F=29(3.0)
R=67(6.8) |
Specially-developed |
F=-34/R=-36 |
80260-AT010 |
F=Stock
R=Stock |
N/A |
F=N/A
R=N/A |
2WD |
ANH20W |
2AZ-FE |
F=-24/R=-32 |
|
