R type INTERCOOLER
LANCER EVOLUTION X
Explanation of the product Application chart
LANCER EVOLUTION X CZ4A

R type INTERCOOLER

Code No. 13001-AM006






R type AL／13001-AM006





■FEATURES

  • R type core, which is large capacity + low pressure loss type, was selected. Performance will be improved even with stock ECU.
  • High performance "φ70 Piping spec" and low cost ". (Stock Piping is φ60.)
  • Core size (525 x 304 x 103), Stock (490 x 292 x 65)
  • Stock air cleaner box, Racing Suction Reloaded, SSQV, Intercooler Piping Kit can be used together.

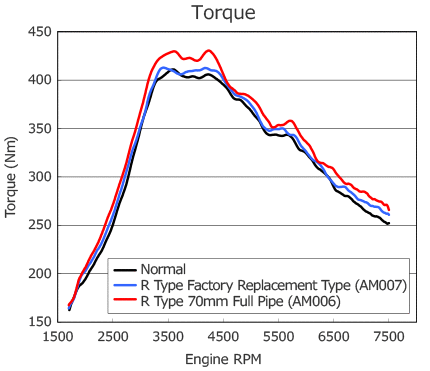

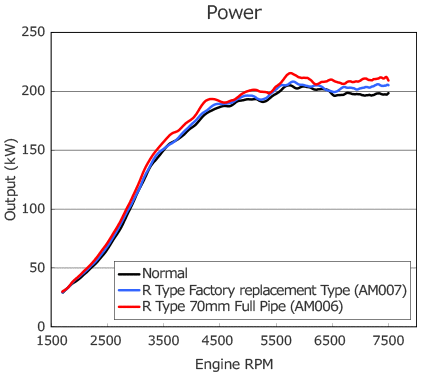

■PERFORMANCE



【TEST CAR SPEC.】

Vehicle LANCER EVOLUTION X Muffler LEGAMAX Premium
Model CZ4A Other exhaust part METAL CATALYZER + Center Pipe
Engine Model 4B11 Air Cleaner Racing Suction R
Grade GSR ECU Stock
Transmission TC-SST Boost pressure control Stock solenoid





■SPECIFICATION

Code # 13001-AM006 13001-AM007
Spec. φ70 full piping Stock replacement
Core ASSY Polished tank Not polished tank
Inlet pipe φ70 × 3 (1 is buff) φ60 X × (no buff)
Outlet pipe φ70 × 2 (1 is buff) None
  Other bracket Other bracket

* Can't see side tank for stock bumper





■REMARKS

  • Modification of head lamp support upper panel, reinforcement and air con pipe are required during installation.
  • Re-setting of ECU is not required.
  • Area of core will be larger than stock and it is thicker. Therefore, upgrading of radiator is recommended for sport driving.





Vehicle Model Engine Model Year Type Core Size・Location Type Code No. Manual Remarks
LANCER EVOLUTION X CZ4A 4B11 07/10 -15/09 R type INTERCOOLER 525×304×103・Front mount R type AL 13001-AM006 φ70 pipe. Stock part(5256A832) is required for RS and all grade after 09/10.
