OIL COOLER KIT for VAB WRX STI (VAB)

■Concept and Features

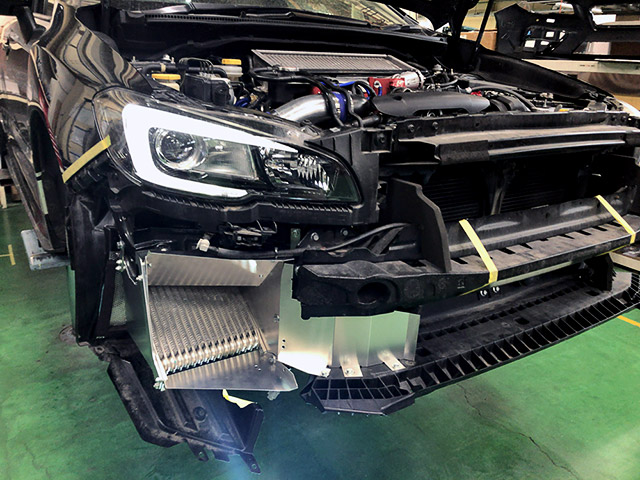

48mm thick oil cooler mounted on driver side.
Includes air duct that directs cold air through the oil cooler core. After passing through oil cooler core, air exits to the outside through the vents in the wheel arch.
Although its installed in the fender area fog lamps can still be used.

■Remarks

Installation requires modifications of mud guard, under cover, front bumper, air cleaner, horn bracket, exhaust manifold heat insulator.
Prepare 5.5 L of engine oil.

Vehicle	Model	Engine	Model Year	Core Size・Row	Core Location	Type	Hose Size	Aluminum Air Guide	Code No.	Manual	Remarks
WRX STI	VAB	EJ20	14/08 -20/04	200x220x48・15	Inside right bumper	S type	#10	○	15004-AF111		Time Required: 6 hours. E/G Oil Reguired: 5.5l. S type Intercooler, #10 Hose size, Aluminum Air guide. EJ20 Only.
