INTERCOOLER KIT GXPA16 Gen2 DAT





HKS Intercooler Kit for GR Yaris Gen2 DAT (8-speed automatic) models!









■OEM Intercooler

Core Size: L645×W145×H80(mm)
Specification: 10-row fin design, 9-row tube design
Inlet Tank: Aluminum
Outlet Tank: Resin
Hoses: 1-ply

■HKS Intercooler

Core Size: L645×W205×H105(mm)
Specification: 12-row fin design, 11-row tube design
Inlet Tank: Aluminum
Outlet Tank: Aluminum
Hoses: 4-ply





■Features

  • A newly developed intercooler kit exclusively for the GR Yaris Gen2 DAT (GR-DAT / 8AT).Although designed as a direct OEM replacement, increased core height and thickness provide stable and improved cooling performance.
  • Although designed as a direct OEM replacement, increased core height and thickness provide stable and improved cooling performance.
  • By optimizing the fin design, cooling efficiency is maintained while ensuring sufficient airflow through the core, minimizing any adverse impact on engine coolant temperature.
  • To support higher power output, the tank inlet/outlet diameter has been increased from the stock φ45 to φ50.
  • In addition, the hoses have been upgraded from OEM 1-ply to reinforced 4-ply, improving durability and helping prevent hose damage or.
  • An HKS logo spray stencil is included, adding a subtle visual upgrade to the vehicle.





■Performance



Test Vehicle Specification
Vehicle GR YARIS Gen2 DAT
Engine 4BA-G16E
Intake System Normal
Exhaust System Super Turbo Muffler
Control System Normal
  Peak Power Comparison
HKS 196.5kW(267.2PS)
/6400rpm		 +3.6kW (4.8PS)
OEM 192.9kW(262.4PS)
/6400rpm

  Peak Torque Comparison
HKS 403.6Nm(41.1kgf・m)
/4280rpm		 +10.9Nm (1.1kgf・m)
OEM 392.7Nm(40.0kgf・m)
/4260rpm

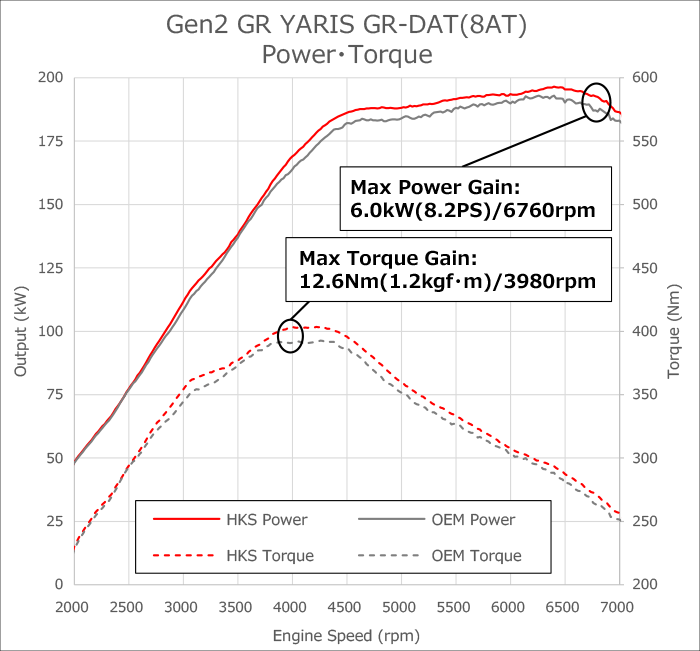

  • The power gain reaches 3.6 kW (4.8 PS) at the peak output point, and up to 6.0 kW (8.2 PS) at the RPM range where the difference is greatest, resulting in reduced high-RPM power loss compared to stock.







Test Vehicle Specification
Vehicle GR YARIS Gen2 DAT
Engine 4BA-G16E
Intake System COLD AIR INTAKE FULL KIT
Exhaust System Super Turbo Muffler
Control System Normal

*Test Venue: Fuji Speedway (Short Course)
*Ambient Temperature: 25–30°C







  Cooling Efficiency Comparison
HKS Intercooler 91.3％/6513rpm +18.1％Point
OEM Intercooler 73.2％/6519rpm

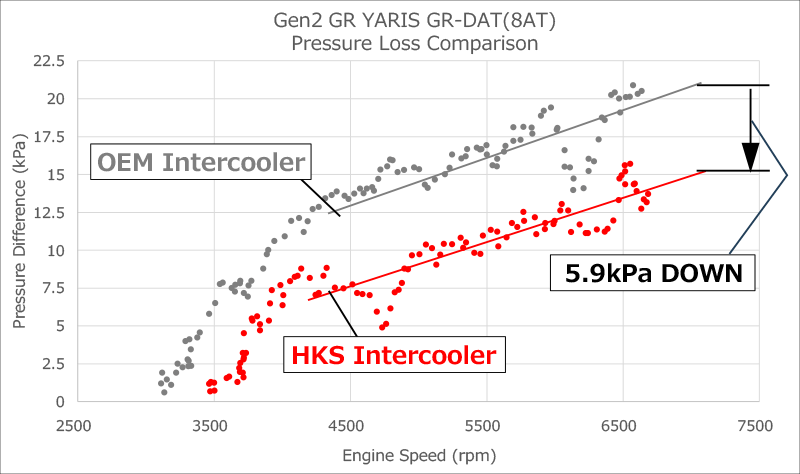

  • While the stock intercooler shows reduced cooling efficiency in the mid to high RPM range, the HKS intercooler maintains over 90% cooling efficiency across the entire RPM range. In addition, overall pressure loss is lower compared to the stock intercooler.





■Related Product

Product Product No. Remarks
WATER SPRAY BRACKET 13999-AT001 For vehicles equipped with the OEM intercooler water spray system
For vehicles fitted with the HKS intercooler kit







Vehicle Model Engine Model Year Type Core Size・Location Type Code No. Manual Remarks
GR YARIS GXPA16 G16E-GTS 24/04 - Bar and Plate L645×W205×H105・Front mount Stacked-core design 13001-AT011 ・Exclusive for GR-DAT (8-speed automatic) models
・Compatible with vehicles equipped with the Cooling Package and factory optional sub radiator
・When used together with the intercooler water spray system, the optional Water Spray Bracket (13999-AT001) is required
・Not compatible with HKS piping kits (13002-AT001 / AT002)
