POWER EDITOR VEHICLE SPECIFIC KIT CIVIC TYPE R Explanation of the product Application chart
CIVIC TYPE R FK8

Code No. 42018-AH002

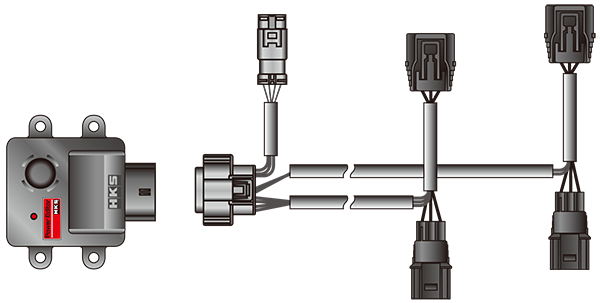

■Outline
  • Easy coupler-on installation to increase the boost pressure.
  • Boost pressure increase data is preset to Power Editor.
  • The reset connector is included. Connecting the connector can reset the data to its original after installing this product.
  • Boost pressure increase data is preset to Power Editor.
    ※ Easy Writer is NOT included in the product. Download Easy Writer from HKS website.
    ※The provided USB connecting harness is required to connect with a PC.









■Main Functions
  • Boost pressure increase for turbo vehicle:To increase the boost pressure of a stock vehicle.
  • Status Confirmation LED:To check the unit status by LED.
  • Edit the boost increase data: To edit the preset data to user's original data to increase the boost pressure.
    ※PC with Windows10, 8.1, 8, or 7 is required.





■Features

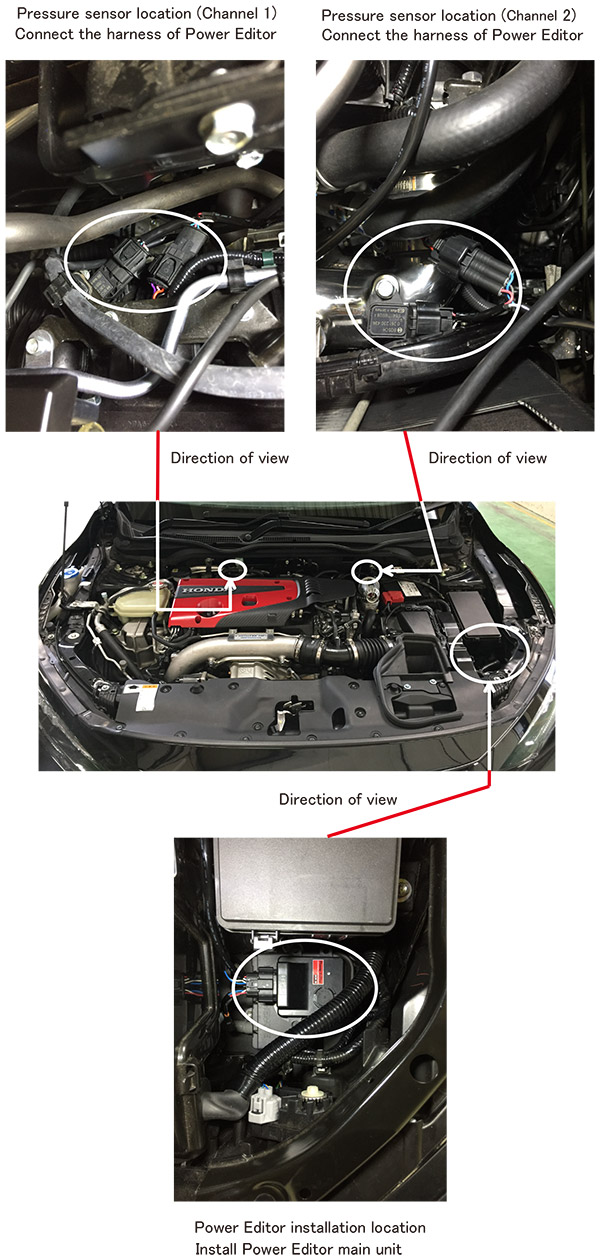

  • Installing this Power Editor between the pressure sensor and pressure sensor harness can activate the boost increase function of this product.
  • Easy Writer for Power Editor is available to edit the preset data.
    To edit by Easy Writer, connect Power Editor and PC using the provided USB harness.
  • Replacing Power Editor with the provided reset connector can reset the data to the original and easily check the difference.
  • Ideal for both MT & AT vehicle lightly tuned with aftermarket exhaust system, air cleaner, and/or catalyzer.




Easy Writer for Power Editor





■Preset Data

● HONDA CIVIC TypeR [FK8] (JDM)

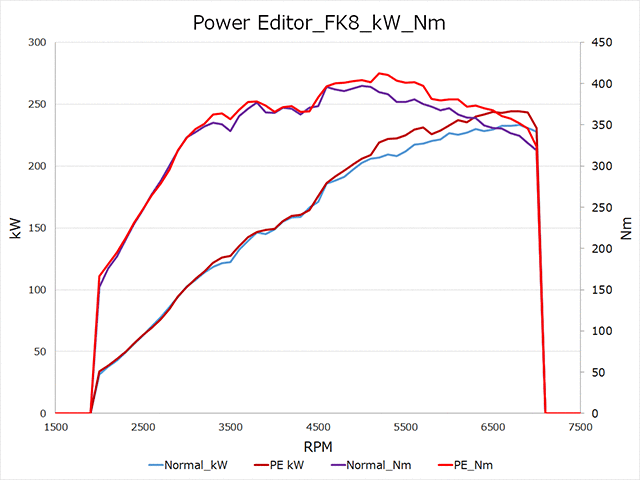

■Performance
Stock(Actual Value) 247.5kw (336.5ps) 435.5Nm (44.4kgf・m)
With Power Editor 259.2kW (352.5ps) 472.7Nm(48.2kgf・m)



Type-R has the engine with originally overwhelming engine output. With Power Editor, the torque increases over the entire speed range, and driving becomes more powerful.









■Note
  • This product is designed to be installed to a stock vehicle or vehicle that HKS products are installed.
  • This product is to increase the boost pressure of the vehicle with stock turbine and not designed to use with the vehicle the upgraded turbo.
  • This product is for a stock ECU data and not available to use with a customized data prepared by a ReFlash tool.

※Tuning ECU for MT model with "METAL CATALYZER" and/or "GT III-FX Turbine Kit" is under development. (Release will be 2019 Spring or later.)

Vehicle Classification Model Engine Model Year Code No. Price Remarks
CIVIC TYPE R   FK8 K20C 17/09- 42018-AH002 Compatible with 6MT model.
