POWER EDITOR VEHICLE SPECIFIC KIT
CROWN
Explanation of the product Application chart
CROWN ARS220

Code No. 42018-AT003










Power Editor is the next generation boost controller that enables the boost pressure increase of the vehicles equipped with the electriconic actuators.



Concept and Features:

  • Easy plug&play installation to increase boost pressure.
  • Power Editor comes preset with initial data.
  • Includes by-pass connector to easy revert your vehicle to stock.
  • Easy Writer for Power Editor to edit the data and fine tune boost pressure.





Easy Writer:

  • Easy Writer software is NOT included with the product.
  • Download Easy Writer from HKS website.
  • Please use provided USB cable to connect Power Editor with PC. (PC with Windows10, 8.1, 8, or 7 is require)





Initial settings:

● TOYOTA CROWN [ARS220] (JDM Model)

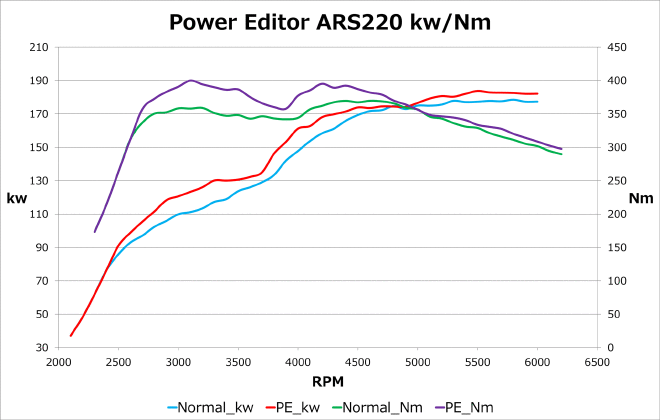

Stock: 178.5kw (242.7ps) 369.7Nm (37.7kgf・m)
Power Editor: 183.7kw (249.8ps) 399.8Nm (40.8kgf・m)
Boost: 118kPa (1.2kgf/cm2) → 137kPa (1.4kgf/cm2)

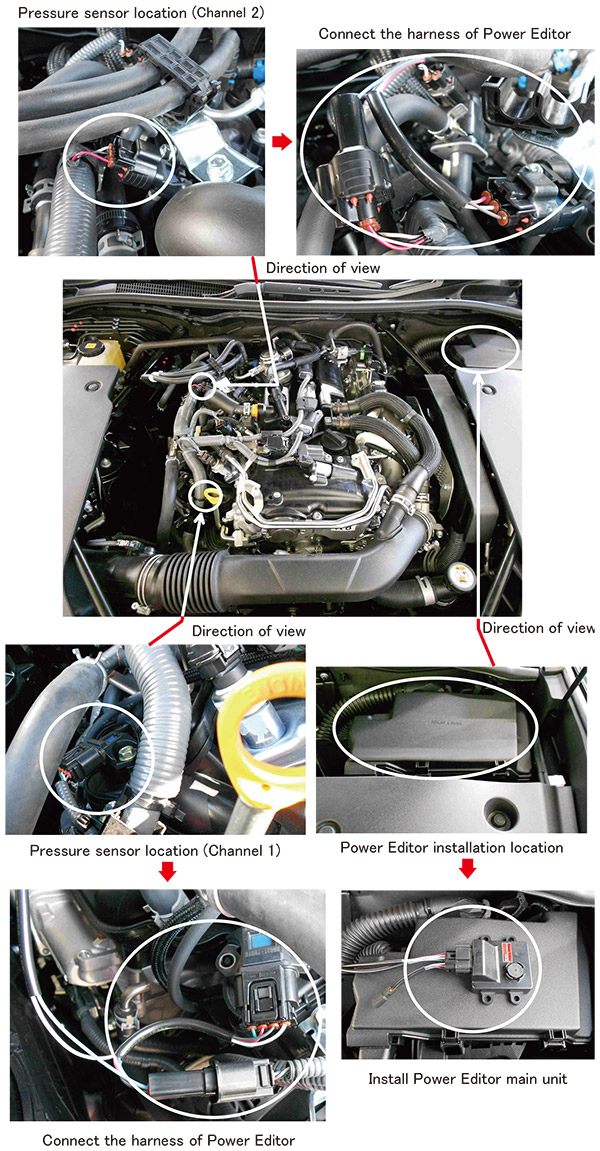

Recommended Power Editor installation location and Pressure sensor location:



Note:

  • This product is designed to be installed to a stock vehicle or vehicle that HKS products are installed.
  • This product is for a stock ECU data and not available to use with a customized data prepared by a ReFlash tool.



Vehicle Classification Model Engine Model Year Code No. Manual Remarks
CROWN 3BA- ARS220 8AR-FTS 18/06 - 42018-AT003 * To be discontinued.
