POWER EDITOR VEHICLE SPECIFIC KIT
RC200t
Explanation of the product Application chart
RC200t ASC10

Code No. 42018-AT006







Power Editor is the next generation boost controller that enables the boost pressure increase of the vehicles equipped with the electriconic actuators.



■Concept and Features

  • Easy plug&play installation to increase boost pressure.
  • Power Editor comes preset with initial data.

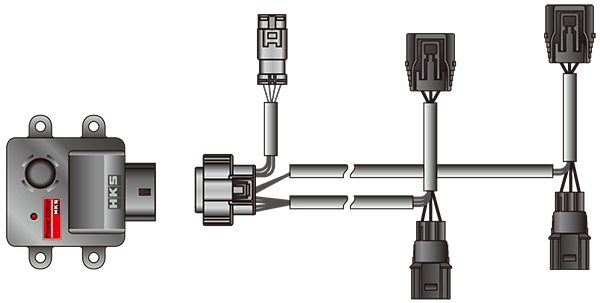

  • Includes by-pass connector to easy revert your vehicle to stock.
  • Easy Writer for Power Editor to edit the data and fine tune boost pressure.





■Easy Writer

  • Easy Writer software is NOT included with the product.
  • Download Easy Writer from HKS website.
  • Please use provided USB cable to connect Power Editor with PC. (PC with Windows10, 8.1, 8, or 7 is require)



■Initial settings

● LEXUS RC200t [ASC10] (JDM Model)

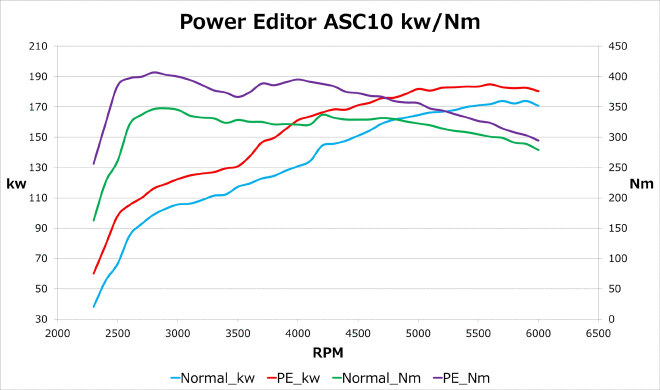

Stock 173.8kw (236.3ps) 347.6Nm (35.4kgf・m)
 Power Editor 184.8kw (251.2ps) 406.6Nm (41.5kgf・m)
Boost 118kPa (1.2kgf/cm2) → 137kPa (1.4kgf/cm2)

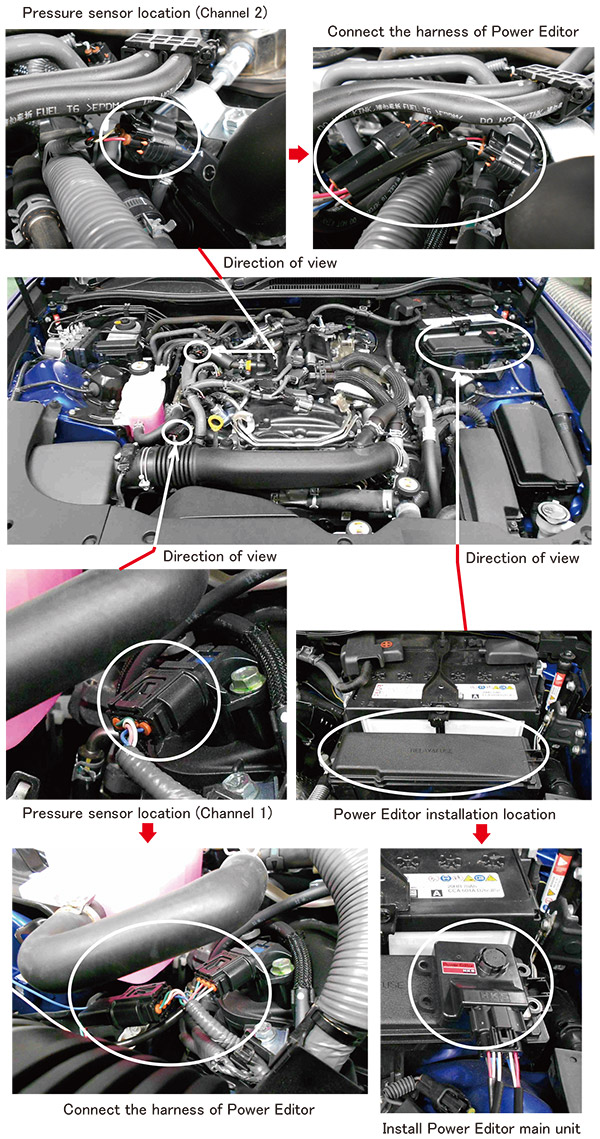

■Recommended Power Editor installation location and Pressure sensor location



■Note

  • This product is designed to be installed to a stock vehicle or vehicle that HKS products are installed.
  • This product is for a stock ECU data and not available to use with a customized data prepared by a ReFlash tool.





Vehicle Classification Model Engine Model Year Code No. Manual Remarks
RC200t DBA- ASC10 8AR-FTS 15/09 -17/10 42018-AT006 * To be discontinued.
