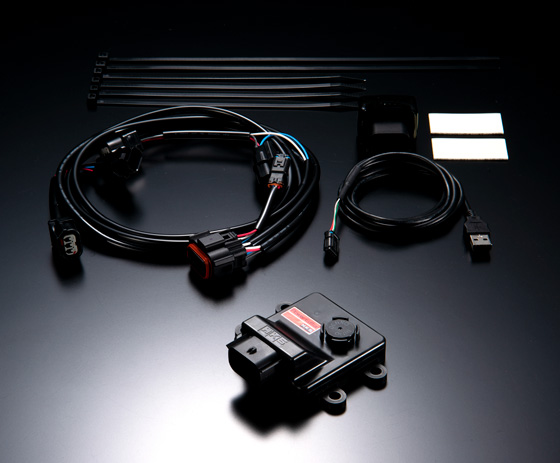

POWER EDITOR VEHICLE SPECIFIC KIT
COROLLA SPORT
COROLLA SPORT NRE210H

Code No. 42018-AT004










Power Editor is the next generation boost controller that enables the boost pressure increase of the vehicles equipped with the electriconic actuators.





Concept and Features:

Easy plug&play installation to increase boost pressure.
Power Editor comes preset with initial data.

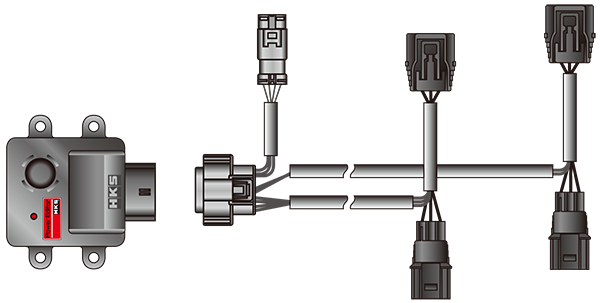

Includes by-pass connector to easy revert your vehicle to stock.
Easy Writer for Power Editor to edit the data and fine tune boost pressure.





Easy Writer:

Easy Writer software is NOT included with the product.
Download Easy Writer from HKS website.
Please use provided USB cable to connect Power Editor with PC.
(PC with Windows is require)





Initial settings:

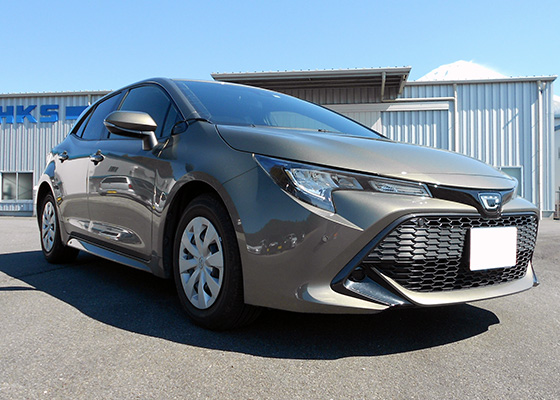

TOYOTA COROLLA SPORT [NRE210] (JDM Model)

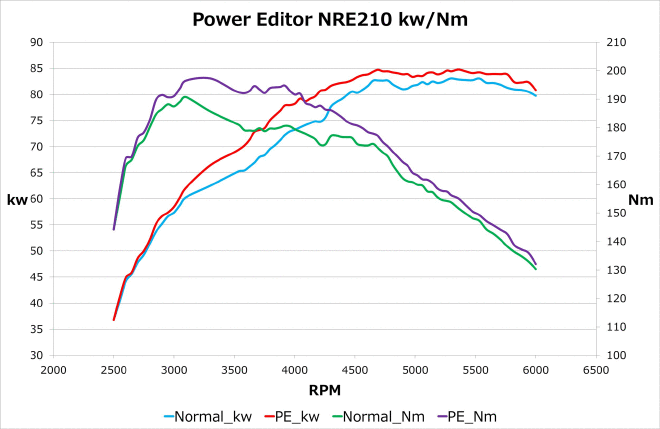

Stock : 83.1kw(113.0PS) Power and 190.7Nm(19.4kg-m) Torque
Power Editor : 84.8kw(115.3PS) Power and 197.3Nm(20.1kg-m) Torque
Boost : 108kPa (1.1kgf/cm2) → 118kPa (1.2kgf/cm2)

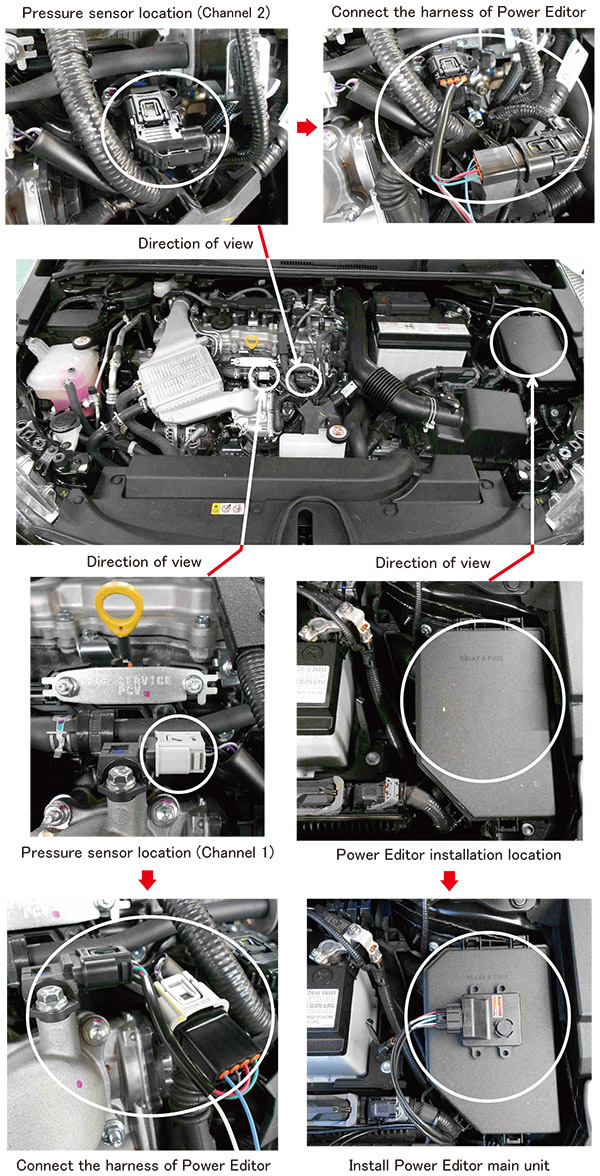

Recommended Power Editor installation location and Pressure sensor location:



Note:

  • This product is designed to be installed to a stock vehicle or vehicle that HKS products are installed.
  • This product is for a stock ECU data and not available to use with a customized data prepared by a ReFlash tool.



Vehicle Classification Model Engine Model Year Code No. Manual Remarks
COROLLA SPORT 3BA- NRE210H 8NR-FTS 18/06 - 42018-AT004 Make to order item
Compatible with CVT, 6M.
