POWER EDITOR VEHICLE SPECIFIC KIT
C-HR
C-HR NGX50

Code No. 42018-AT007





Power Editor is the boost controller that enables the boost pressure increase of the vehicles equipped with electric actuators.







■Outline

  • Easy plug and play installation to increase the boost pressure.
  • Boost pressure increase data is preset to Power Editor.
  • A bypass connector is included. It allows to bypass the unit even after connecting this kit.
  • Easy Writer for Power Editor can edit the preset data.

Note: Easy Writer is NOT included in the product. Download "Easy Writer" software from HKS official website. (Freeware) Use provided USB cable to connect to computer.



■Main Functions

  • Boost pressure increase for turbo vehicle: Increasing the boost pressure of a stock vehicle.
  • Status indicating LED: Checking the unit status by LED.
  • Edit the boost increase data: Editing the preset data to the user's original data to increase the boost pressure. Note: PC with Windows 10, 8.1, 8, or 7 is required.


Easy Writer for Power Editor

Download "Easy Writer" software from HKS official website. (Freeware)



■Preset Data

● TOYOTA C-HR [NGX50] (JDM Spec)



■Performance

TOYOTA CH-R Stock Power Editor
Maximum Output 82.2kw (111.8ps) 86.9kw (118.2ps)
Maximum Torque 188.9Nm (19.3kgf・m) 208.6Nm (21.3kgf・m)
Maximum Boost Pressure 123kPa (1.25kgf/cm2) 137kPa (1.4kgf/cm2)

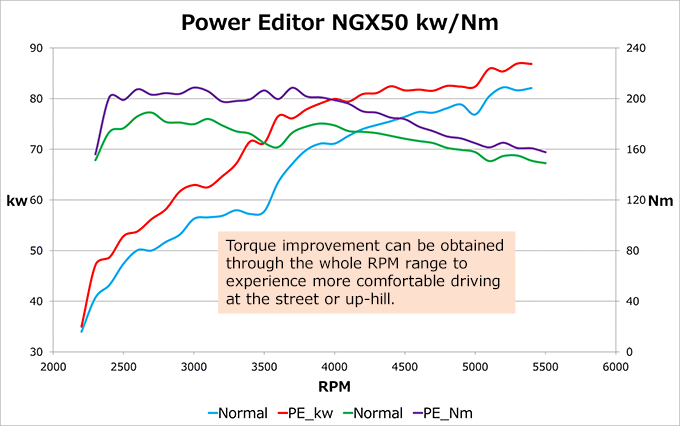

■Graph

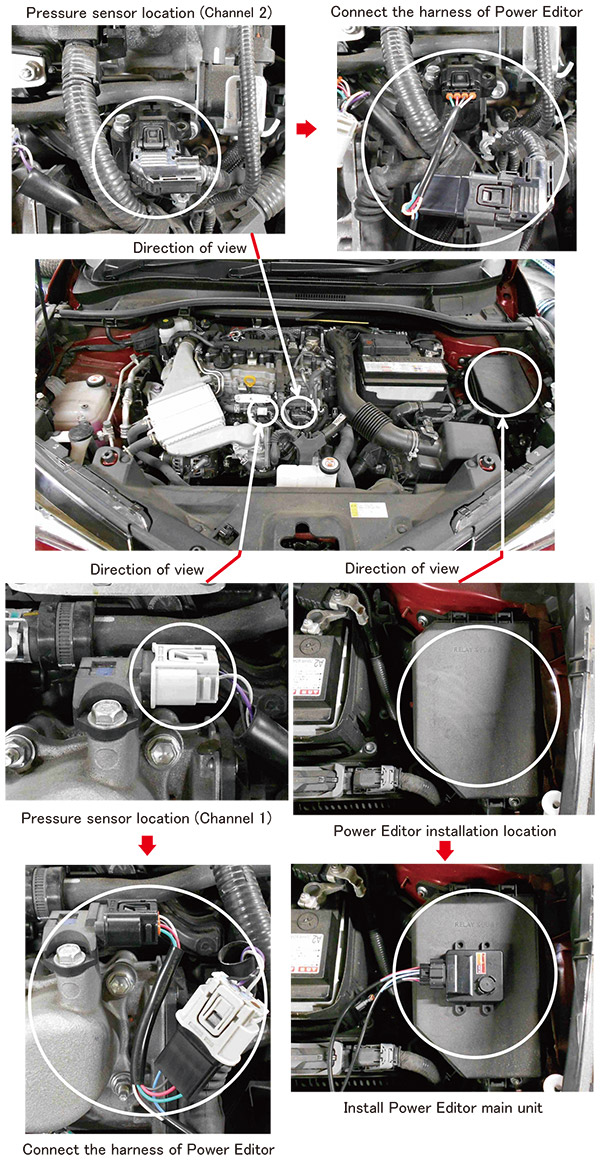

■Recommended Power Editor installation location and Pressure sensor location



■Note

  • This product is applicable to a stock vehicles and vehicles equipped with HKS products.
  • This product is for a stock ECU data and not available to use with a customized data prepared by a ReFlash tool.



Vehicle Classification Model Engine Model Year Code No. Manual Remarks
C-HR DBA-, 3BA- NGX50 8NR-FTS 16/12 - 42018-AT007 Make to order item
