■Outline

• Easy coupler-on installation to increase the boost pressure.
• Boost pressure increase data is preset to Power Editor.
• The reset connector is included. Connecting the connector can reset the data to its original after installing this product.
• Boost pressure increase data is preset to Power Editor.
  ※ Easy Writer is NOT included in the product. Download Easy Writer from HKS website.
  ※The provided USB connecting harness is required to connect with a PC.

■Main Functions

• Boost pressure increase for turbo vehicle：To increase the boost pressure of a stock vehicle.
• Status Confirmation LED：To check the unit status by LED.
• Edit the boost increase data:To edit the preset data to user's original data to increase the boost pressure.
  ※PC with Windows10, 8.1, 8, or 7 is required.

■Features

• Installing this Power Editor between the pressure sensor and pressure sensor harness can activate the boost increase function of this product.
• Easy Writer for Power Editor is available to edit the preset data. To edit by Easy Writer, connect Power Editor and PC using the provided USB harness.
• Replacing Power Editor with the provided reset connector can reset the data to the original and easily check the difference.

Easy Writer for Power Editor

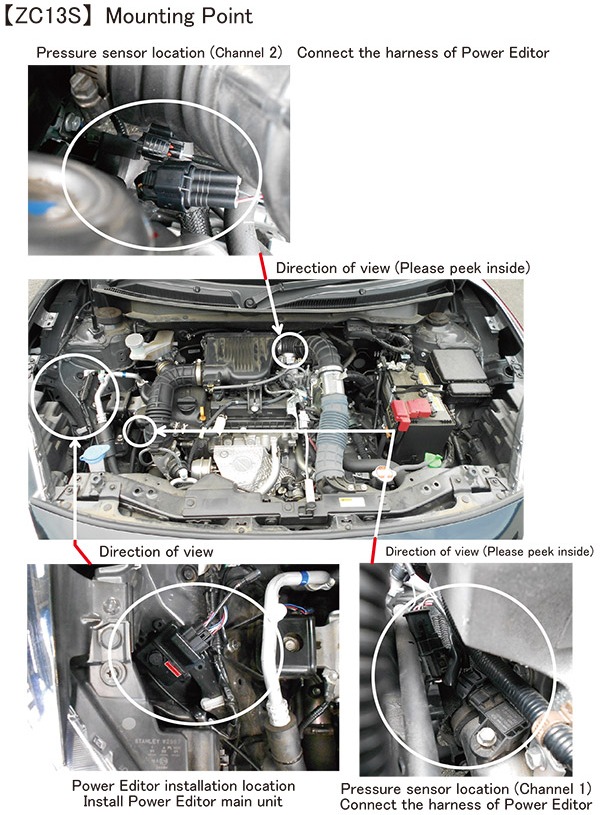

■Recommended Power Editor installation location and Pressure sensor location
