POWER EDITOR VEHICLE SPECIFIC KIT
NX200t
Explanation of the product Application chart
NX200t AGZ10

Code No. 42018-AT009

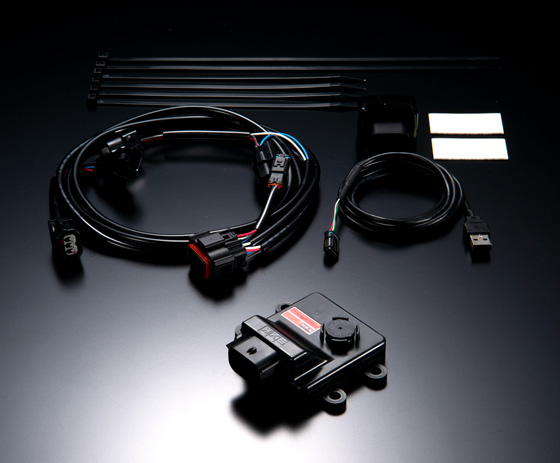

Power Editor for LEXUS NX200t [AGZ10]








Power Editor is the next generation boost controller that enables the boost pressure increase of the vehicles equipped with the electriconic actuators.



■Concept and Features

  • Easy plug&play installation to increase boost pressure.
  • Power Editor comes preset with initial data.

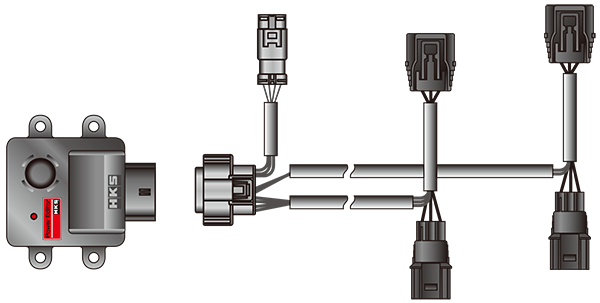

  • Includes by-pass connector to easy revert your vehicle to stock.
  • Easy Writer for Power Editor to edit the data and fine tune boost pressure.





■Easy Writer

  • Easy Writer software is NOT included with the product.
  • Download Easy Writer from HKS website.
  • Please use provided USB cable to connect Power Editor with PC. (PC with Windows10, 8.1, 8, or 7 is require)

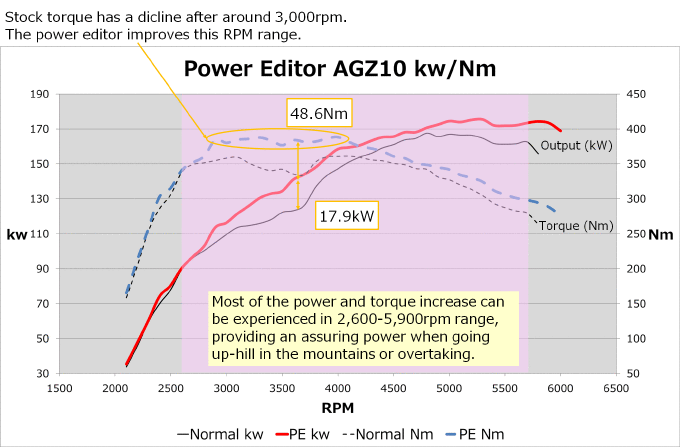

  Stock Power Editor
Power increase － 17.9kW(24.2PS) / 3600rpm
Torque increase － 48.6Nm(5.0kgf・m) / 3600rpm
Power 167.5kW(227.8PS) / 4800rpm 175.4kW(238.5PS) / 5300rpm
Torque 361.1Nm(36.8kgf・m) / 4100rpm 388.5Nm(39.6kgf・m) / 4000rpm
Boost 125.5kPa (1.28kgf/cm2) 132.4kPa (1.35kgf/cm2)

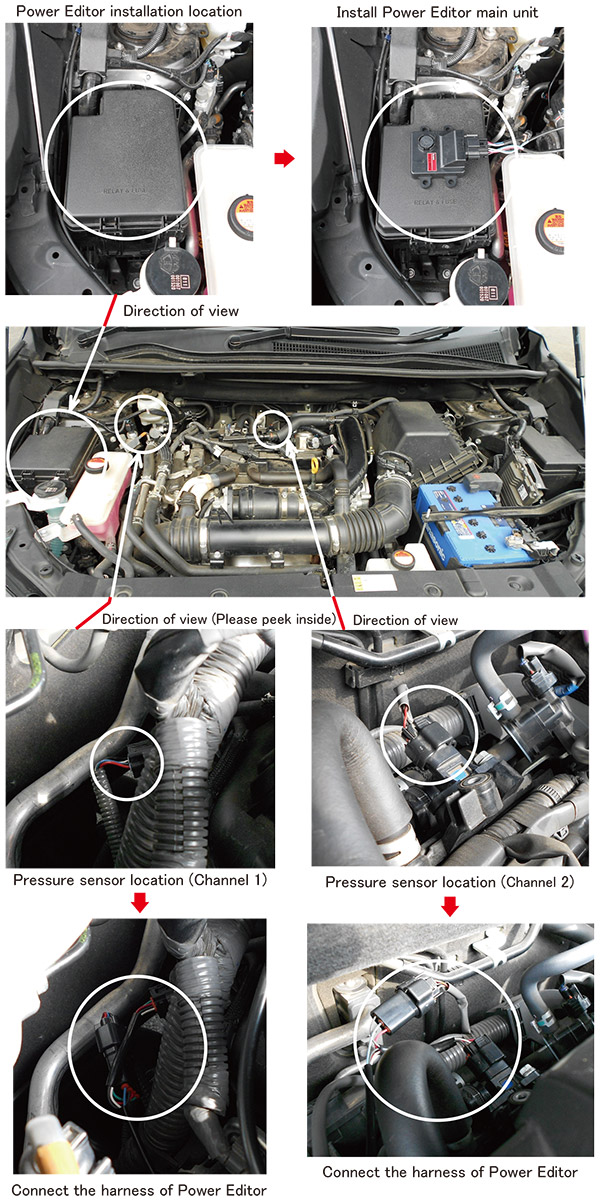

■Recommended Power Editor installation location and Pressure sensor location



■CAUTION

  • Comes preset for Japanese Domestic Market.
  • For ECU with stock data only, reflashed ECU are not supported.





Vehicle Classification Model Engine Model Year Code No. Manual Remarks
NX200t DBA- AGZ10 8AR-FTS 14/07 -17/09 42018-AT009 * To be discontinued.
