POWER EDITOR VEHICLE SPECIFIC KIT
RX200t
Explanation of the product Application chart
RX200t AGL25W

Code No. 42018-AT010





Power Editor for LEXUS RX200t [AGL25W]








Power Editor is the next generation boost controller that enables the boost pressure increase of the vehicles equipped with the electriconic actuators.



■Concept and Features

  • Easy plug&play installation to increase boost pressure.
  • Power Editor comes preset with initial data.
  • Includes by-pass connector to easy revert your vehicle to stock.
  • Easy Writer for Power Editor to edit the data and fine tune boost pressure.



■Easy Writer

  • Easy Writer software is NOT included with the product.
  • Download Easy Writer from HKS website.
  • Please use provided USB cable to connect Power Editor with PC. (PC with Windows is require)

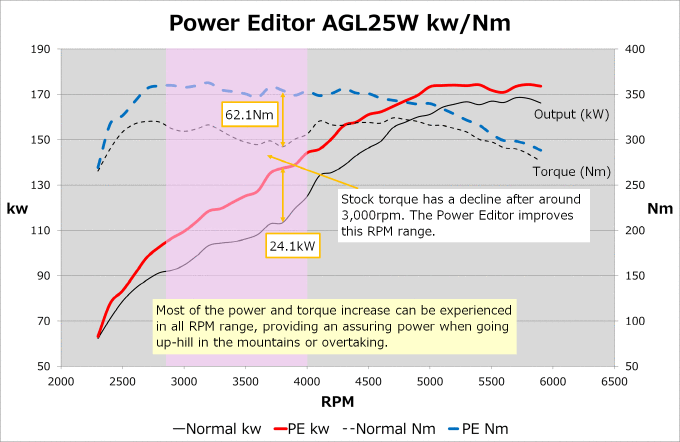

  Stock Power Editor
Power increase － 24.1kW(32.7PS)/3800rpm
Torque increase － 62.1Nm(6.3kgf・m)/3800rpm
Power 168.6kW(229.2PS)/5700rpm 174.3kW(237.0PS)/5800rpm
Torque 324.2Nm(33.1kgf・m)/4700rpm 362.9Nm(37.0kgf・m)/3200rpm
Boost 108kPa(1.10kgf/cm2) 128.5kPa(1.31kgf/cm2)

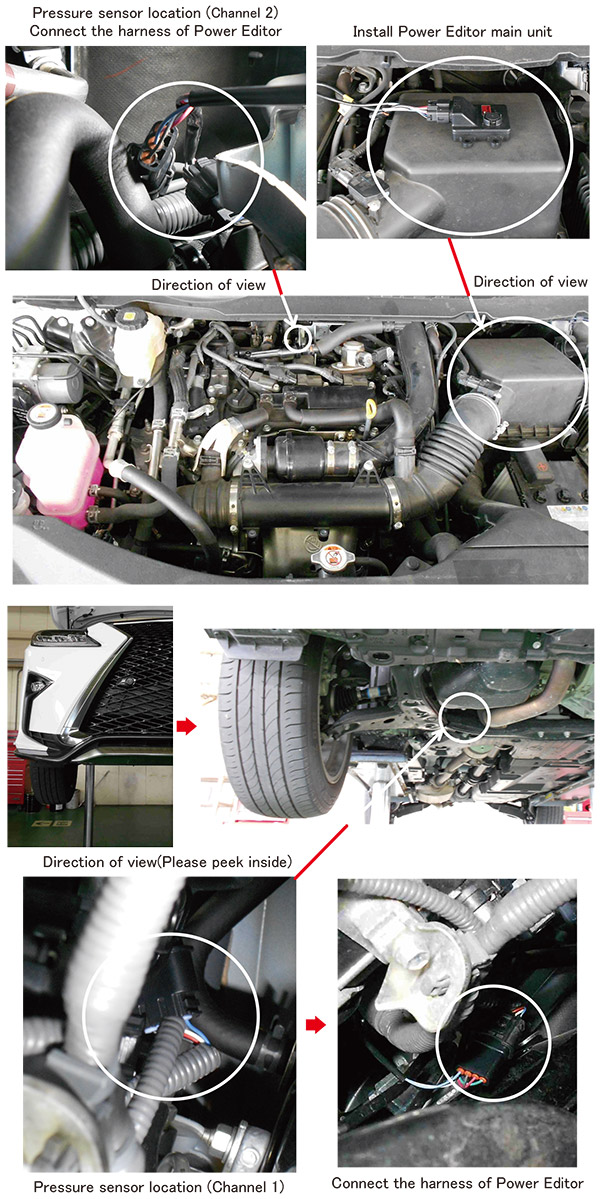

■Recommended Power Editor installation location and Pressure sensor location



■CAUTION

  • Comes preset for Japanese Domestic Market.
  • For ECU with stock data only, reflashed ECU are not supported.





Vehicle Classification Model Engine Model Year Code No. Manual Remarks
RX200t DBA- AGL25W 8AR-FTS 15/10 -17/12 42018-AT010 * To be discontinued.
