POWER EDITOR VEHICLE SPECIFIC KIT
GS200t
Explanation of the product Application chart
GS200t ARL10

Code No. 42018-AT011





POWER EDITOR for GS200t [ARL10]








Power Editor is the next generation boost controller that enables the boost pressure increase of the vehicles equipped with the electriconic actuators.



■Concept and Features

  • Easy plug&play installation to increase boost pressure.
  • Power Editor comes preset with initial data.
  • Includes by-pass connector to easy revert your vehicle to stock.
  • Easy Writer for Power Editor to edit the data and fine tune boost pressure.





■Easy Writer

  • Easy Writer software is NOT included with the product.
  • Download Easy Writer from HKS website.
  • Please use provided USB cable to connect Power Editor with PC.
    (PC with Windows10, 8.1, 8, or 7 is require)

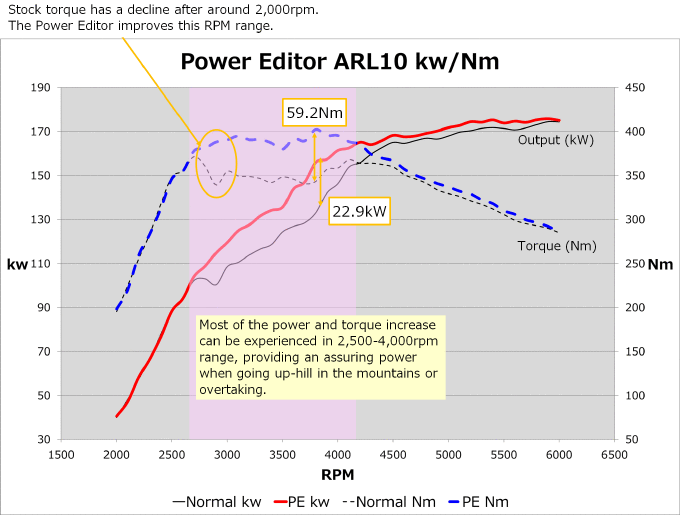

  Stock Power Editor
Power increase － 22.9kW(31.2PS)/3900rpm
Torque increase － 59.2Nm(6.0kgf・m)/3800rpm
Power 174.5kW(237.2PS)/5900rpm 175.8kW(239.0PS)/5900rpm
Torque 371.2Nm(37.9kgf・m)/2700rpm 402.3Nm(41.0kgf・m)/3800rpm
Boost 124kPa(1.26kgf/cm2) 137kPa(1.4kgf/cm2)

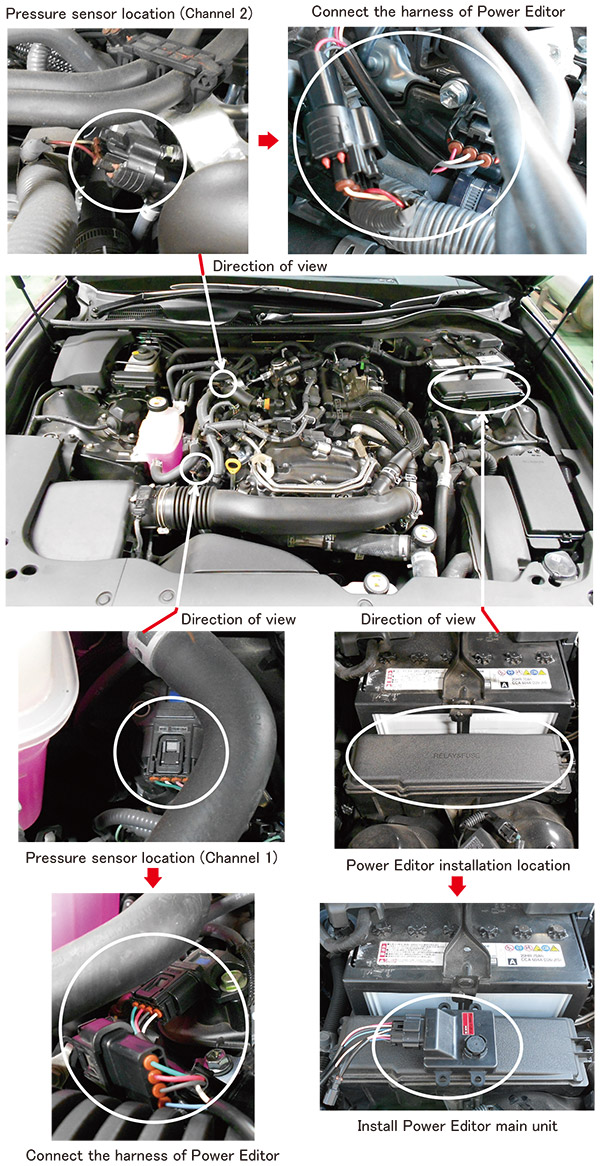

■Recommended Power Editor installation location and Pressure sensor location



■CAUTION

  • Comes preset for Japanese Domestic Market.
  • For ECU with stock data only, reflashed ECU are not supported.



Vehicle Classification Model Engine Model Year Code No. Manual Remarks
GS200t DBA- ARL10 8AR-FTS 16/09 -17/08 42018-AT011 * To be discontinued.
